Pulse train example
The SMU programming example below illustrates how to use two timers: One to control the pulse
period, a second to control the pulse width. The example configures the timers and SMU as follows:
Timer 1: Pulse period timer
•
Set the delay attribute to the appropriate pulse period (see the following figure).
•
Configure the timer to start when the sweep is initiated.
•
Enable the pass-through attribute so that the timer generates a trigger event at the start of the
first delay.
•
Set the count equal to one less than the total number of pulses to output.
Timer 2: Pulse width timer
•
Set the delay attribute to an appropriate pulse width (see the following figure).
•
Set the stimulus input to the event ID of timer 1 (the start of each pulse is the start of the pulse
period).
•
Set the count equal to 1 so that only one pulse is issued per period.
SMU A
•
Set the source stimulus input to the event ID of timer 1 so that the source action starts when the
period starts.
•
Set the end pulse action to smua.SOURCE_IDLE so that the output is returned to the idle level
after the pulse completes.
•
Set the end pulse stimulus input to the event ID of timer 2 so that the end pulse action executes
when the pulse width timer expires.
3-54
Model 2651A High Power System SourceMeter® Instrument Reference Manual

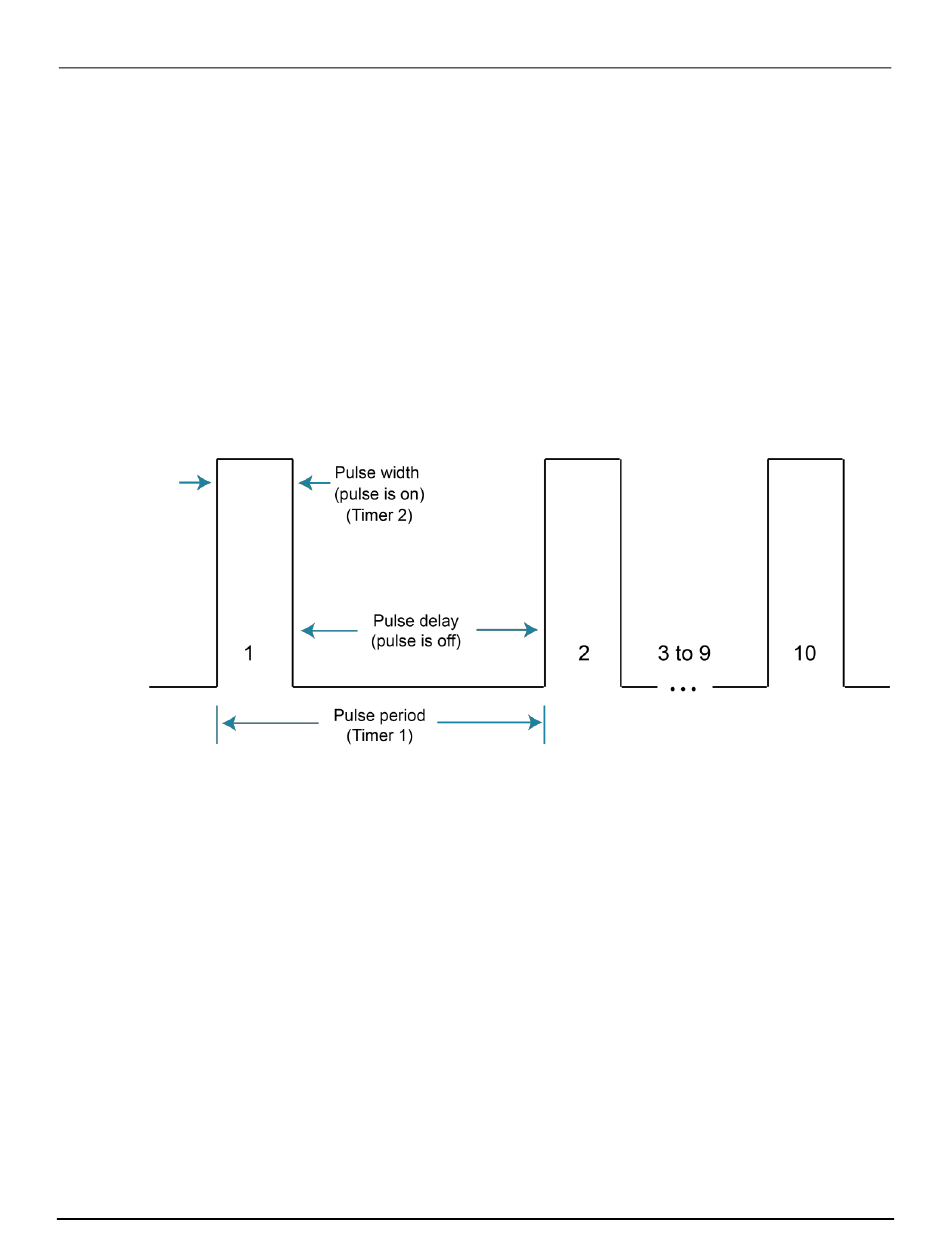

Figure 53: Pulse train
