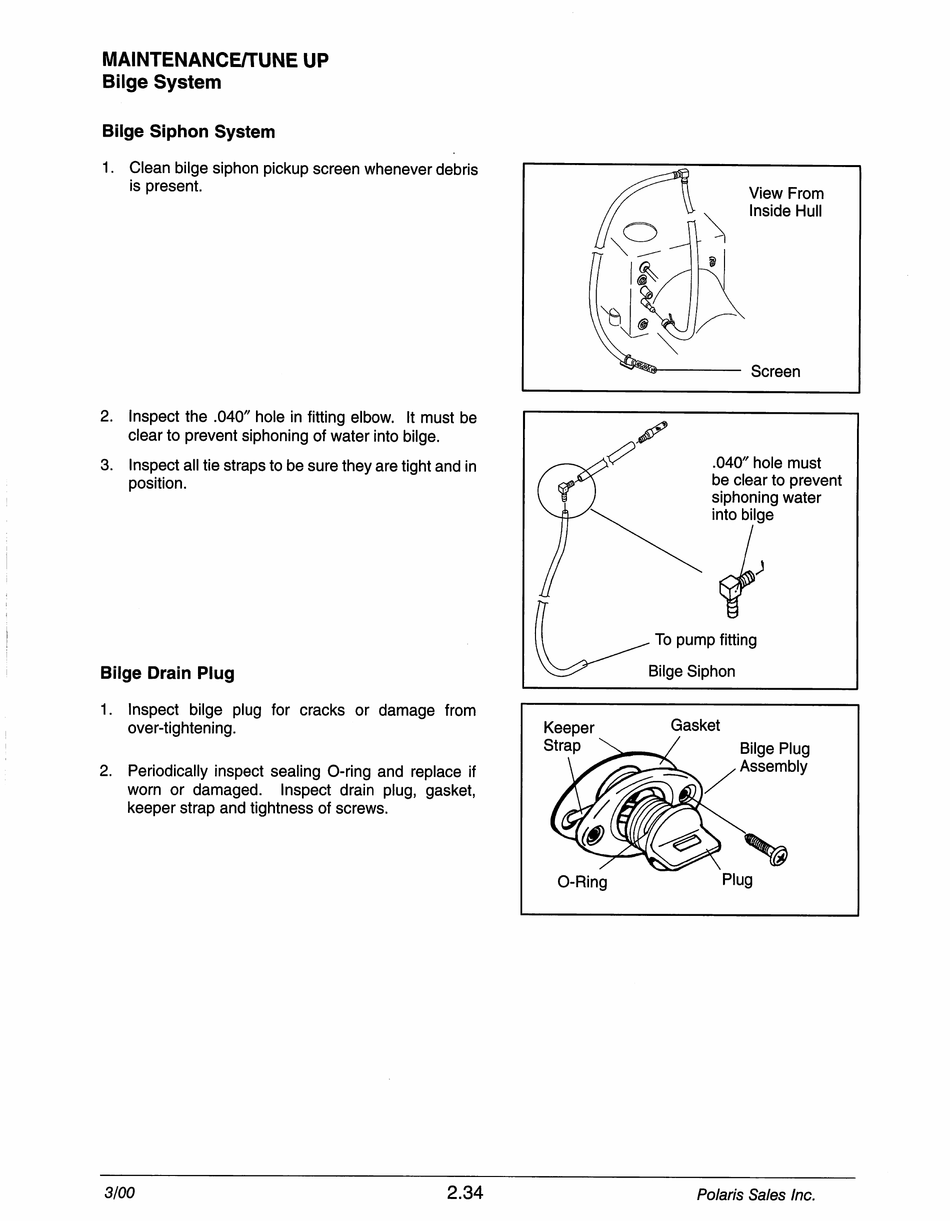

MAINTENANCE/TUNE UP
Bilge System
Bilge Siphon System
1. Clean bilge siphon pickup screen whenever debris
is present.
2. Inspect the .040" hole in fitting elbow. It must be
clear to prevent siphoning of water into bilge.
3. Inspect all tie straps to be sure they are tight and in
position.
Bilge Drain Plug
1. Inspect bilge plug for cracks or damage from
over-tightening.
2. Periodically inspect sealing O-ring and replace if
worn or damaged. Inspect drain plug, gasket,
keeper strap and tightness of screws.
View From
Inside Hull
Screen
.040" hole must
be clear to prevent
siphoning water
into bilge
To pump fitting
Bilge Siphon
Keeper
Strap
Gasket
Bilge Plug
Assembly
O-Ring
3/00
2.34
