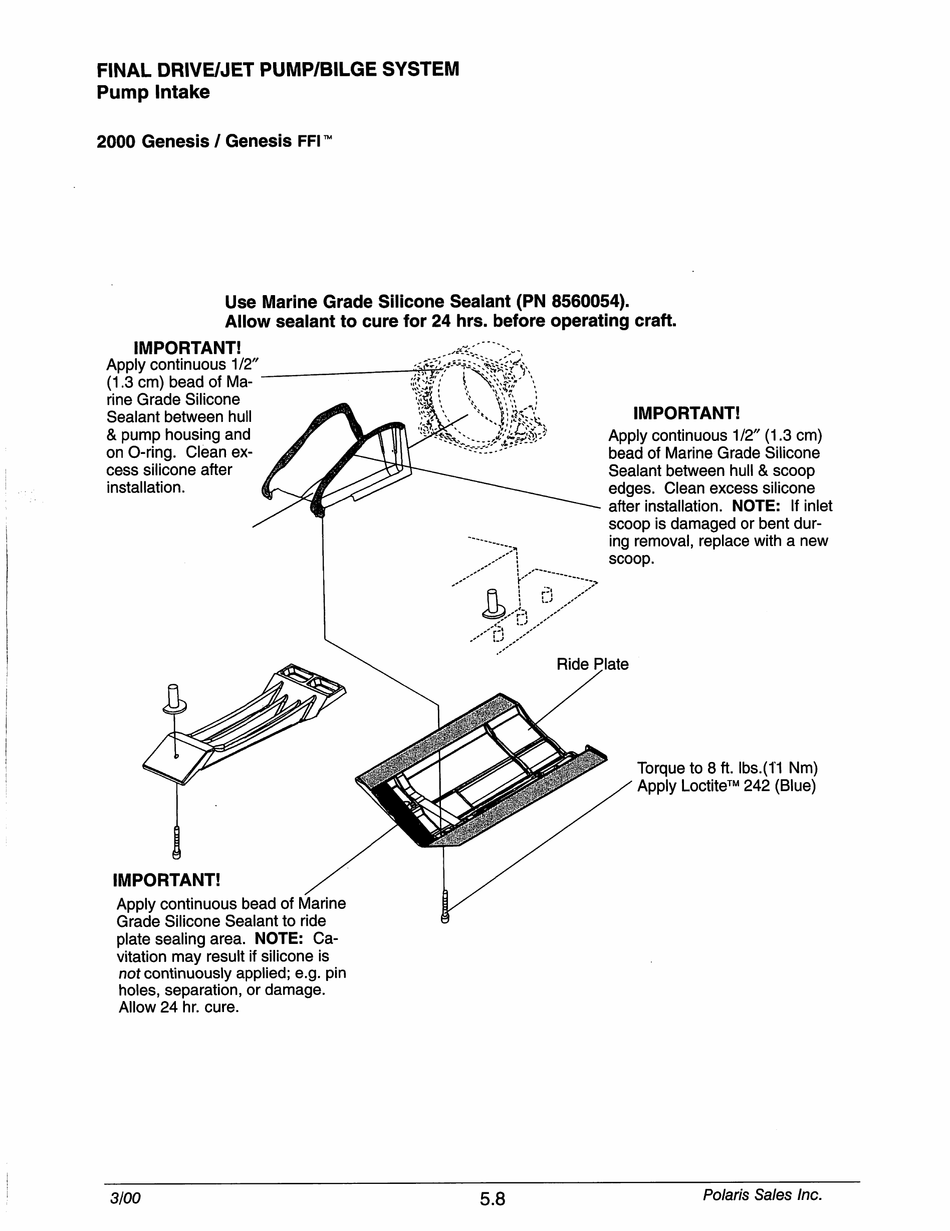

FINAL DRIVE/JET PUMP/BILGE SYSTEM
Pump Intake
2000 Genesis / Genesis FFI™
Use Marine Grade Silicone Sealant (PN 8560054).
Allow sealant to cure for 24 hrs. before operating craft.
IMPORTANT!
Apply continuous 1/2"
(1.3 cm) bead of Ma
rine Grade Silicone
Sealant between hull
& pump housing and
on O-ring. Clean ex
cess silicone after
installation.
IMPORTANT!
Apply continuous 1/2" (1.3 cm)
bead of Marine Grade Silicone
Sealant between hull & scoop
edges. Clean excess silicone
after installation. NOTE: If inlet
scoop is damaged or bent dur
ing removal, replace with a new
scoop.
Torque to 8 ft. lbs.(T1 Nm)
Apply Loctite™ 242 (Blue)
IMPORTANT!
Apply continuous bead of Marine
Grade Silicone Sealant to ride
plate sealing area. NOTE: Ca-
vitation may result if silicone is
not continuously applied; e.g. pin
holes, separation, or damage.
Allow 24 hr. cure.
3100 5.8
