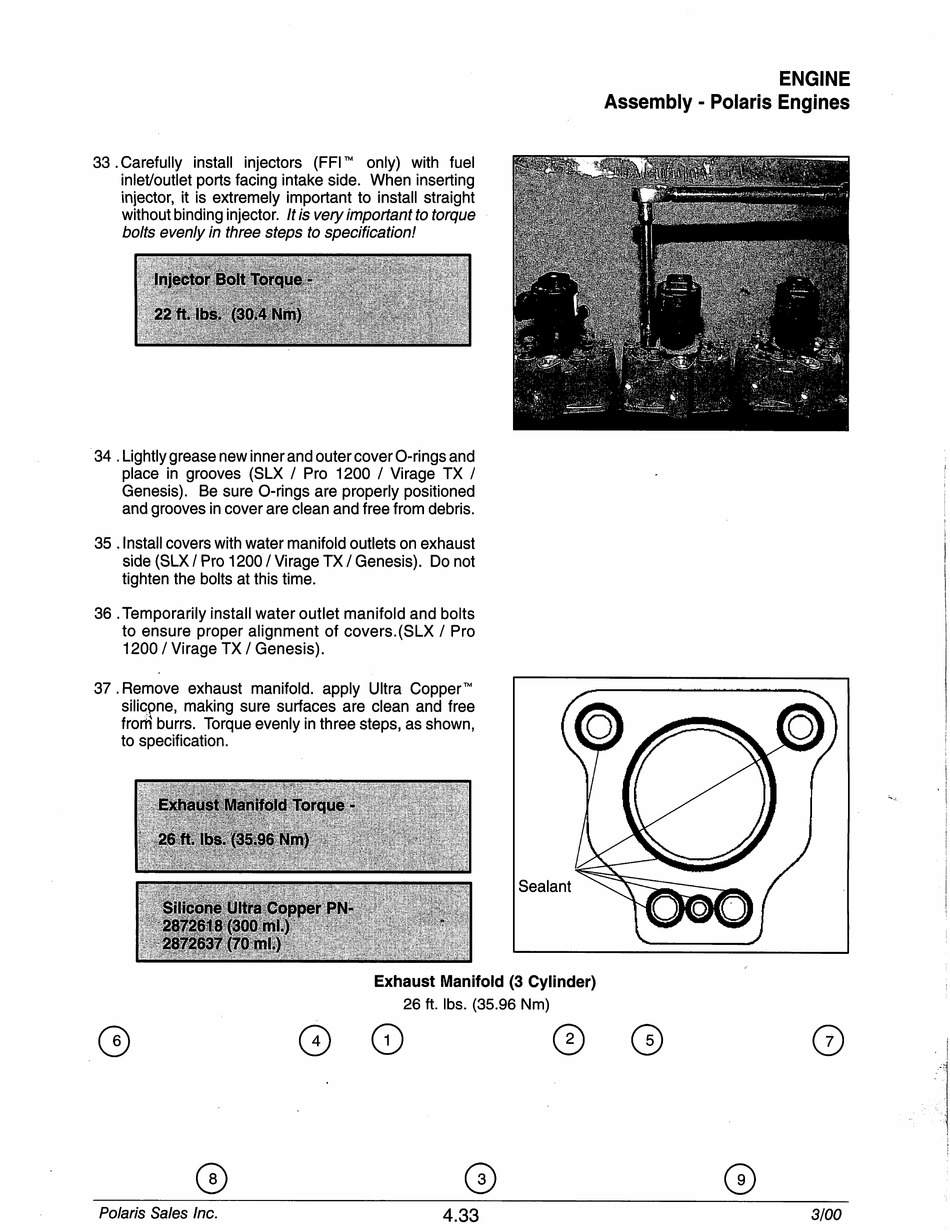

Polaris Virage TX 2000 Service Manual page 144

ENGINE
Assembly - Polaris Engines
33.Carefully install injectors (FFI™ only) with fuel
inlet/outlet ports facing intake side. When inserting
injector, it is extremely important to install straight
without binding injector. It is very important to torque
bolts evenly in three steps to specification I
34 . Lightly grease new inner and outer cover O-rings and
place in grooves (SLX / Pro 1200 / Virage TX /
Genesis). Be sure O-rings are properly positioned
and grooves in cover are clean and free from debris.
35 . Install covers with water manifold outlets on exhaust
side (SLX / Pro 1200 / Virage TX / Genesis). Do not
tighten the bolts at this time.
36 .Temporarily install water outlet manifold and bolts
to ensure proper alignment of covers.(SLX / Pro
1200 / Virage TX / Genesis).
37.Remove exhaust manifold, apply Ultra Copper™
silicpne, making sure surfaces are clean and free
fronh burrs. Torque evenly in three steps, as shown,
to specification.
Exhaust Manifold (3 Cylinder)
26 ft. lbs. (35.96 Nm)
0 ©
©
Polaris Sales Inc.
4.33
3/00
