Polaris Virage TX 2000 Service Manual page 324

DIAGNOSTIC SOFTWARE

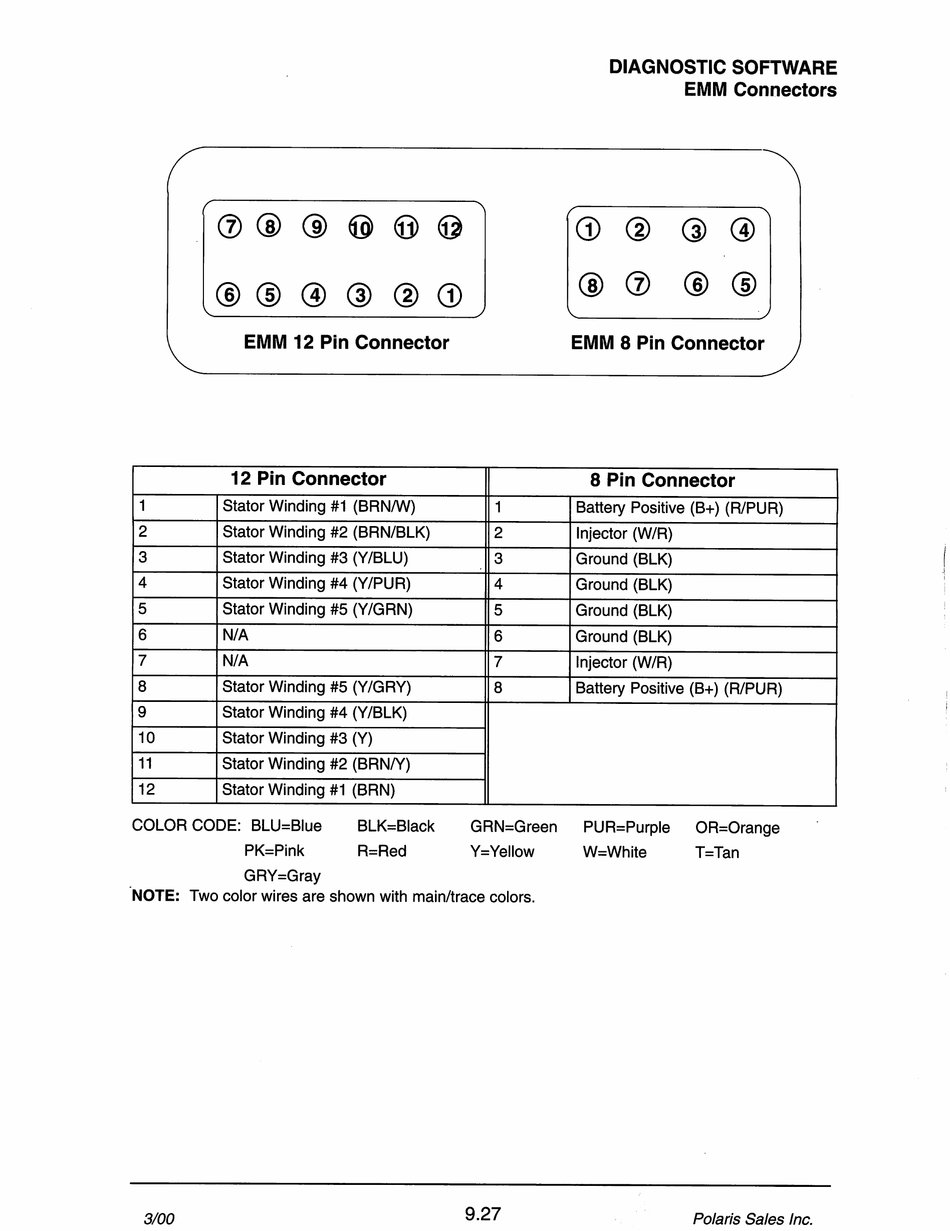

EMM Connectors
EMM 12 Pin Connector
EMM 8 Pin Connector
COLOR CODE: BLU=Blue BLK=Black GRN=Green PUR=Purple OR=Orange
PK=Pink R=Red Y=Yellow W=White T=Tan
GRY=Gray
NOTE: Two color wires are shown with main/trace colors.
