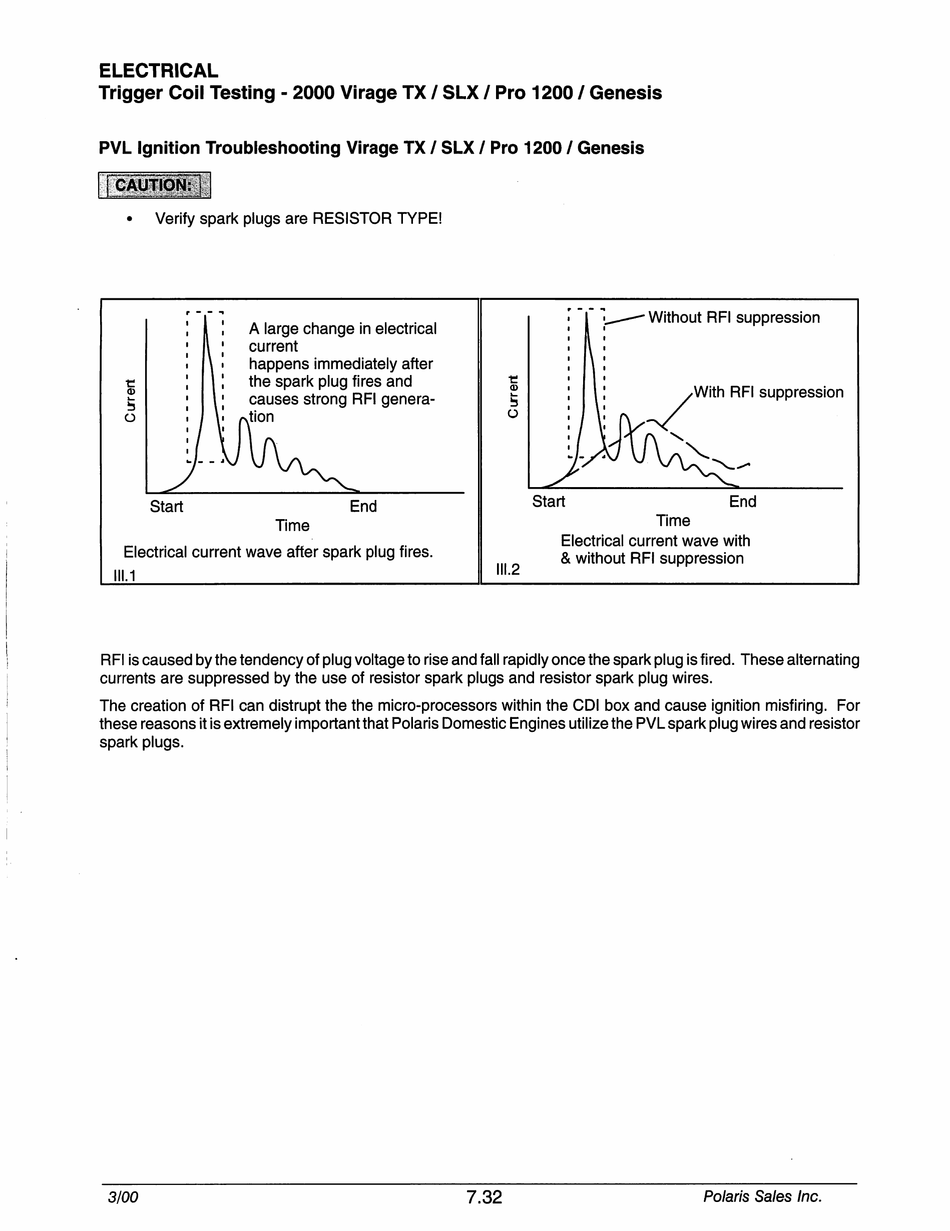

ELECTRICAL
Trigger Coil Testing - 2000 Virage TX / SLX / Pro 1200 / Genesis
PVL Ignition Troubleshooting Virage TX / SLX / Pro 1200 / Genesis
Verify spark plugs are RESISTOR TYPE!
Start
A large change in electrical
current
happens immediately after
the spark plug fires and
causes strong RFI genera-
lion
End
Time
Electrical current wave after spark plug fires.
11.1
o
Without RFI suppression
With RFI suppression
II.2
Start End
Time
Electrical current wave with
& without RFI suppression
RFI is caused by the tendency of plug voltage to rise and fall rapidly once the spark plug is fired. These alternating
currents are suppressed by the use of resistor spark plugs and resistor spark plug wires.
The creation of RFI can distrupt the the micro-processors within the CDI box and cause ignition misfiring. For
these reasons it is extremely important that Polaris Domestic Engines utilize the PVL spark plug wires and resistor
spark plugs.
