Polaris Virage TX 2000 Service Manual page 201

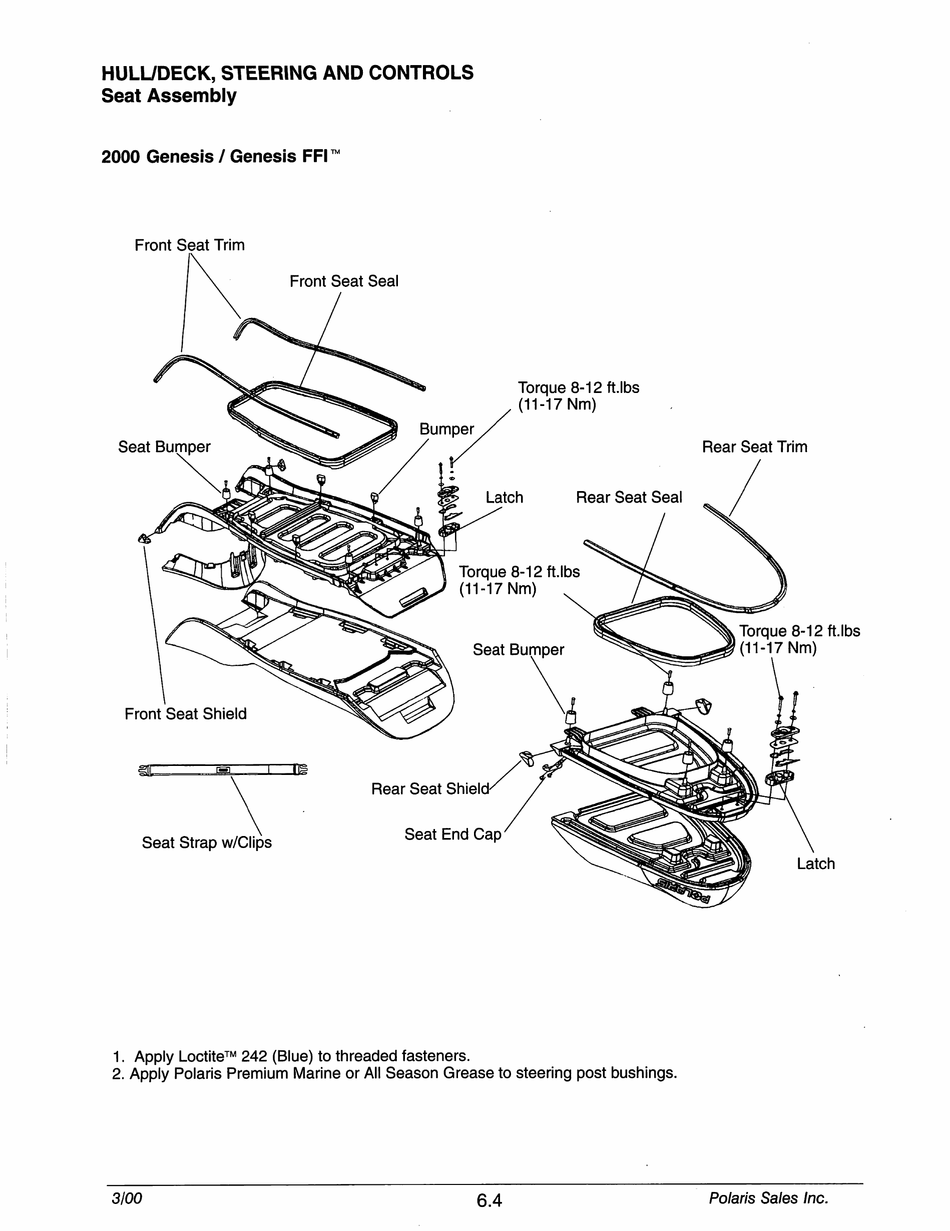

HULL/DECK, STEERING AND CONTROLS
Seat Assembly
2000 Genesis / Genesis FFI
Front Seat Trim
Seat Bumper
Front Seat Shield
Front Seat Seal
UI
Seat Strap w/Clips
Torque 8-12 ft.lbs
(11-17 Nm)
Latch Rear Seat Seal
Rear Seat Trim
Torque 8-12 ft.lbs
(11-17 Nm)
Seat Bumper
Rear Seat Shiel
Seat End Cap
Torque 8-12 ft.lbs
(11-17 Nm)
Latch
1. Apply Loctite™ 242 (Blue) to threaded fasteners.
2. Apply Polaris Premium Marine or All Season Grease to steering post bushings.
3100
6.4
Polaris Sales Inc.
