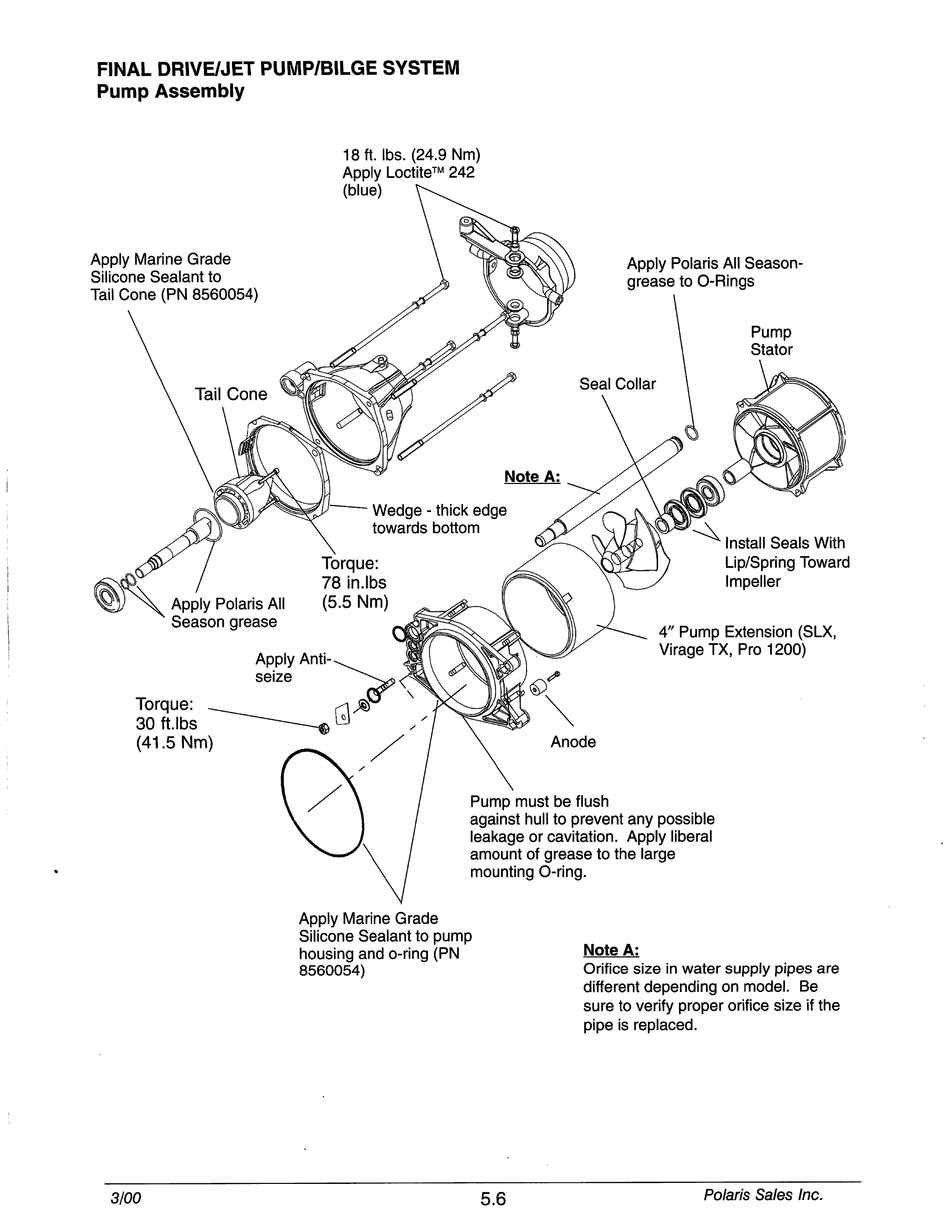

FINAL DRIVE/JET PUWIP/BILGE SYSTEM
Pump Assembly
18 ft. lbs. (24.9 Nm)
Apply Loctite™ 242
(blue)
Apply Marine Grade
Silicone Sealant to
Tail Cone (PN 8560054)
Apply Polaris All Season-
grease to O-Rings
Pump
Stator
Note A:
Wedge - thick edge
towards bottom
Apply Polaris All
Season grease
Torque:
78 in.lbs
(5.5 Nm)
Apply Anti-
seize
Torque:
30 ft.lbs
(41.5 Nm)
Install Seals With
Lip/Spring Toward
Impeller
4" Pump Extension (SLX,
VirageTX, Pro 1200)
Anode
Pump must be flush
against hull to prevent any possible
leakage or cavitation. Apply liberal
amount of grease to the large
mounting O-ring.
Apply Marine Grade
Silicone Sealant to pump
housing and o-ring (PN
8560054)
Note A:
Orifice size in water supply pipes are
different depending on model. Be
sure to verify proper orifice size if the
pipe is replaced.
3/00 5.6
