MAINTENANCE/TUNE UP
Electrical
Electrical Connections
Apply Nyogel™ grease to battery posts and exposed cable connections.
Inspect electrical box for moisture, check wire sealing grommets, and apply Nyogel™ grease to terminal board
connections.

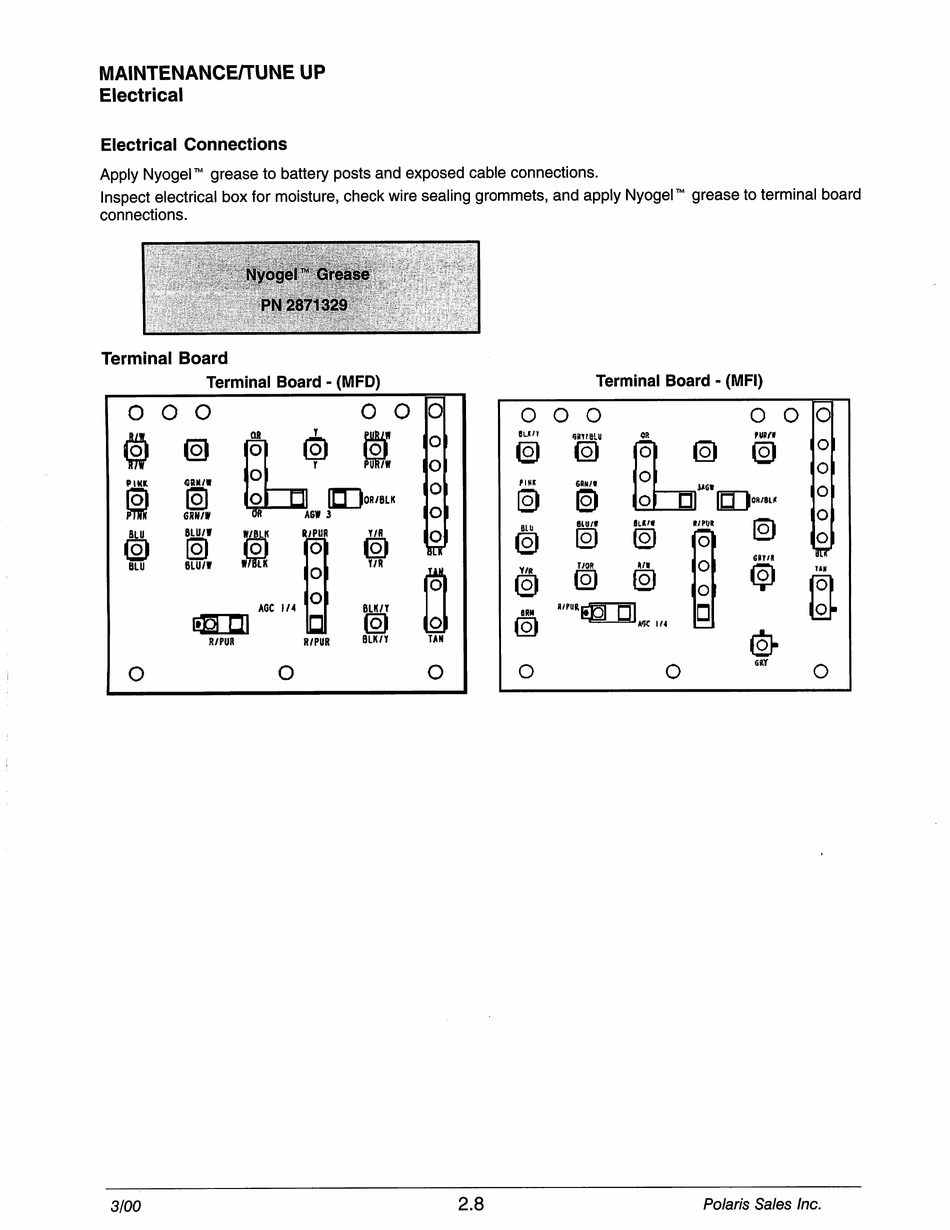

Terminal Board
Terminal Board - (MFD)
