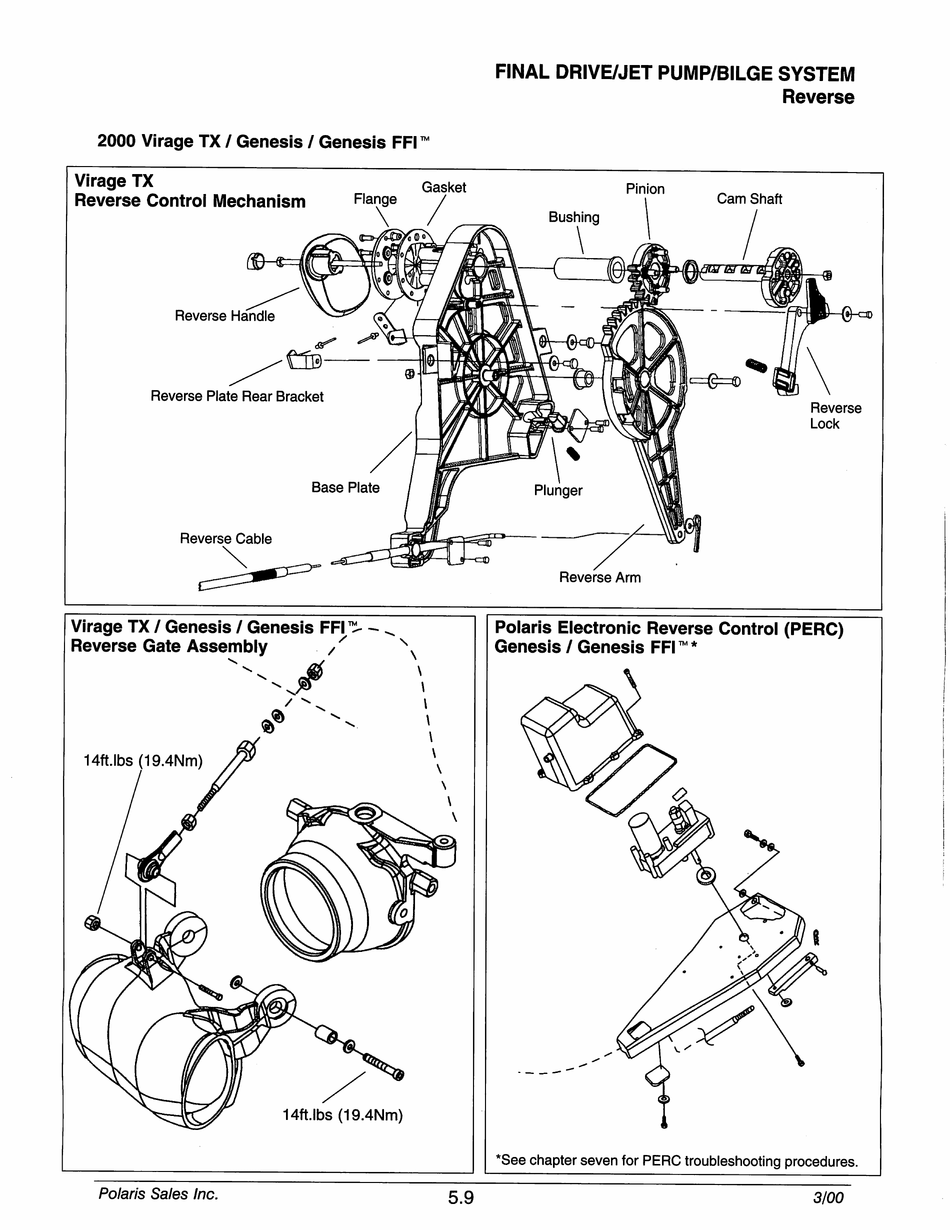

FINAL DRIVE/JET PUMP/BILGE SYSTEM
Reverse
2000 Virage TX / Genesis / Genesis FFI
TX Gasket
Reverse Control Mechanism F|ange
Pinion
Cam Shaft
Reverse Handle
Reverse Plate Rear Bracket
Reverse
Lock
Reverse Cable
Reverse Arm
Virage TX / Genesis / Genesis FFI
Reverse Gate Assembly /
14ft.lbs(19.4Nm)
14ft.lbs(19.4Nm)
Polaris Electronic Reverse Control (PERC)
Genesis / Genesis FFI™*
*See chapter seven for PERC troubleshooting procedures.
Polaris Sales Inc.
5.9 3/00
