Style Programming

This function allows you to program the operation parameters of DIAPER FEEDER devices.
The STYLE EDIT function provides 3 options selectable using the immediate activation buttons.
To create a "new" style and add it to the style database.
To either change the parameters of an existing style, or to create a new style starting from a
similar already existing style.
To remove a style from the database.
All the connected DIAPER FEEDER devices can be configured with the same parameters or, (to increase
the system flexibility) you may create multiple device groups (sections), up to a maximum of 8 groups,
configuring each section with different parameters.
In case of multiple section, the identification number of the first device belonging to the first section (GROUP
#1) will always be 001 and you will have the possibility to setup only the identification number of the last
device belonging to the first section; the first device of the second section will be automatically set with the
number of the last device belonging to the first section + 1 .... and so on.
Example: 6 DIAPER FEEDER devices grouped into 2 sections (GROUP #1 ~ GROUP #2) with 3 devices
per section:
GROUP #1: 001/003 – GROUP #2: 004/006
On each group, you shall configure the device operation parameters using the
Programming a New Style
This example shows how to create a new style (MATRIXCUBE2) with 6 DIAPER FEEDER devices
distributed on 2 sections (3 devices per section).

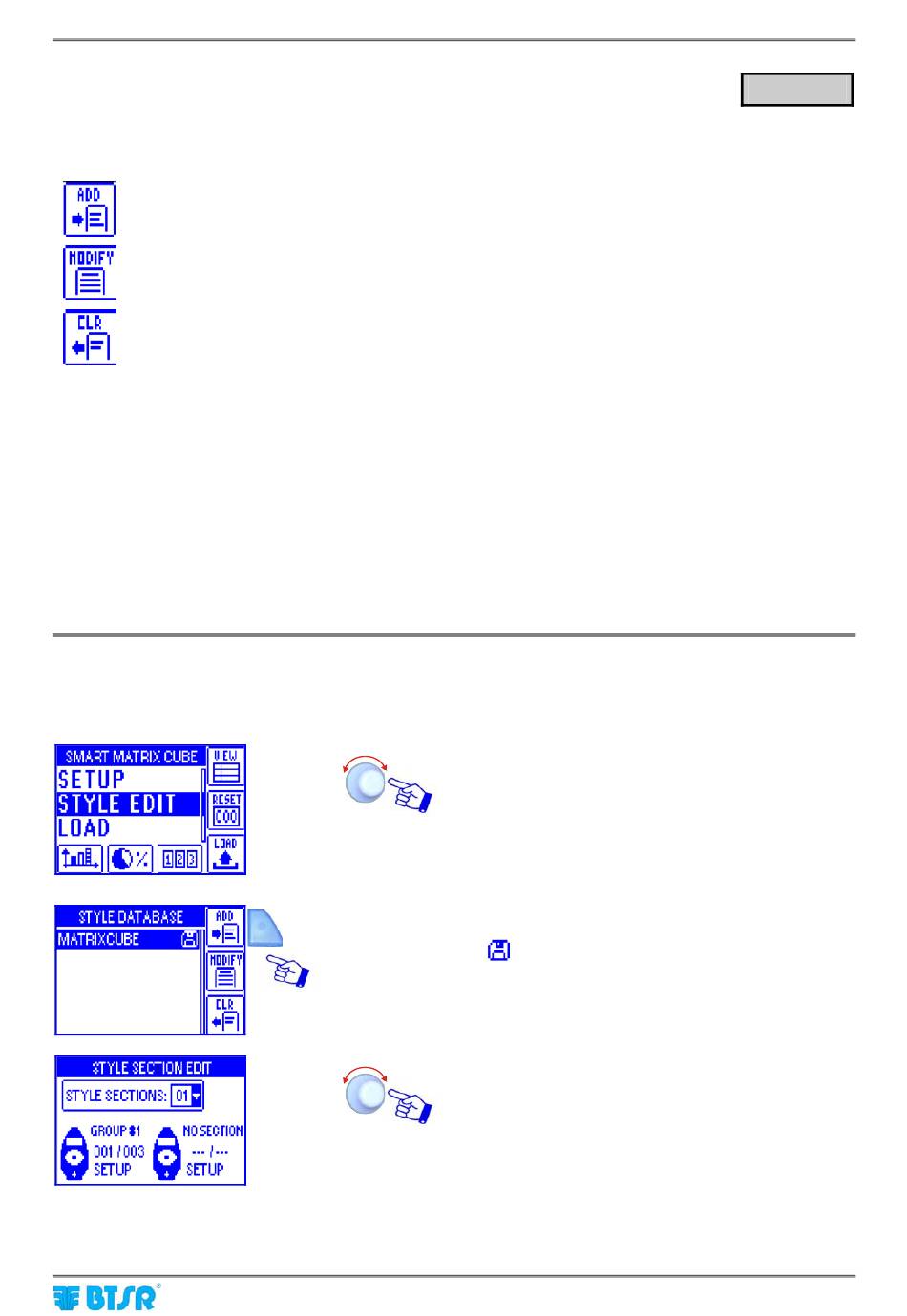

Select STYLE EDIT.
Press ADD
(the symbol indicates that
currently loaded on the devices)
Select STYLE SECTIONS.
MATRIX CUBE
Style Programming
STYLE EDIT
SETUP option.
MATRIXCUBE is the style
