Installation and Connections
Topographic View of MASTER CUBE Box
MAIN SWITCH
PROTECTION
FUSES
START/STOP
SERIAL
MACHINE
THREE PHASE
RELAY
INTERFACE
INTERFACE
POWER SUPPLY
+ GROUND

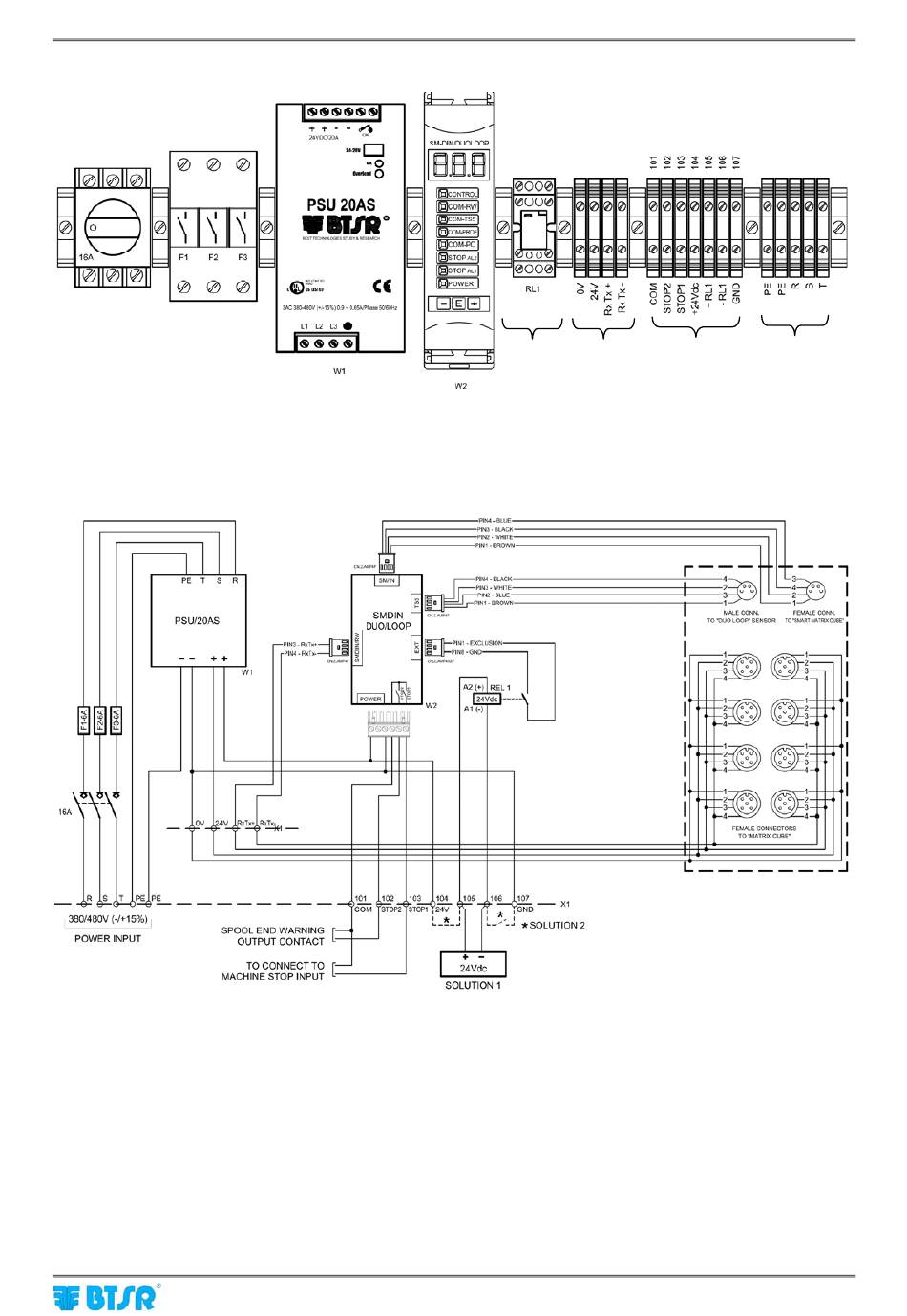

MASTER CUBE Interconnection Diagram
MATRIX CUBE
- 4 -
