Style Programming

This function allows you to program the operation parameters of WINDINGFEEDER devices.
The STYLE EDIT function provides 3 options selectable using the immediate activation buttons.
To create a "new" style and add it to the style database.
To either change the parameters of an existing style, or to create a new style starting from a
similar already existing style.
To remove a style from the database.
You may assign different tension and control parameters to each style, in order to meet your specific
application needs.
The STYLE EDIT function requires the programming of 3 sets of parameters in 3 windows (PROFILE,
and CONFIG).
Programming a new style
Parameters Programming within the PROFILE window
Select
Press
(the
currently loaded to the device)
Setup in sequence the parameters of
window.

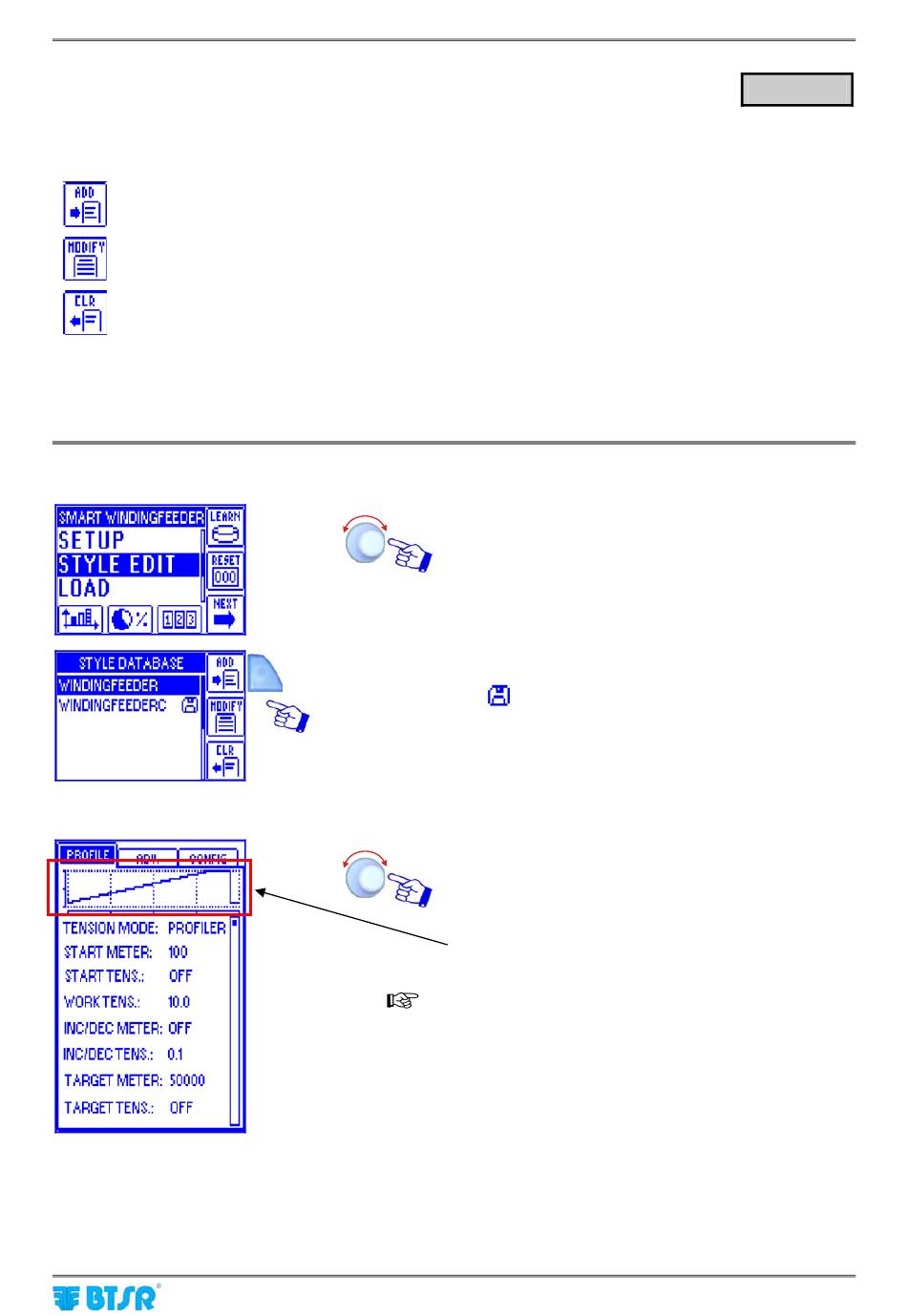

Graphic profile of the yarn tension depending on
programmed values.
For the explanation of the various parameters,
please refer to Section 3 "Summary table of Style
Programming Parameters" and "Profile Programming
Examples
SMART MATRIX WINDINGFEEDER
STYLE EDIT.
ADD
indicates that WINDINGFEEDERC
Style Programming
STYLE EDIT
ADV
is the style
PROFILE
