btsr MATRIX CUBE Operating Manual page 110

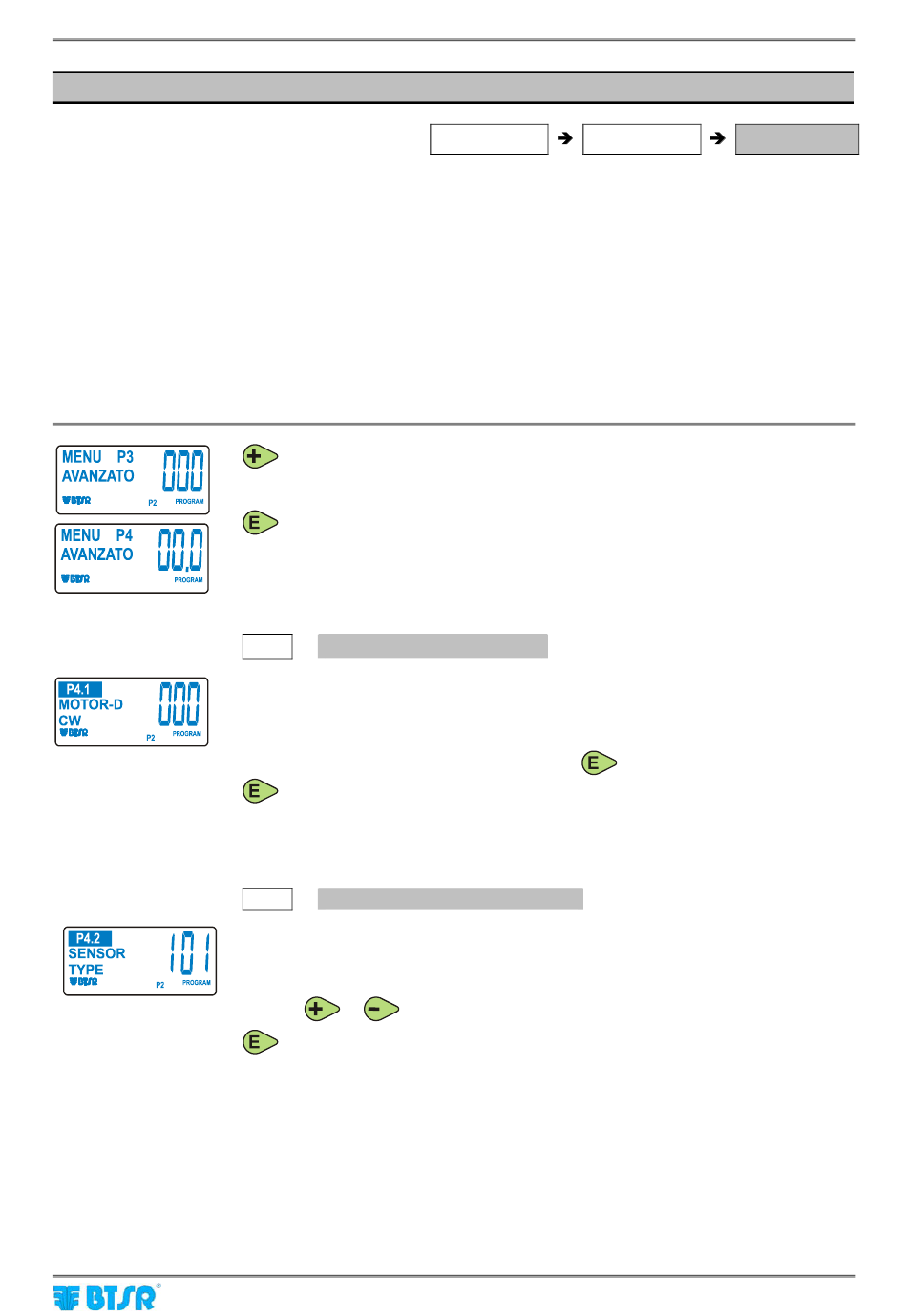

P4 Programming Level
The P4 programming level allows you to select the various device operating
modes:
1) Yarn feeding motor rotation direction (clockwise or counter clockwise);
2) Size in grams of TS44.. tension sensor used (either 100 g. or 1,000 g.);
3) Communication baud rate over the serial interface;
4) Application on which the device will be used;
5) Yarn type: either normal or elastic;
6) Language used to display menus and messages;
7) Polarity of Input and Stop signals (Normally Open or Normally Closed
contact).
8) Automatic detection of the optional intelligent accessory.
to select the P4 level.
to continue.
MOTOR D
P4.1
This function allows you to choose the rotation direction of yarn feeding motor
(CW = Clockwise, CCW = Counter-Clockwise).
To move from CW value (Clockwise) to CCW value (Counter-Clockwise) or vice
versa, press and hold down for 3 seconds the
to move to next parameter.
P4.2
SENSOR TYPE
Choose the size in grams of the TS44.. tension sensor used: allowed values 101 or
102.
(101 if you are using the TS44/100DRW sensor or 102 if you are using the
TS44/1000ERW sensor)
Use the or buttons to toggle from 101 to 102 and vice versa.
to confirm.
MATRIX CUBE
LFA m/min ADVANCED
DIAPER FEEDER Device
MENU P4
button.
- 90 -
