1.4

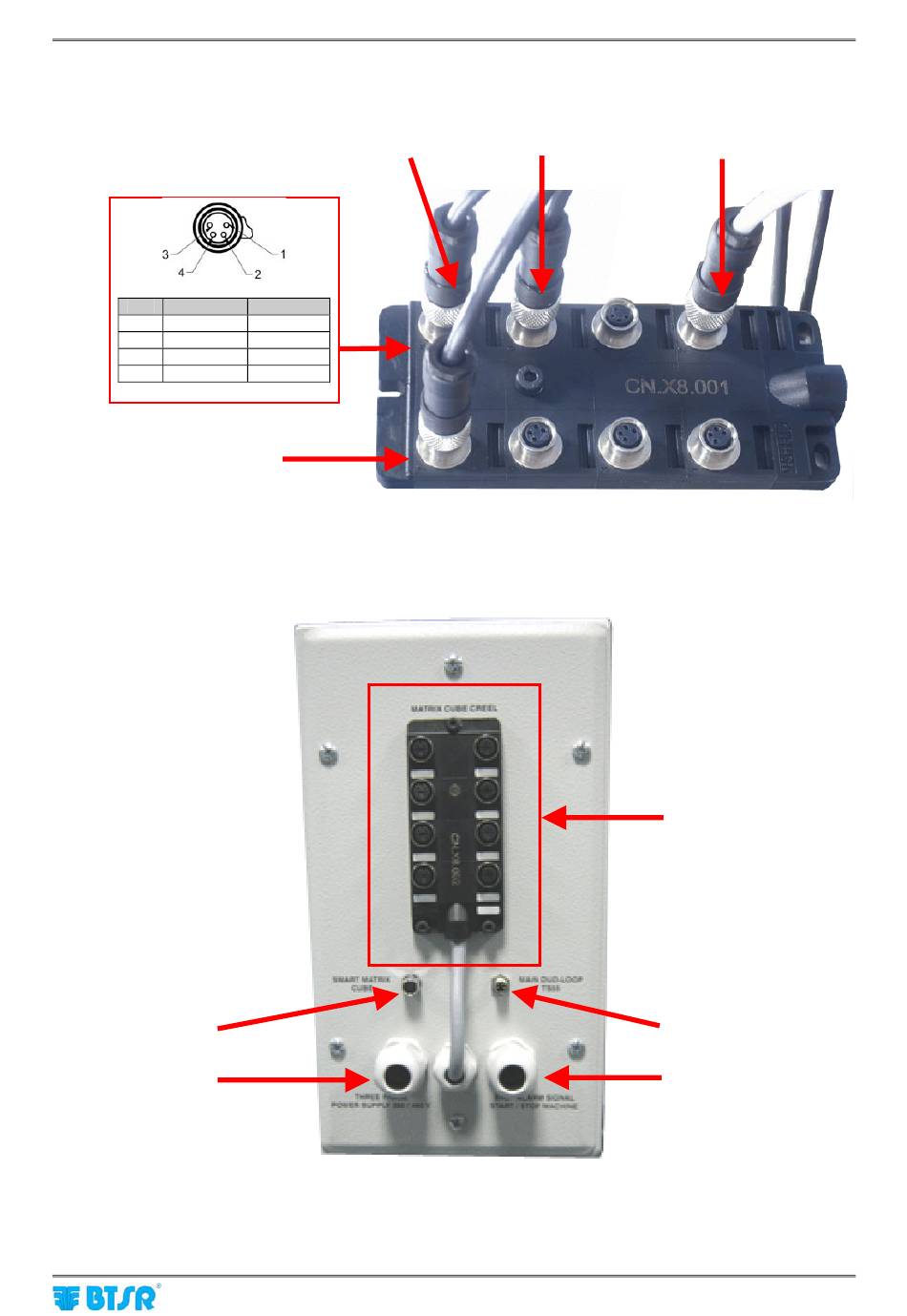

TS55 Sensor Connection
TS55 CONNECTOR
FRONT VIEW
PIN
COLOR
1
Brown
2
White
3
Yellow
4
Green
1.5
Connection to MASTER CUBE Box
SMART MATRIX
CUBE connection
380/480 Vac power
cable
TS55 Sensor
SIGNAL
Vdc
Rx Tx +
GND+sch
Rx Tx -
TS55
Sensor
MATRIX CUBE
Installation and Connections
From MASTER CUBE Box (A)
TS55 Sensor
Connection of
MATRIX CUBE
creel modules
TS55 connection (A)
Start / Stop / Alarm,
etc signal cable
- 5 -
