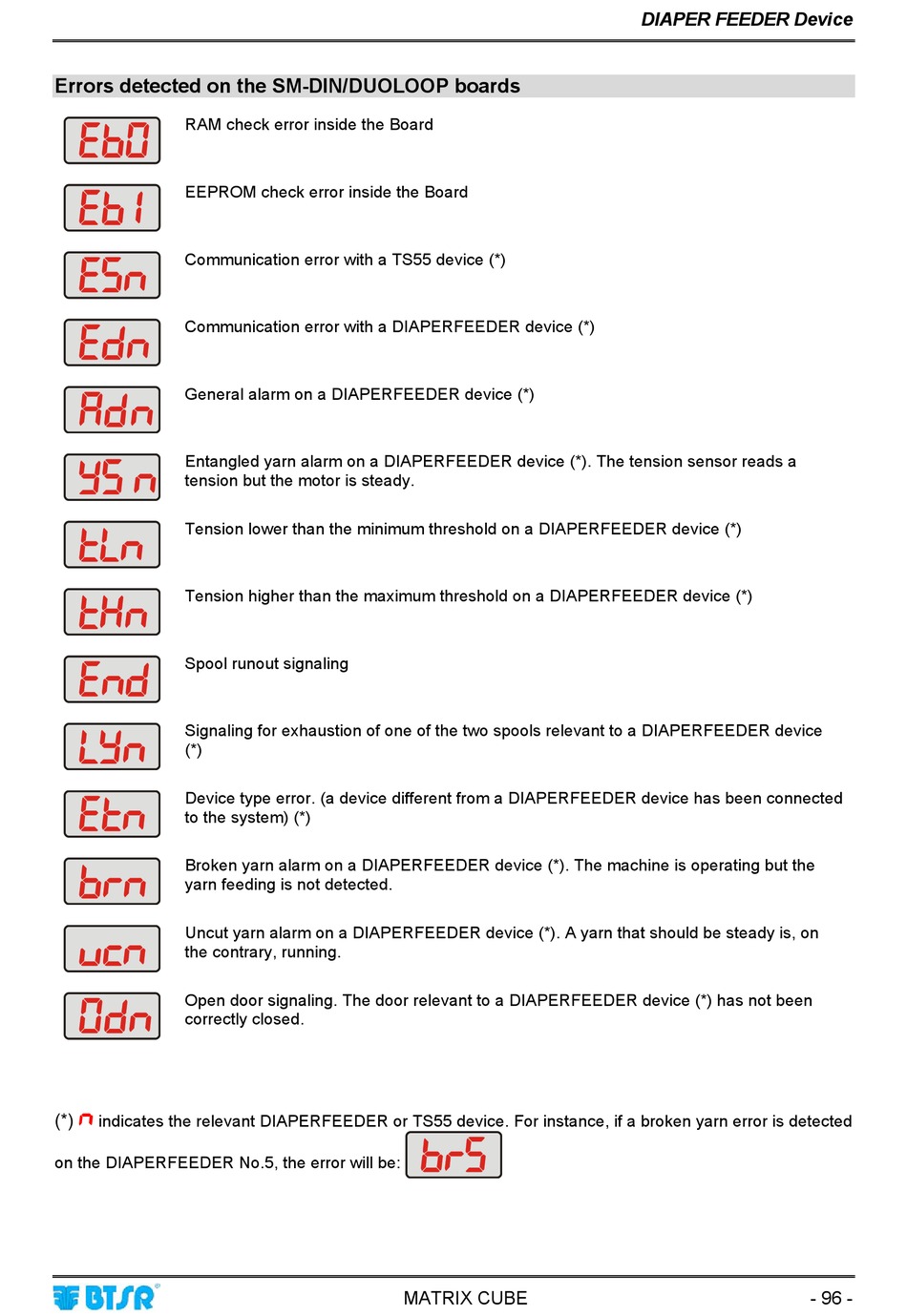

Errors detected on the SM-DIN/DUOLOOP boards
RAM check error inside the Board
EEPROM check error inside the Board
Communication error with a TS55 device (*)
Communication error with a DIAPERFEEDER device (*)
General alarm on a DIAPERFEEDER device (*)
Entangled yarn alarm on a DIAPERFEEDER device (*). The tension sensor reads a
tension but the motor is steady.
Tension lower than the minimum threshold on a DIAPERFEEDER device (*)
Tension higher than the maximum threshold on a DIAPERFEEDER device (*)
Spool runout signaling
Signaling for exhaustion of one of the two spools relevant to a DIAPERFEEDER device
(*)
Device type error. (a device different from a DIAPERFEEDER device has been connected
to the system) (*)
Broken yarn alarm on a DIAPERFEEDER device (*). The machine is operating but the
yarn feeding is not detected.
Uncut yarn alarm on a DIAPERFEEDER device (*). A yarn that should be steady is, on
the contrary, running.
Open door signaling. The door relevant to a DIAPERFEEDER device (*) has not been
correctly closed.
N
(*)
indicates the relevant DIAPERFEEDER or TS55 device. For instance, if a broken yarn error is detected
on the DIAPERFEEDER No.5, the error will be:
