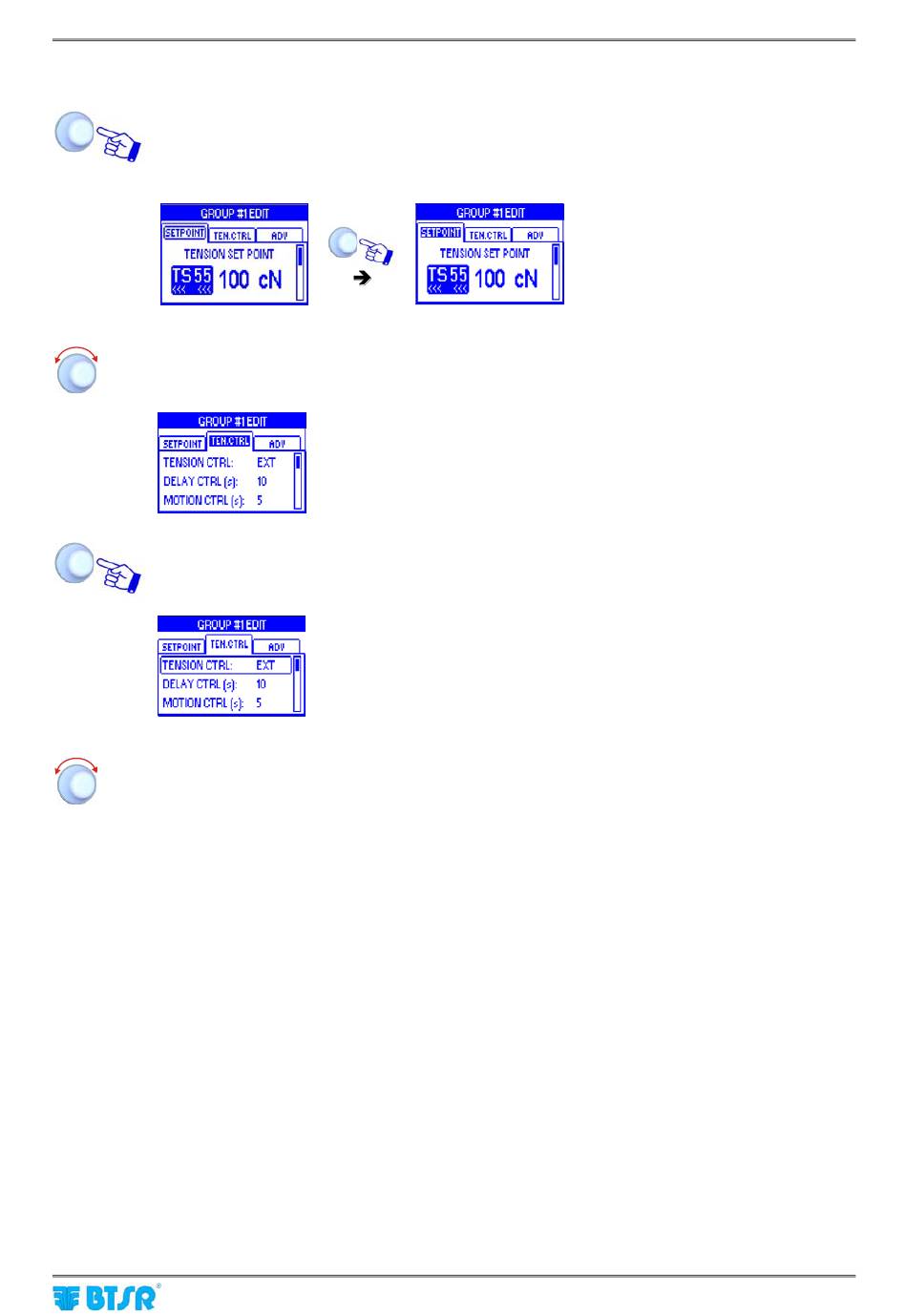

2.2.2 Windows Swap
Turn the selector to "Point" the label of the current window (SETPOINT) and click to select it.
Example:
Turn the selector to "Point" the remaining window (TEN.CTRL).
Click to select the
Select the desired parameter as explained on previous paragraph:
1 – Navigation throughout the Display Windows (SETPOINT)
TEN.CTRL
window
highlighted
TEN.CTRL
window and enable the access to its parameters .
The
TEN.CTRL
window is now the
current one
MATRIX CUBE
SMART MATRIX CUBE Operation
SETPOINT
window
highlighted
- 30 -
