Installation and Connections
1.5.1 Connection Cable Pat to Electrical Box

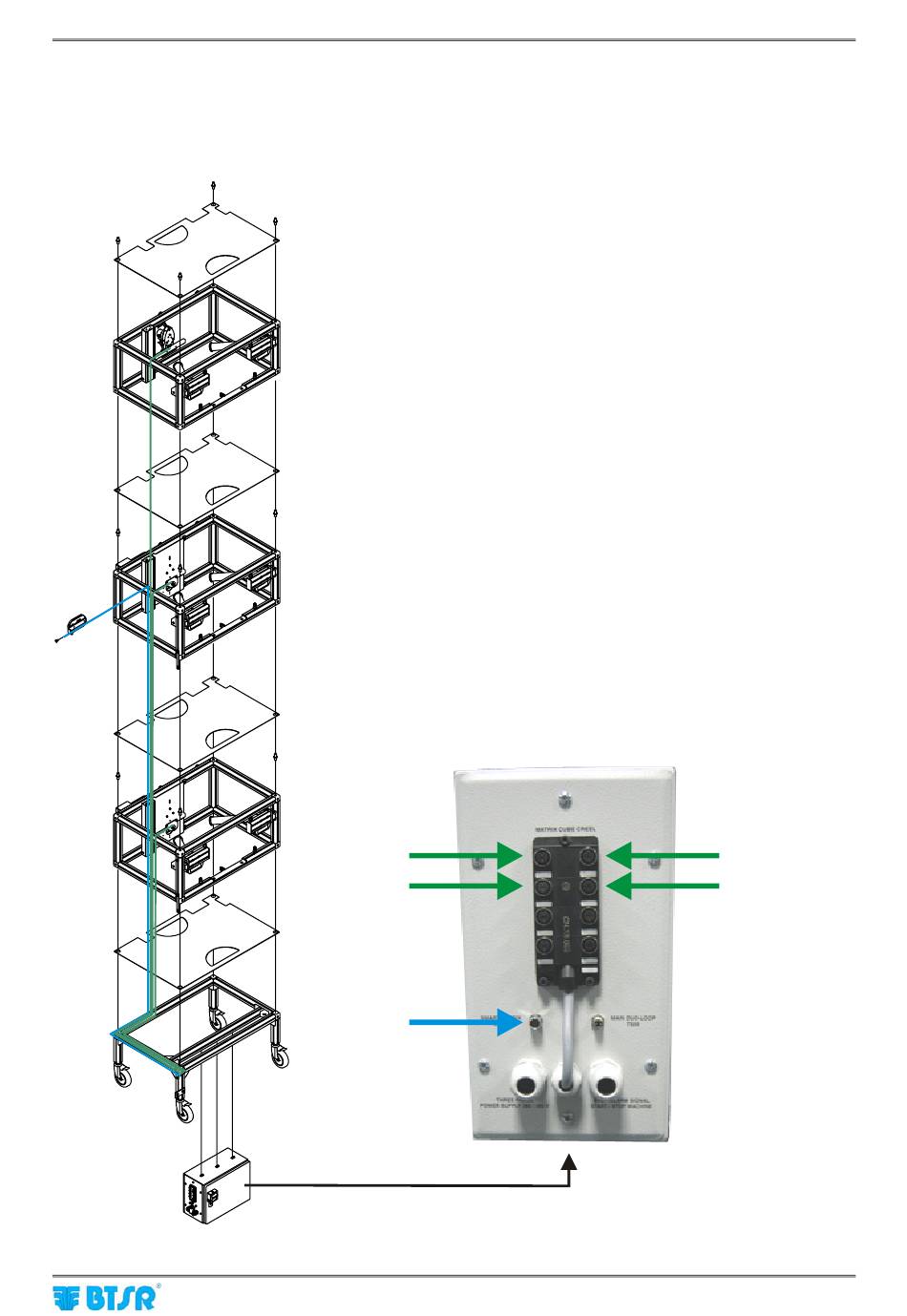

Lead the DIAPER FEEDER interface cable (shown with green lines) and of SMART MATRIX CUBE terminal
(shown with blue line) inside the creel module cable ducts, until reaching the electrical box and connect them
to the corresponding connectors, as shown on the following figure.
