1.6 SMART MATRIX CUBE Interface

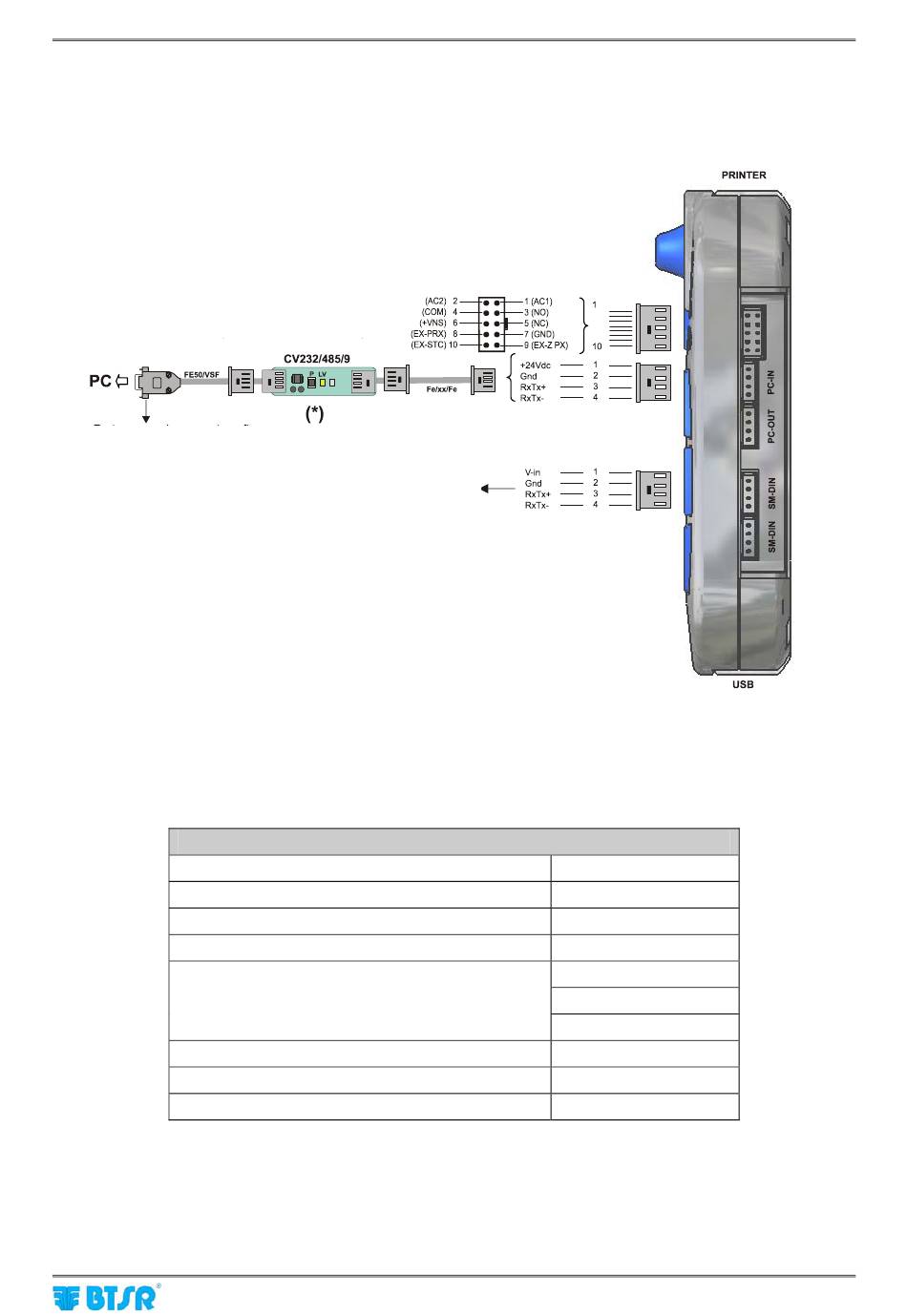

The following figure shows the electrical interface (pin assignment) of SMART MATRIX CUBE terminal.
The "Printer" and "USB" connectors are not currently used for MATRIX CUBE application.
Software upgrading port
(*) Confirm that the LV green Led shows a double flashing (communication speed on
CV232/485/9 = 115 Kbps).
If necessary press the small P button.
SMART MATRIX CUBE Terminal Technical Characteristics
Power supply voltage
Current absorption
Protection fuse (SMART MATRIX)
Protection fuse (Sensor power supply)
Inputs
Operating temperature range
Storage temperature
Overall dimensions
I/O interface
(currently not used)
Supply voltage from SM-DIN/DUOLOOP
MATRIX CUBE
Installation and Connections
24 VDC ± 10%
100 mA Max
1.5 A
1.5 A
0 – 24 VDC
VIL Max 1.2 VDC
VIH Min 5 VDC
+10° / +60° C
-25° / +85° C
140x80x31 mm
