btsr MATRIX CUBE Operating Manual page 90

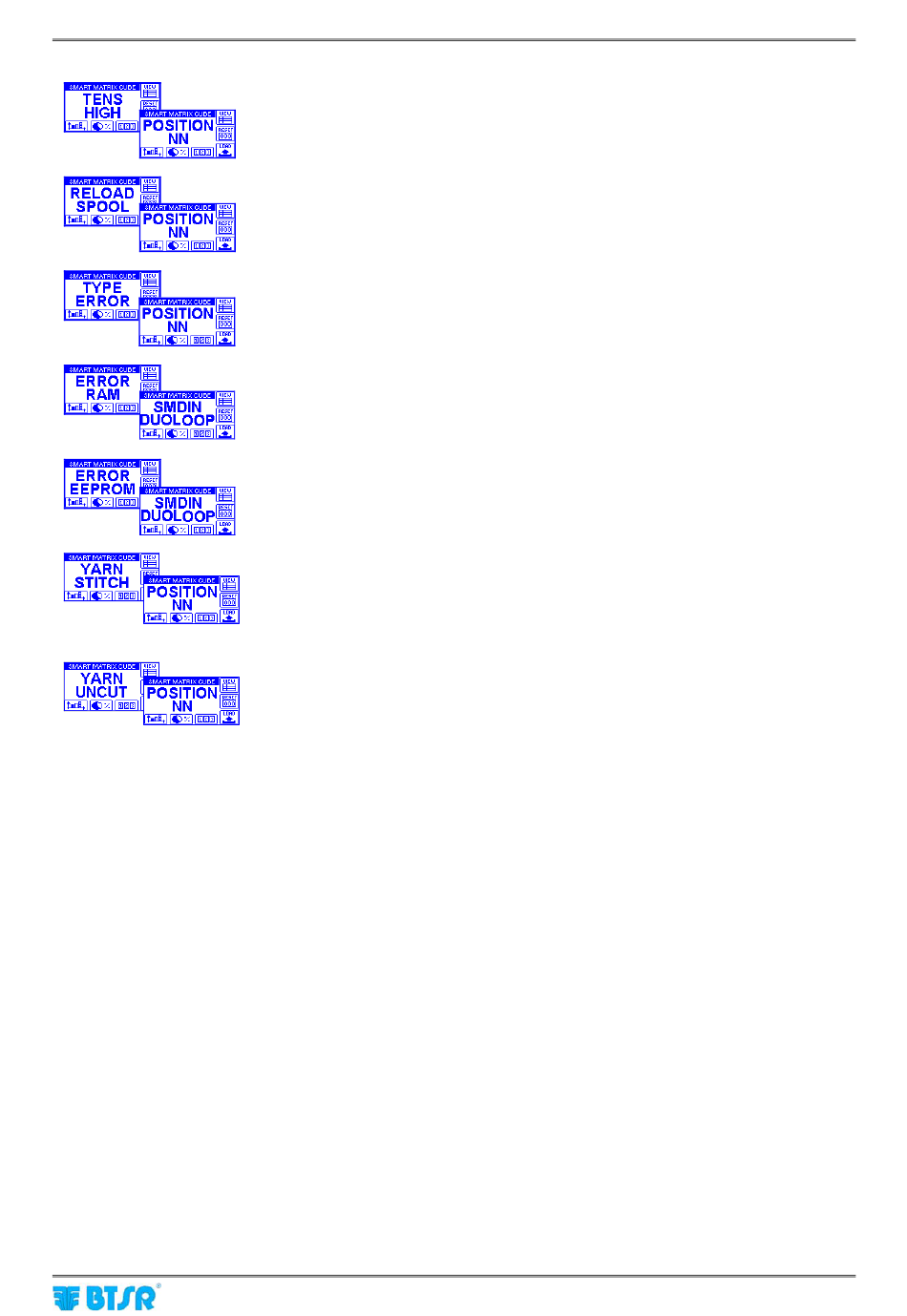

Error Messages
Tension error (higher than the maximum value allowed for the time set on the
style parameters) detected by sensor TS55 in position NN.
Spool reloading request on creel in position NN.
Type of device installed in position NN different from DIAPER FEEDER device
(configuration not allowed).
Error on SM-DIN/DUOLOOP Board RAM.
Error on SM-DIN/DUOLOOP Board EEPROM.
Motion control error! At least one yarn broken downstream the TS55 sensor,
with sensor still actuated by the yarn.
See MOTION CTRL OPTION on STYLE EDIT menu.
Uncut error. A yarn that should be steady is, on the contrary, running
MATRIX CUBE - 72 -
