1.9 Configuration of SM-DIN/DUOLOOP Board

The SM-DIN/DUOLOOP control Board requires the programming of 6 parameters:
P01 Board ID number
P02 Communication speed (Baudrate) between SMART MATRIX CUBE and SM-DIN/DUOLOOP (115 or 57.6 Kbps)
P03 System regulation algorithm
P04 Exclusion tension (kept by DIAPER FEEDER device when the machine is stopped)
P05 Tension control on TS55 sensors
P06 Offset on TS55 sensors

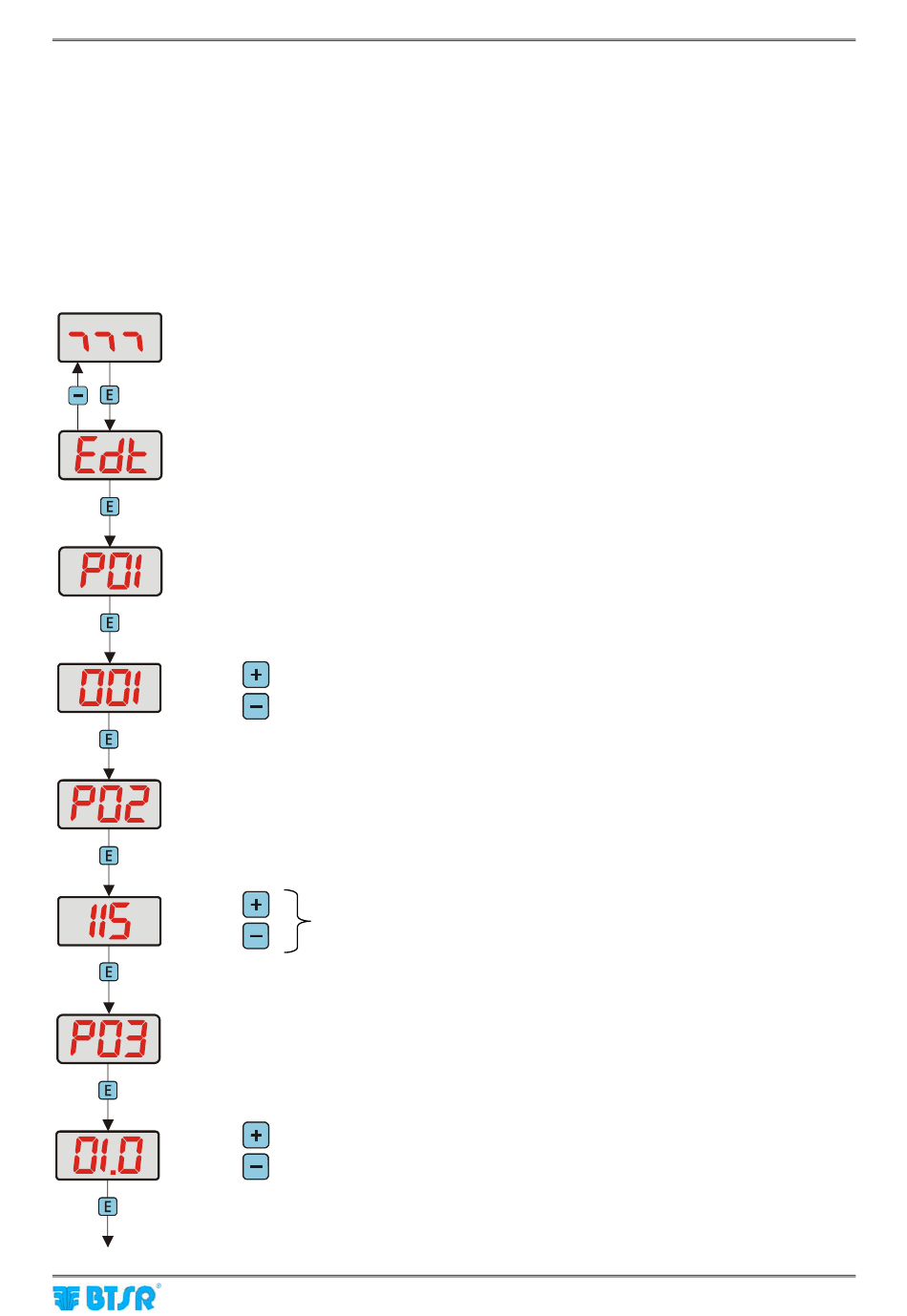

Procedure
3 sec.
follow
"Run Time" status
During the normal machine operation
Parameter Edit status
Parameter P01 (Board identification number)
To increase the value
To decrease the value (for this application always set 001)
Parameter P02 (Baudrate)
To select 57.6 Kbps or 115 Kbps (*)
(*) Always set 115 Kbps
Parameter P03 (regulation algorithm – system gain setting)
Possible values 00.0 ~ 20.0 (Default 01.0)
To increase the value
To decrease the value
