Choice of Visualization Mode

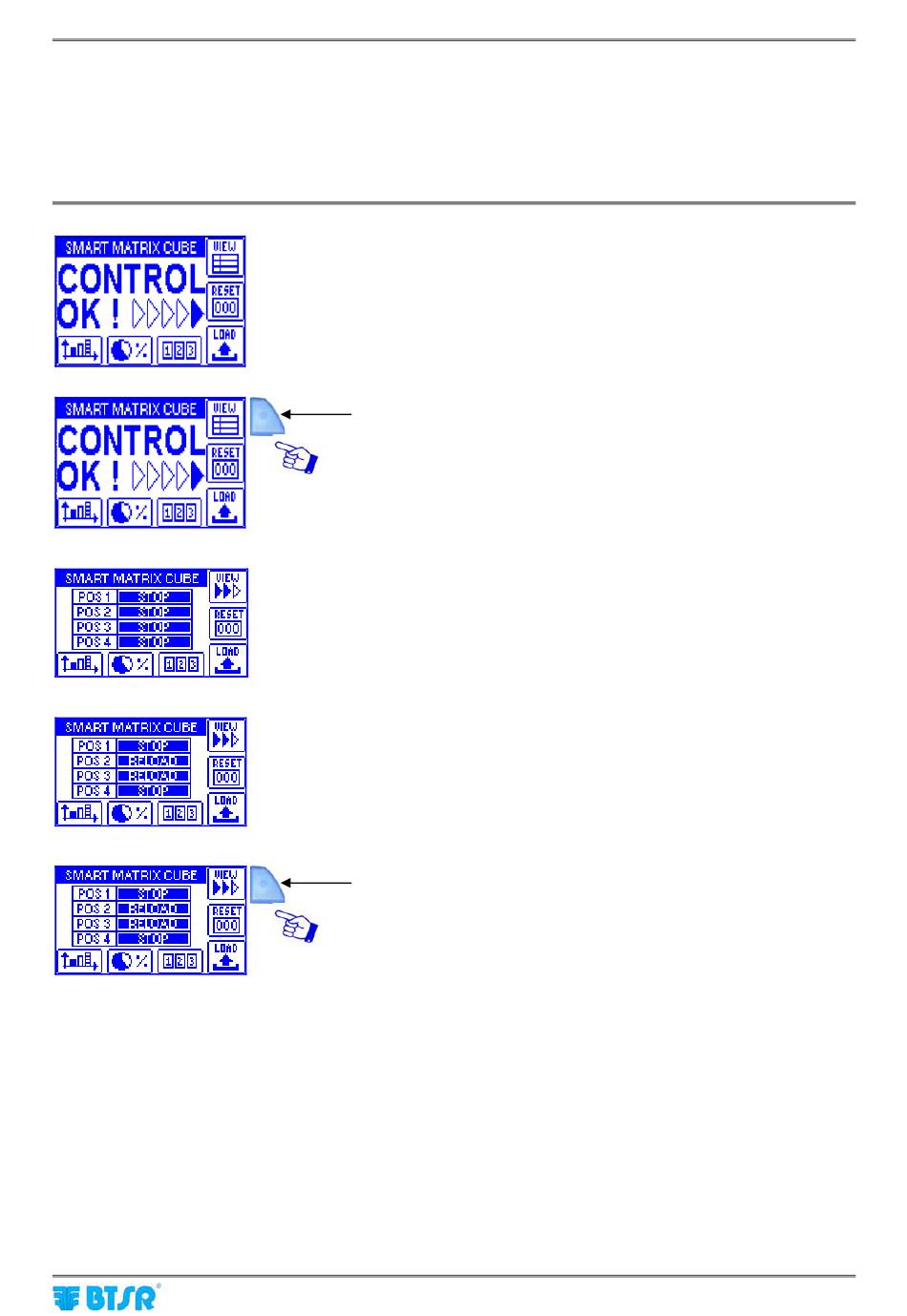

This function allows you to choose the type of information to be shown on SMART MATRIX CUBE terminal
display during the machine operation ["General Control" screen or "Status of Creel Positions" screen].
The choice can be done pressing the
current visualization mode.
VIEW button that shows two different symbols, depending on the
General Control screen.
Press this button to activate the "Status of Creel Positions"
screen.
Example 1
Positions 1 .. 4 stopped
Example 2
Positions 1 and 4 stopped
Positions 2 and 3 requesting a yarn spool reload
To return to General Control screen.
MATRIX CUBE
Choice of Visualization Mode
- 70 -
