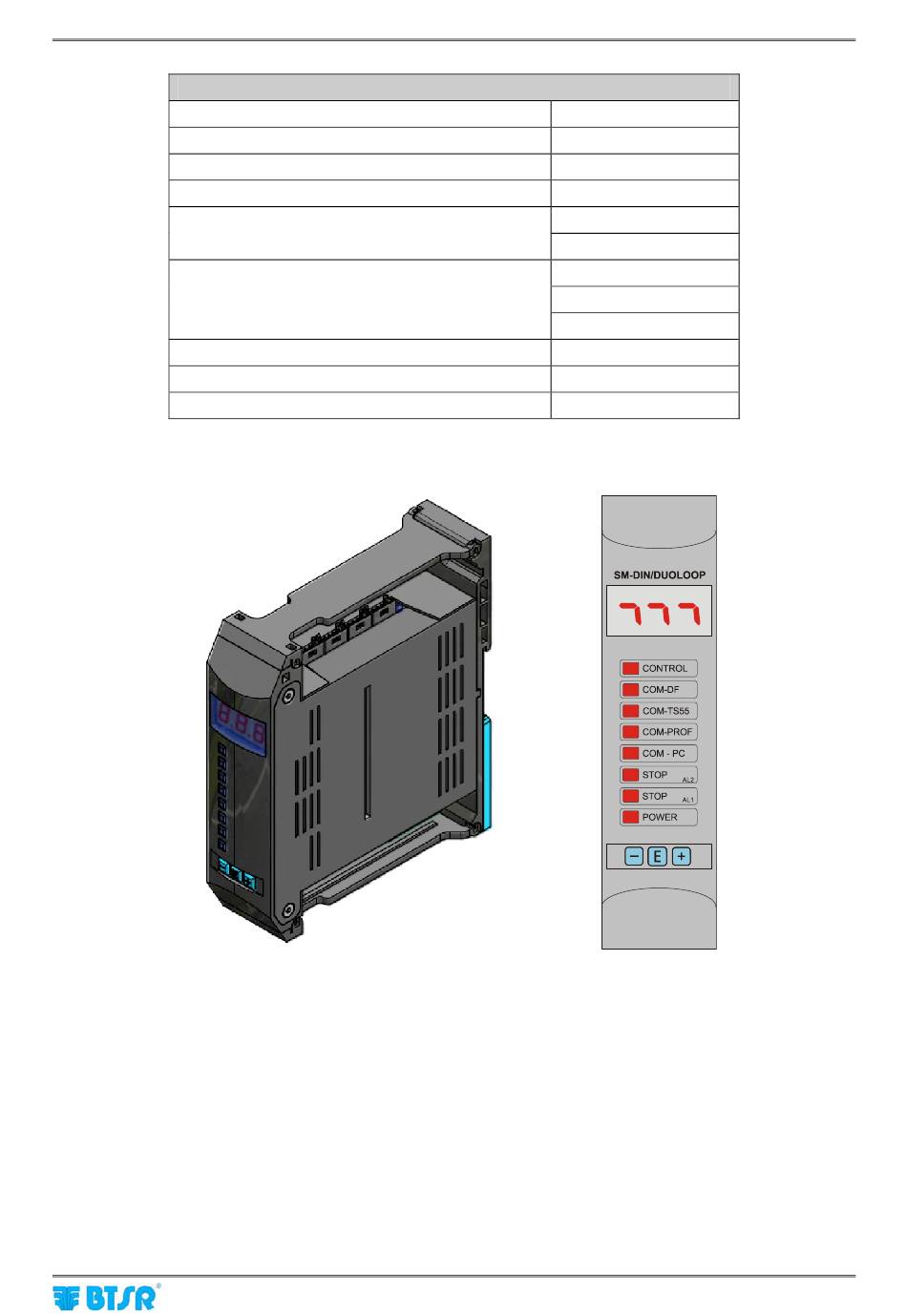

SM-DIN/DUOLOOP Control Unit Technical Characteristics
Power supply voltage
Maximum absorption
Protection fuse (Board protection)
Protection fuse (sensors supply)
STOP output (normally open contacts)
Inputs
Operating temperature range
Storage temperature
Dimensions
24 VDC
200 mA Max
5 A
3 A
0.3 A 125 VAC
1 A 30 VDC
0 – 24 VDC
VIL Max 1.2 VDC
VIH Min 5 VDC
+10° / +60° C
-25° / +85° C
138.5x124x35 mm
