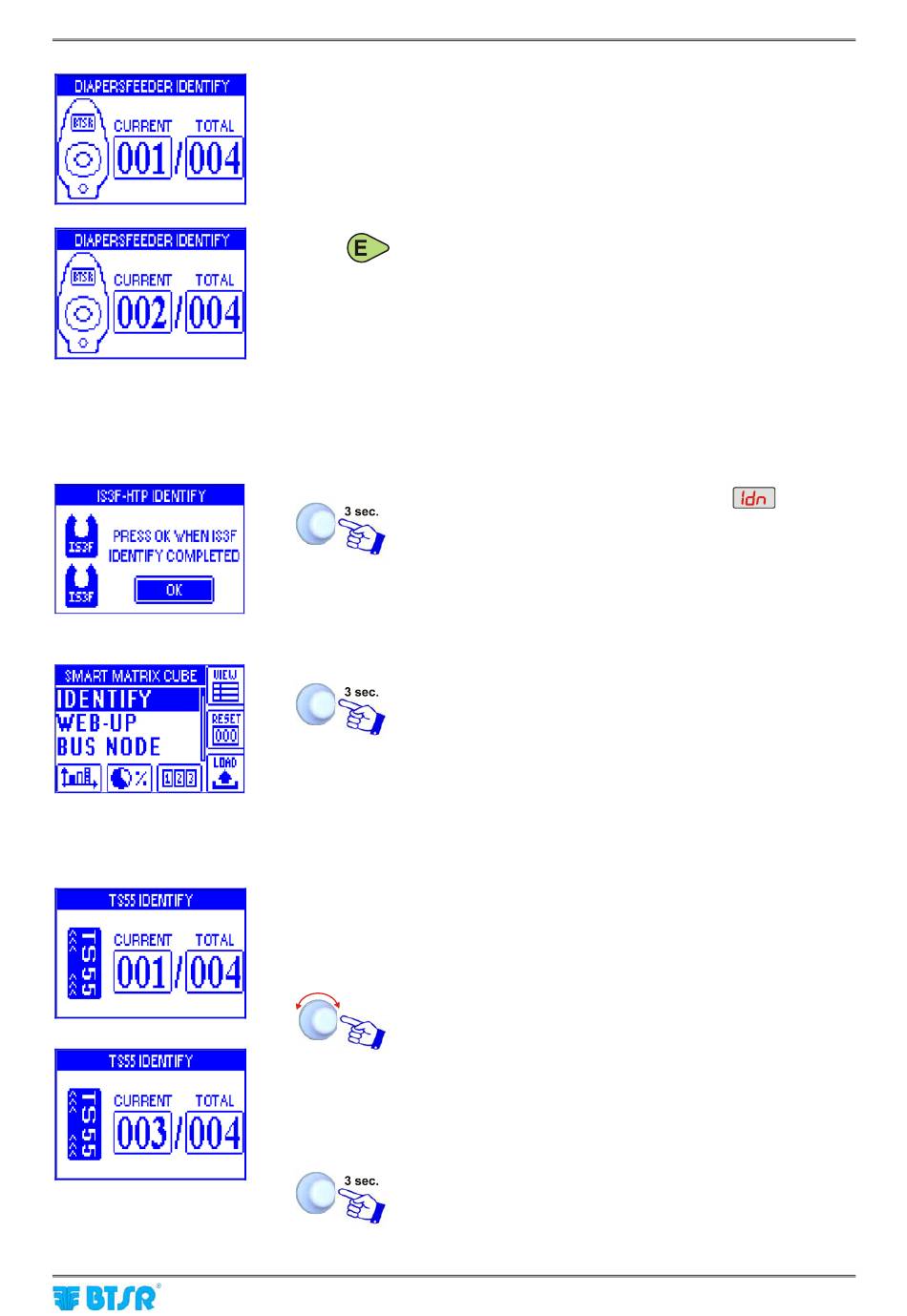

Single Device Numbering (TS55)
To number a single TS55 device (for instance in case of replacement) operate as follows:
appears.
The example shown here indicates that the numbering
procedure of the 4 DIAPER FEEDER devices is going
to start.
The red LEDs of all TS44 tension sensors start flashing
and the LEDs of Control, Enter and Reset buttons
toggle (red and green). In addition, the display of all
DIAPER FEEDER devices shows the
FEEDER
message
Press Enter on the First DIAPER FEEDER device and
check that:
a) The LED of tension sensor turns off and the LEDs
of Control, Enter and Reset buttons remain steady
green.
b) The display of numbered device shows the
assigned number.
c) The
CURRENT
terminal increases by 1.
Repeat the above procedure for all connected DIAPER
FEEDER devices.
At the end of the TS55 numbering operation, the IS3F/HTP
identification screen automatically -appears.
The display of SM-DIN Boards will show
The green led will flash on all sensors
Shim the touch light of the first sensor
The sensor's led changes from flashing green to red.
Continue with the identification of all sensors.
Press OK at he end of the identification. The
configuration menu will re-appear
To return to
CONTROL
Carry out all the operations described on Device
Configuration and Numbering paragraph, until the
screen showing the Current and Total device numbers
appears on the terminal display.
Select on the
CURRENT
be re-numbered (e.g. 003).
Skim the touch light of TS55 sensor number 003 and
check that:
a) the sensor LED changes from flashing green to
red.
b) The
CURRENT
terminal increases by 1.
To leave the identification procedure once you have re-
numbered the sensor.
MATRIX CUBE
WEB UP function
IDENTIFY
field on SMART MATRIX CUBE
status.
field, the number of device to
field on SMART MATRIX CUBE
