8)

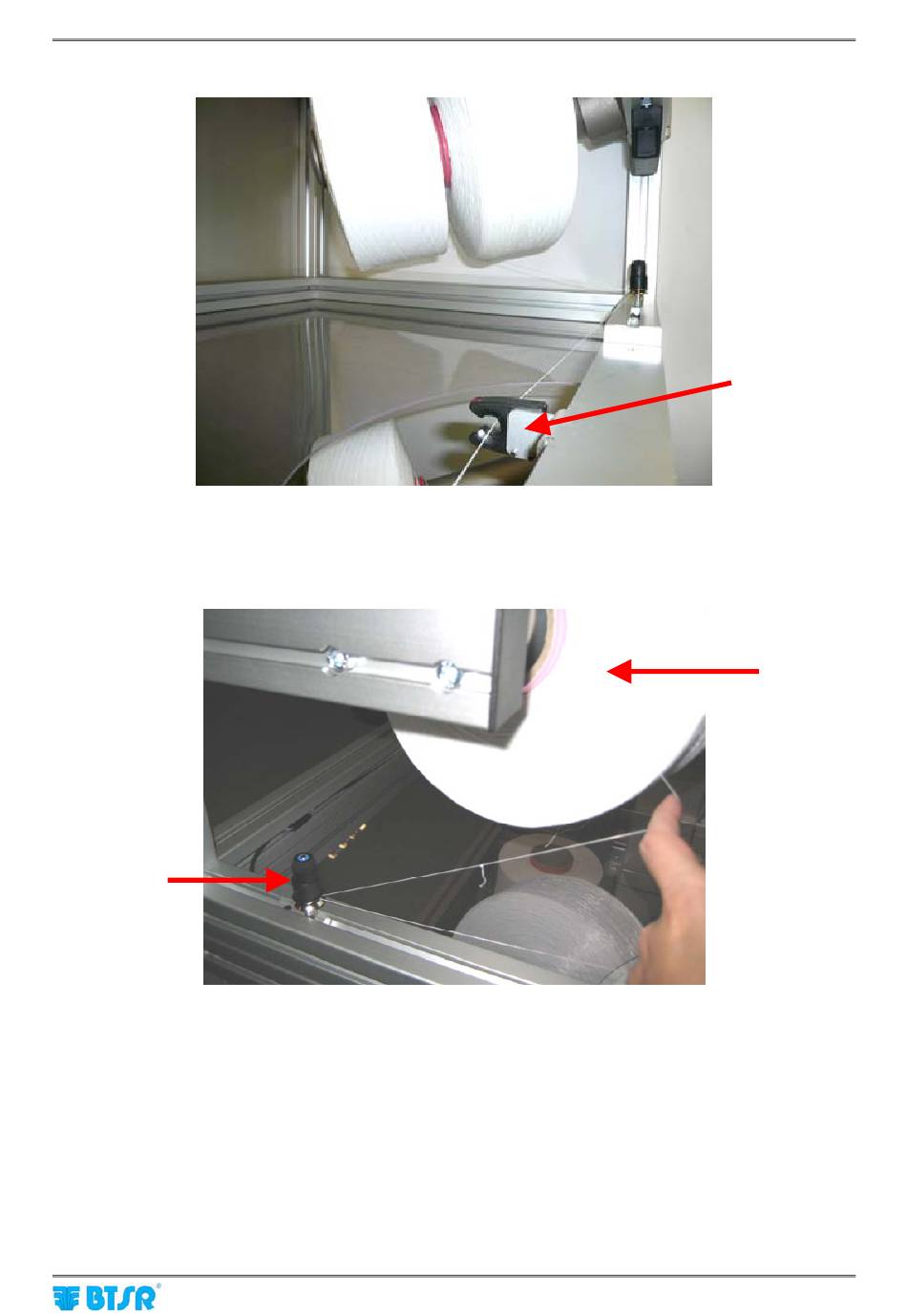

Insert the yarn into the IS3F/HTP sensor
9)
Reset the sensor touching with your finger the red blinking led; the red led immediately stop blinking.
10) Insert the yarn into the yarn braking device (F3) and connect it with the tail of spool 4.
Yarn braking
device (F3)
MATRIX CUBE
Installation and Connections
IS3F/HTP sensor
Spool 4
- 21 -
