6.5.2
User Login
1.

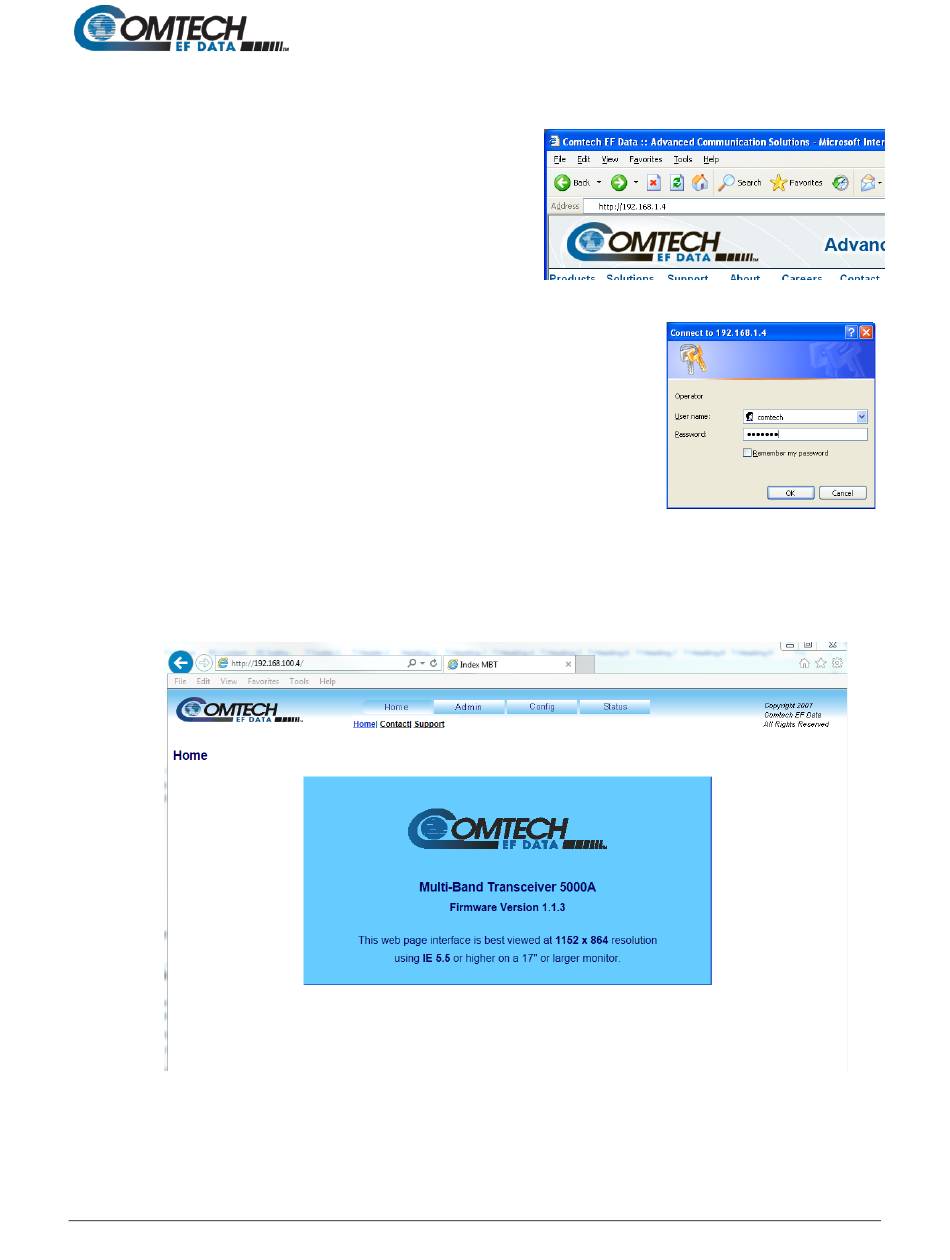

From the PC, type http://192.168.1.4 (the
default IP address for the MBT-5000A) into the
Address area of the browser:
2.
You are then prompted to type in a valid User name and
Password, similar to the dialog box shown to the right. For all
interfaces, the default for both is comtech.
Type the User name and Password, and then click [OK].
Failure to enter the correct User name and Password will return you to a blank Login window.
Otherwise, once the valid IP address and login information is entered, the MBT-5000A Web Server
Interface "Splash" page is displayed, similar to the example shown here:
Ethernet-based Remote Product Management
MBT-5000A L-Band Up/Down Converter System
6–8
Revision 1
MN-MBT-5000A
