3.3.2.1.1 Standard 90-260V AC Operation – Apply Power
To apply AC power to the MBT-5000A, do these steps:
•
First, plug the provided AC power cord female end into the unit.
•
Then, plug the AC power cord male end into the user-supplied power source.
•
Finally, switch the unit ON.
Rear Panel Connections
MBT-5000A L-Band Up/Down Converter System

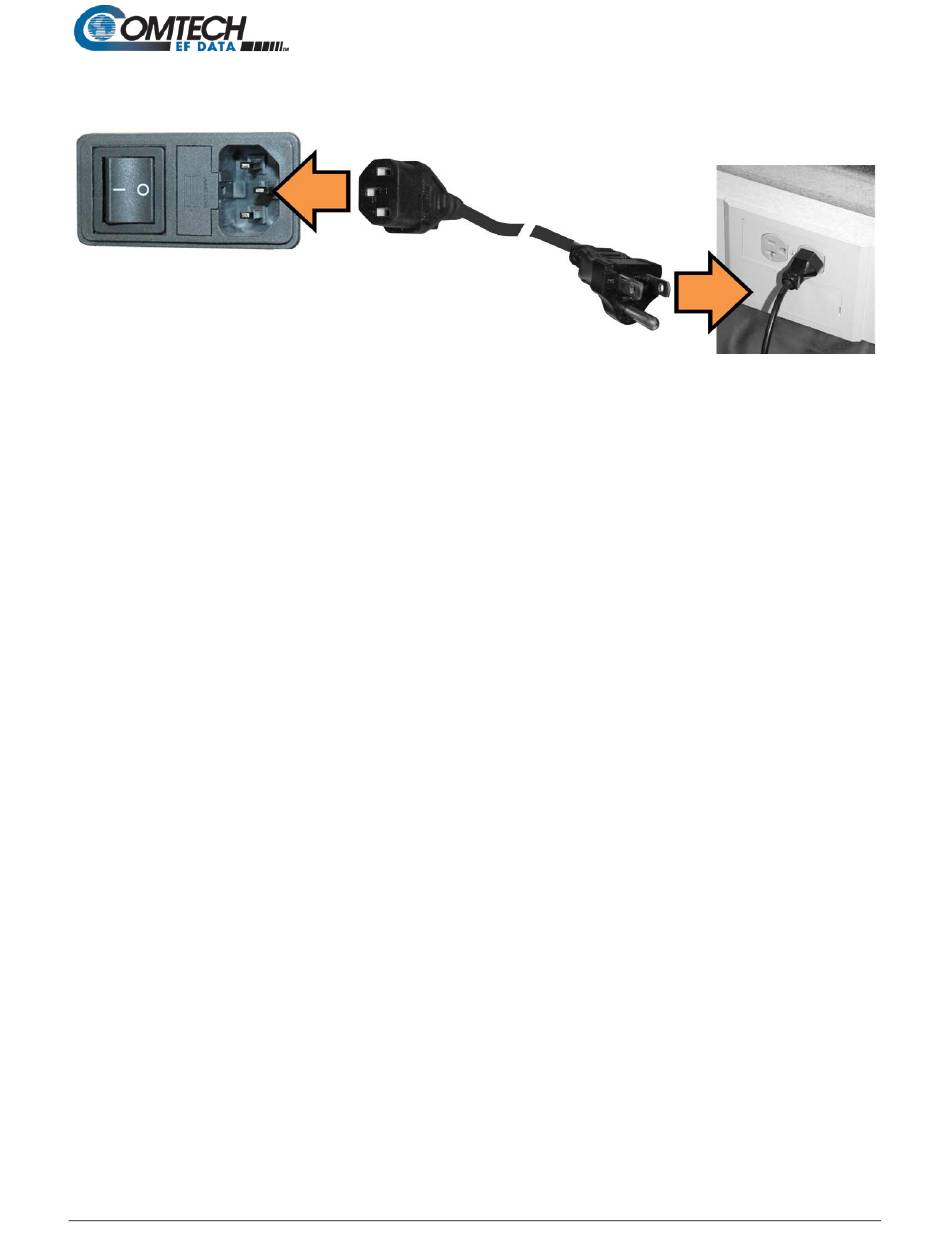

Figure 3-6. MBT-5000A AC Power
