4.2
Getting Started: Prepare for the Firmware Download
1. First, identify the MBT-5000A assigned Ethernet Traffic IP Address and the firmware
information (number/revision letter/version number).
User-supplied items needed:
•
•

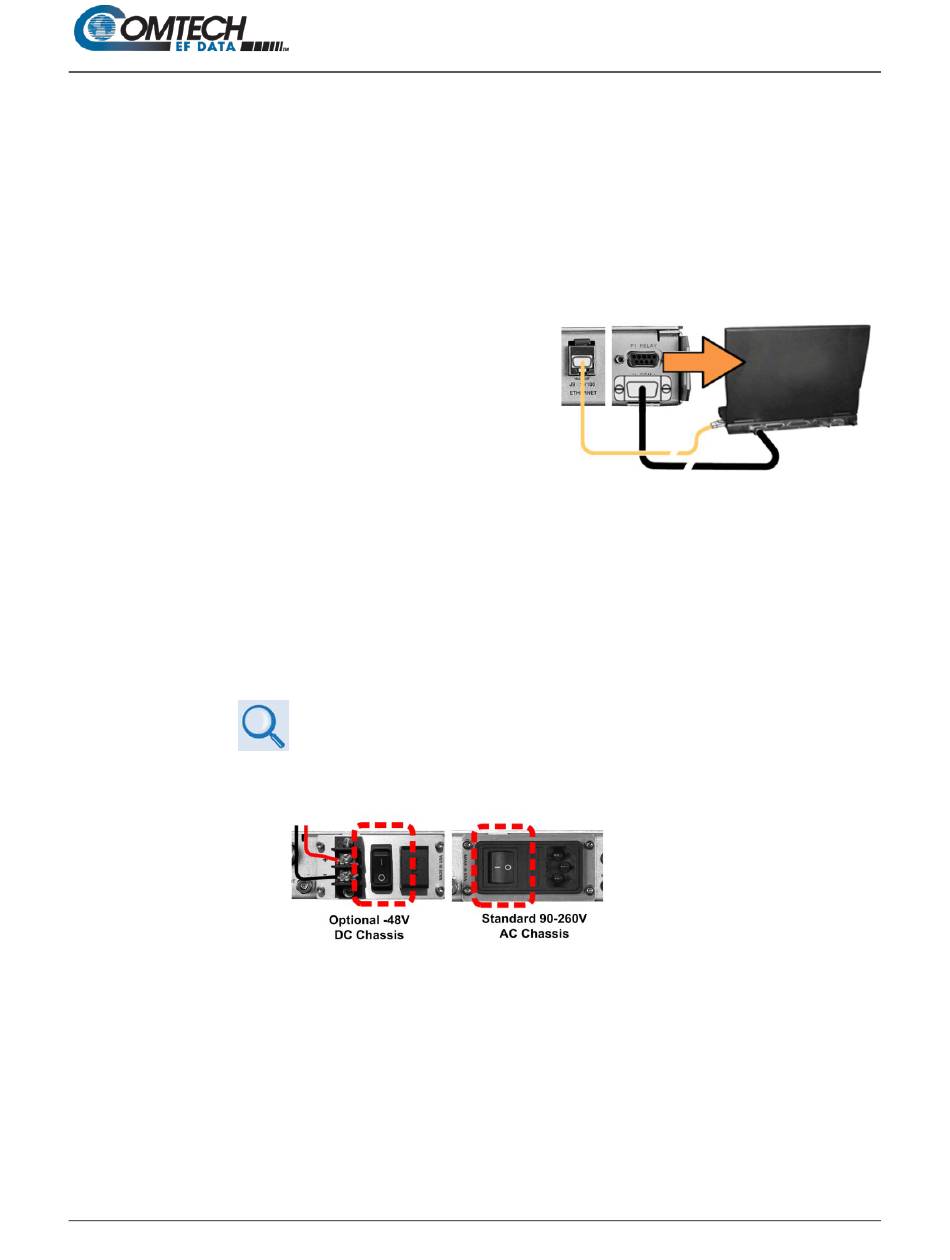

a. Use an Ethernet hub, switch, or direct
cable connection to connect the MBT-
5000A rear panel 'J9 | 10/100
ETHERNET' port to an Ethernet port on
the User PC.
b. Use the 9-pin serial cable to connect the
MBT-5000A rear panel 'J1 | COM 1' port
to a serial port on the User PC.
c. On the PC, open the terminal emulator program. Configure the program serial port
communication and terminal display settings. The factory default operation requires
these settings:
• 38500 bps (Baud Rate) • 8 Data Bits
• Parity = NO
• Local Echo = ON
d. On the MBT-5000A, turn on the power.
Upgrading Firmware
A Microsoft Windows-based PC, equipped with available serial and Ethernet
ports; a compatible Web browser (e.g., Internet Explorer); and a terminal
emulator program (e.g., Tera Term or HyperTerminal).
A 9-pin serial cable and a standard CAT5 Ethernet cable to connect the MBT-
5000A to the user PC.
Refer to your terminal emulator program HELP feature or user guide for
operating and configuration instructions.
MBT-5000A L-Band Up/Down Converter System
• Port Flow Control =
NONE
4–3
Revision 1
• 1 Stop Bit
• Display New line Rx/Tx: CR
MN-MBT-5000A
