1) The European EMC Directive (EN55022, EN50082-1) requires using properly shielded
cables for DATA I/O. These cables must be double-shielded from end-to-end,
ensuring a continuous ground shield.
2) See Sect. 3.1 Cabling Connections Types for information about each connector type
and its connection instructions.
3.2.1
IF Connector Group
Appendix A. BUC-5000Ax/BDC-5000Ax MODULE REMOVAL/INSTALLATION
These connectors are integral components of the BUC/BDC modules installed in
the MBT-5000A chassis Side A and Side B module bays.

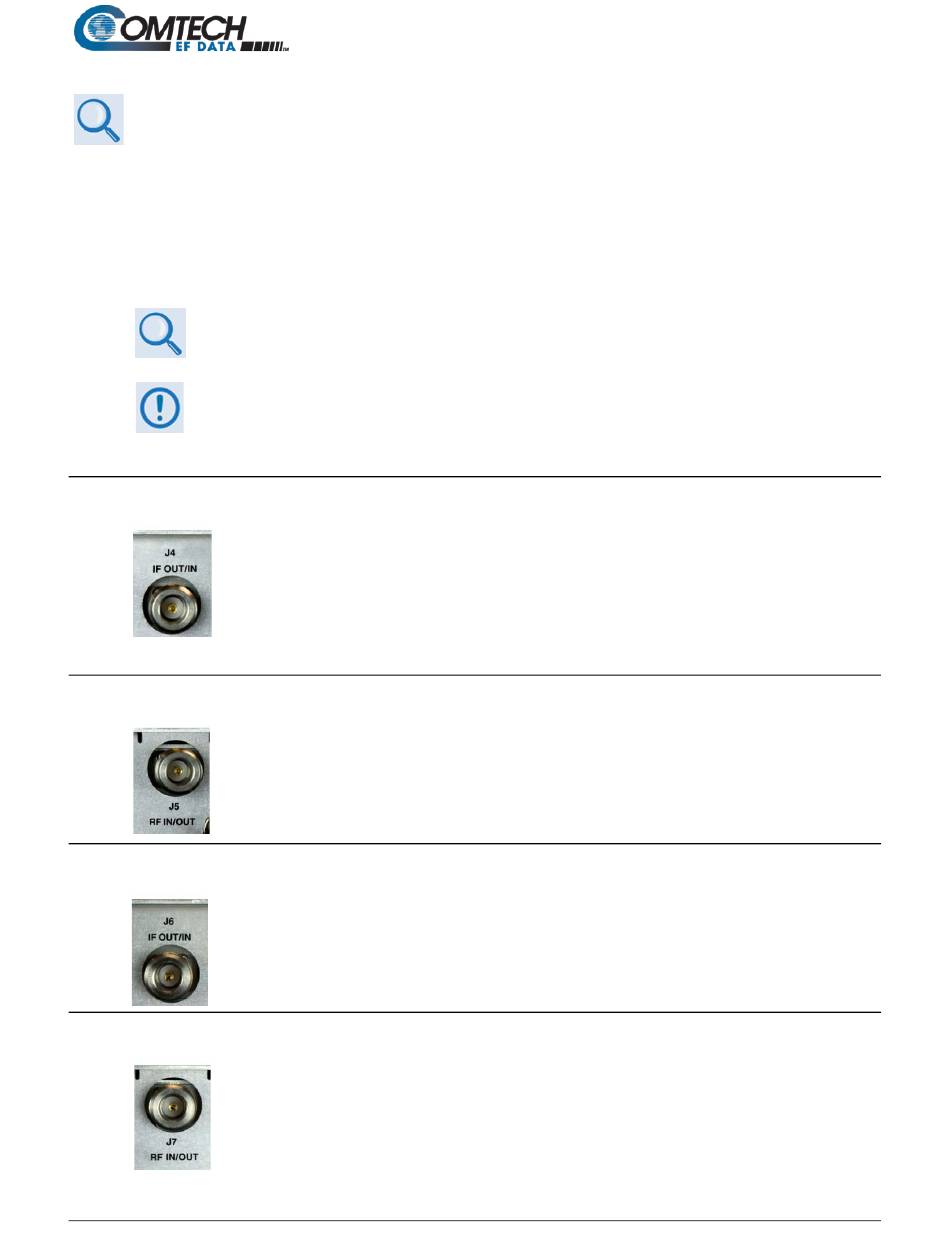

3.2.1.1
'J4 | IF OUT/IN' (Side B) Connector (Type 'N' Female)
This connector is a Type 'N' female connector that provides either an L-Band input
signal interface (with the BUC-5000A Block Upconverter installed), or an L-Band
output signal interface (with the BDC-5000A Block Downconverter installed).
3.2.1.2
'J5 | RF IN/OUT' (Side B) Connector (Type 'N' Female)
This connector is a Type 'N' female connector that provides either an upconverted RF
output signal (with the BUC-5000A Block Upconverter installed), or a downconverted
RF input signal (with the BDC-5000A Block Downconverter installed).
3.2.1.3
'J6 | IF OUT/IN' (Side A) Connector (Type 'N' Female)
This connector is a Type 'N' female connector that provides either an L-Band input
signal interface (with the BUC-5000A Block Upconverter installed), or an L-Band
output signal interface (with the BDC-5000A Block Downconverter installed).
3.2.1.4
'J7 | RF IN/OUT' (Side A) Connector (Type 'N' Female)
This connector is a Type 'N' female connector that provides either an upconverted RF
output signal (with the BUC-5000A Block Upconverter installed), or a downconverted
RF input signal (with the BDC-5000A Block Downconverter installed).
Rear Panel Connections
MBT-5000A L-Band Up/Down Converter System
3–6
Revision 1
MN-MBT-5000A
