Optional Rear-Mounting Support Brackets Kit Installation

Use the follwing tools to install the KT/6228-2 (4") or KT/6228-3 (10") Rear-Mounting Support
Brackets Kit (Figure 2-3):
•
A medium Phillips screwdriver
•
A 5/32-inch SAE Allen Wrench
•
An adjustable Crescent wrench.
Detail
1 Back of Unit
2 Rack Enclosure Threaded Rear Mounting Rail (typical)
Quantity per CEFD Kit
Item
KT/6228-2
1
2
3
4
5
6

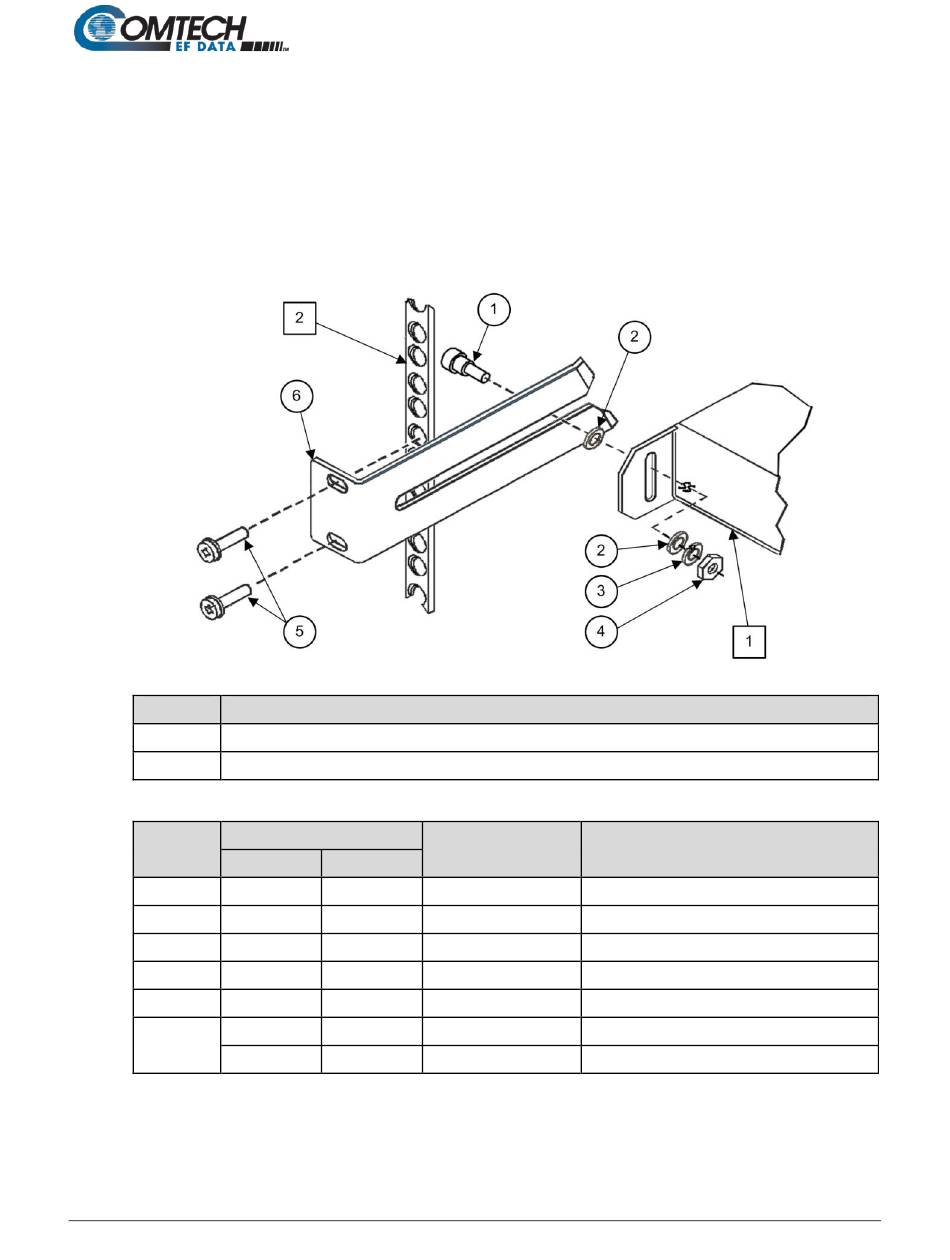

Figure 2-3. Optional Rear-Mounting Support Brackets Kit Installation

Installation
Part Number
KT/6228-3
2 2 HW/10-32SHLDR
4 4 HW/10-32FLT
2 2 HW/10-32SPLIT
2 2 HW/10-32HEXNUT
4 4 HW/10-32x1/2RK
2 – FP/6138-2
– 2 FP/6138-3
MBT-5000A L-Band Up/Down Converter System
Description
Description
Shoulder Screw, #10
Flat Washer, #10
Lock Washer, #10
Hex Nut, #10
Bolt, #10, Rear Support Bracket
Bracket, Rear Support – 4"
Bracket, Rear Support – 10"
