6.5.5.4.2 Status | Status - Comtech EF Data MBT-5000A Installation And Operation Manual

6.5.5.4.2 Status | Status

Use this read-only page to review pertinent information about the MBT-5000A operating
configuration.
(General Information)
Product identification (i.e., model and serial numbers), active software image information, and
active operating temperature and power/current readings are provided here. Note the following:
•
Valid ConvA/ConvB LNA Current readings are provided only if the pertinent MBT-5000A
BDC is optionally configured with an LNA. These parameters otherwise will display as
N/A if the pertinent converter is a BUC.
•
Valid Conv A/ConvB Forward RF Power readings are provided only if the pertinent
MBT-5000A up BUC is optionally configured with the Power Monitor feature. These
parameters otherwise will display as N/A if the pertinent converter is a BDC.
•
Valid Power Supply 2 and Local Switch Position information is provided with redundant
configurations only.
•
Converter A or B Odomter, in hours.
•
Converter A or B Summary Fault State (ON or OFF).
•
Base Odomter, in hours.
•
Base Fault Status (No Faults or No Errors).
Ethernet-based Remote Product Management
MBT-5000A L-Band Up/Down Converter System

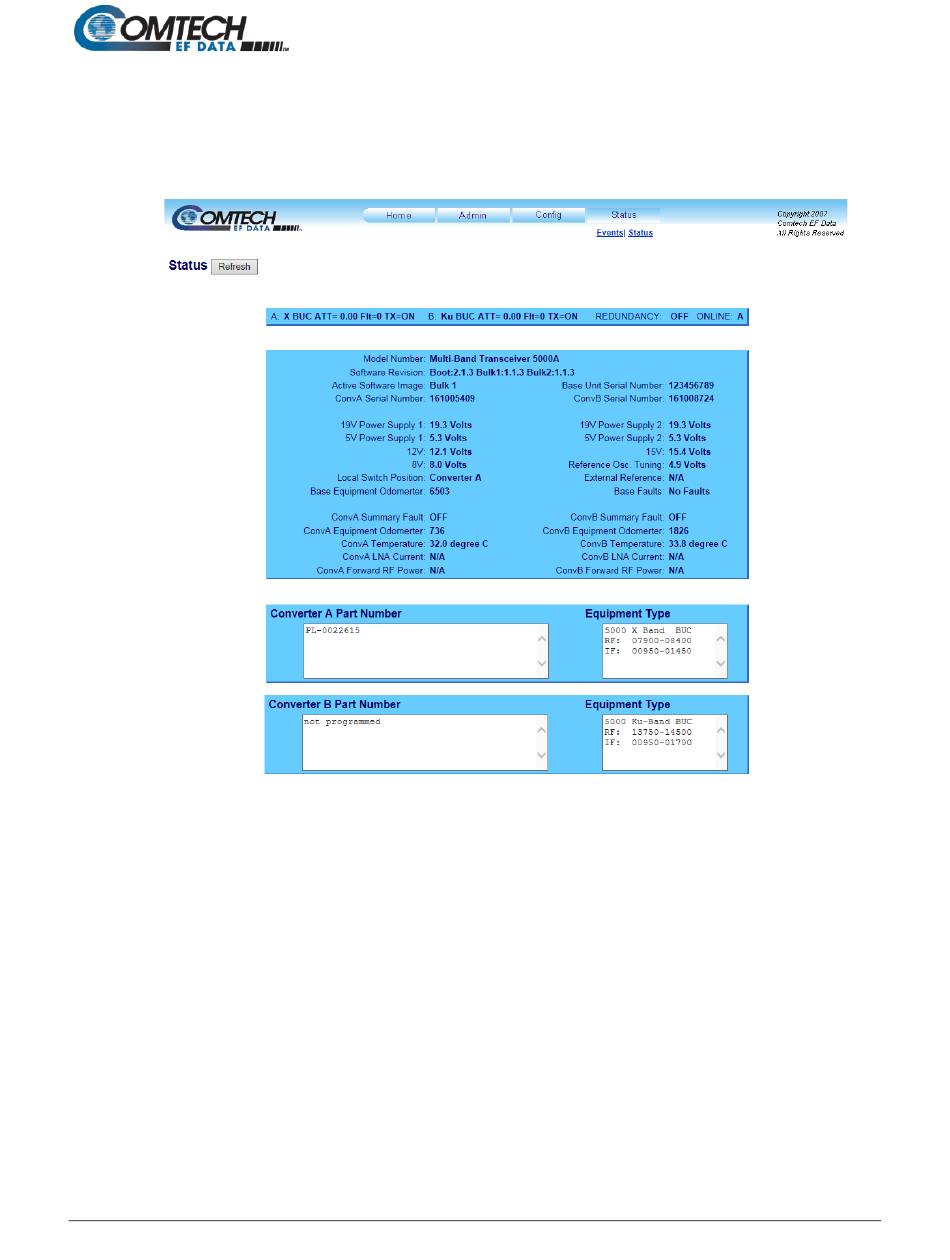

Figure 6-10. Status | Status Page
