3.2

MBT-5000A Cabling Connections

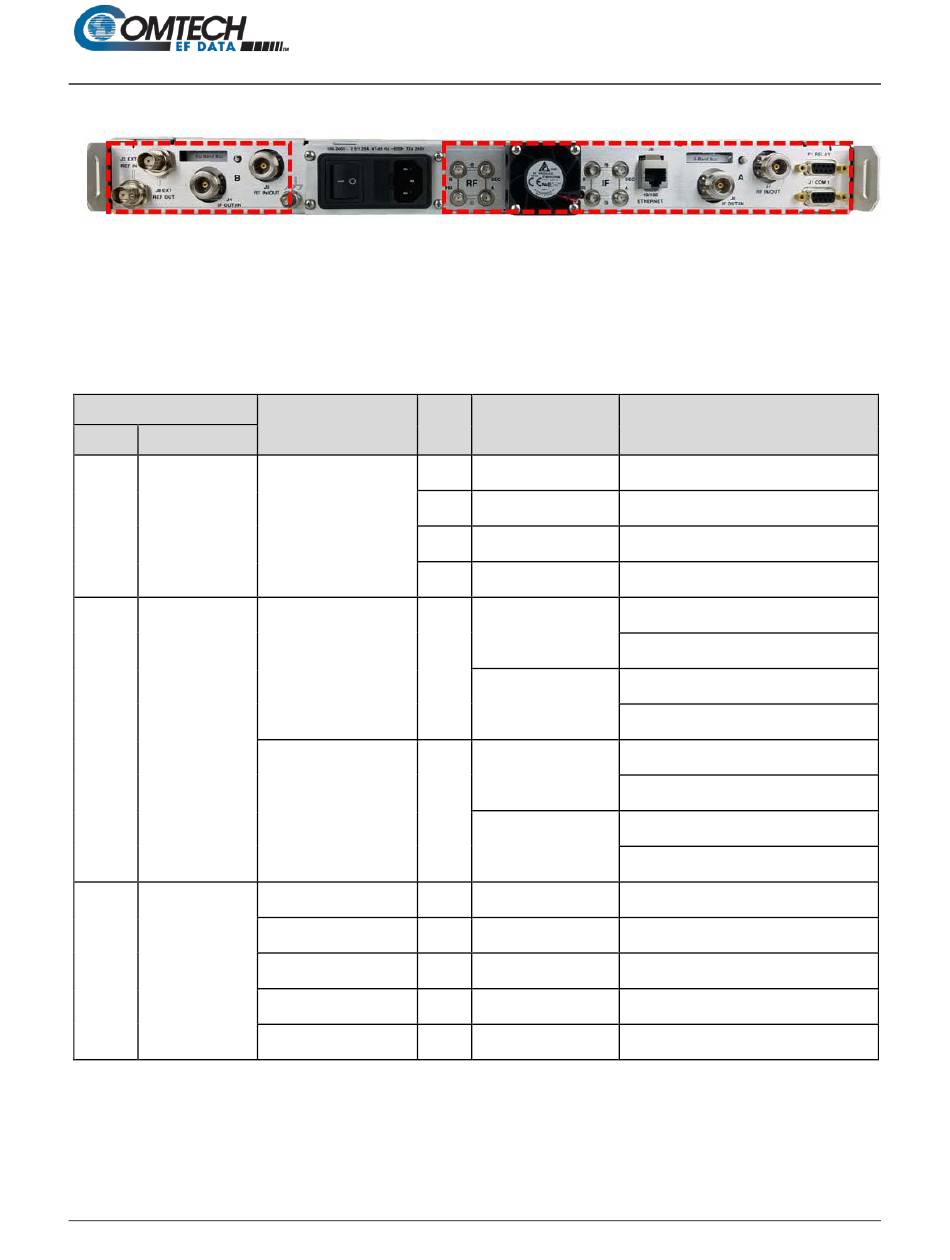

The MBT-5000A rear panel connectors, shown here in Figure 3-1, provide all necessary external
connections between the unit and other equipment. The table that follows summarizes the
connectors provided here, grouped according to service function.
Connector Group
Sect. Service Type
3.2.1
IF Group
3.2.2
Optional
Redundancy
Groups
3.2.3 Utility Group
Rear Panel Connections
(Optional Redundancy Unit w/Standard AC Power Shown)

Figure 3-3. MBT-5000A Cabling Connections

Table 3-1. MBT-5000A Connectors

Ref
Connector Type
Des
J4
J5
Type 'N' female
J6
J7
Type 'SMA' female RF
Type 'SMA' female IF
BNC female J2
BNC female J8
RJ-45 J9
9-Pin Type 'D' female P1
9-Pin Type 'D' male J1
MBT-5000A L-Band Up/Down Converter System
Connector Name Function
IF OUT/IN Side B Module IF output/input
RF IN/OUT Side B Module RF input/output
IF OUT/IN Side A Module IF output/input
RF IN/OUT Side A Module RF input/output
Redun (top): To J5 RF In/Out
B SEC
Redun (bottom): To PA or LNA
Redun (top): To Termination
A PRI
Redun (bottom): To J7 RF In/Out
Redun (top): To J4 IF In/Out
B SEC
Redun (bottom): To Modem
Redun (top): To Termination
A PRI
Redun (bottom): To J6 IF In/Out
EXT REF IN External10 MHz Reference input
EXT REF OUT External 10 MHz Reference output
10/100 ETHERNET 10/100 Ethernet M&C
RELAY Form C Side Alarm
COM 1 Serial Remote Control Interface
