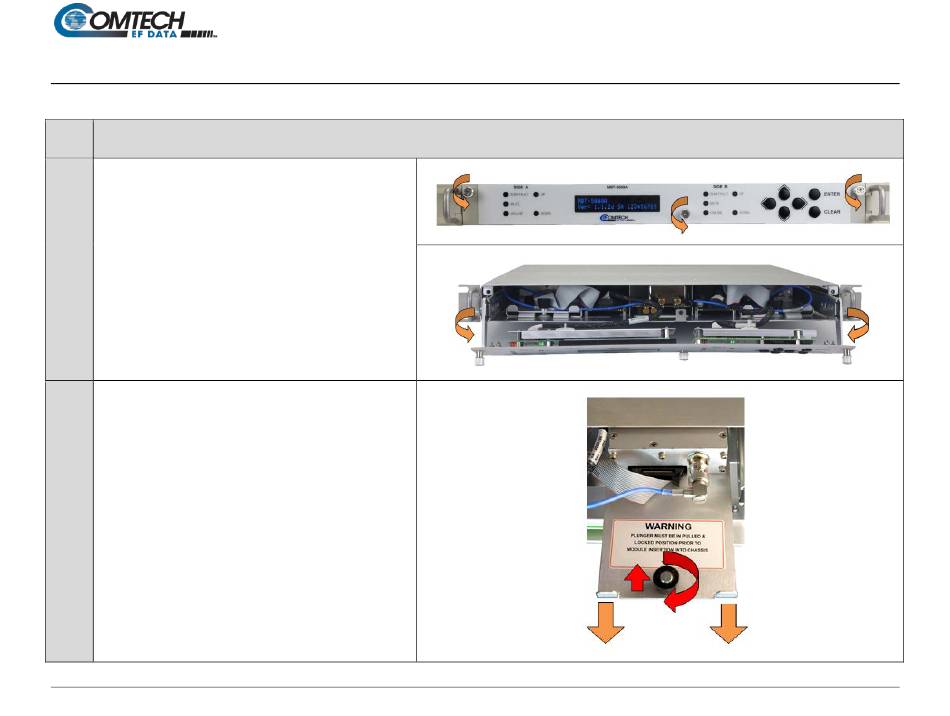

Module Removal Procedure

Step Task
1 Access the modules:
Loosen the three front panel thumb screws.
Then, drop the front panel to access both module
bays.
2 Remove the module:
First, lift the module plunger pin by turning it
clockwise to lock it into removal position.
Then, use the thumb tabs to slide the module
outward to gain access to the front connectors.
