LBC-4000 L-Band Up/Down Converter System
Ethernet Interface Operation

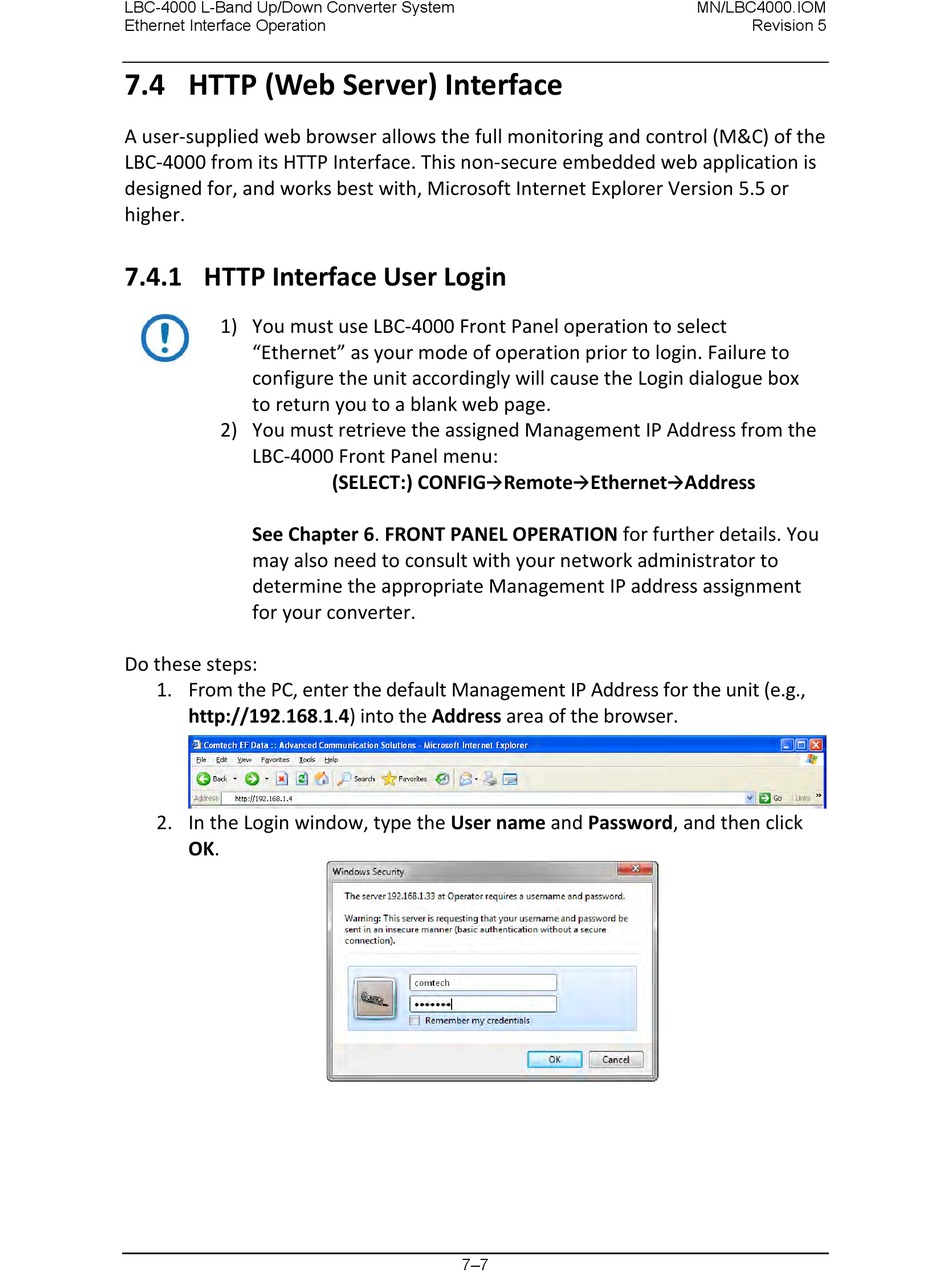

7.4 HTTP (Web Server) Interface

A user-supplied web browser allows the full monitoring and control (M&C) of the
LBC-4000 from its HTTP Interface. This non-secure embedded web application is
designed for, and works best with, Microsoft Internet Explorer Version 5.5 or
higher.

7.4.1 HTTP Interface User Login

1) You must use LBC-4000 Front Panel operation to select
"Ethernet" as your mode of operation prior to login. Failure to
configure the unit accordingly will cause the Login dialogue box
to return you to a blank web page.
2) You must retrieve the assigned Management IP Address from the
LBC-4000 Front Panel menu:
See Chapter 6. FRONT PANEL OPERATION for further details. You
may also need to consult with your network administrator to
determine the appropriate Management IP address assignment
for your converter.
Do these steps:
1. From the PC, enter the default Management IP Address for the unit (e.g.,
http://192.168.1.4) into the Address area of the browser.
2. In the Login window, type the User name and Password, and then click
OK.
(SELECT:) CONFIG Remote

7–7
MN/LBC4000.IOM
Revision 5
Ethernet Address
 
