5.2
Front Panel Operation
Figure 5-2 shows the hierarchal structure of the MBT-5000A menu tree from the SELECT: (Main)
menu on down. The structure helps to prevent invalid command entry.

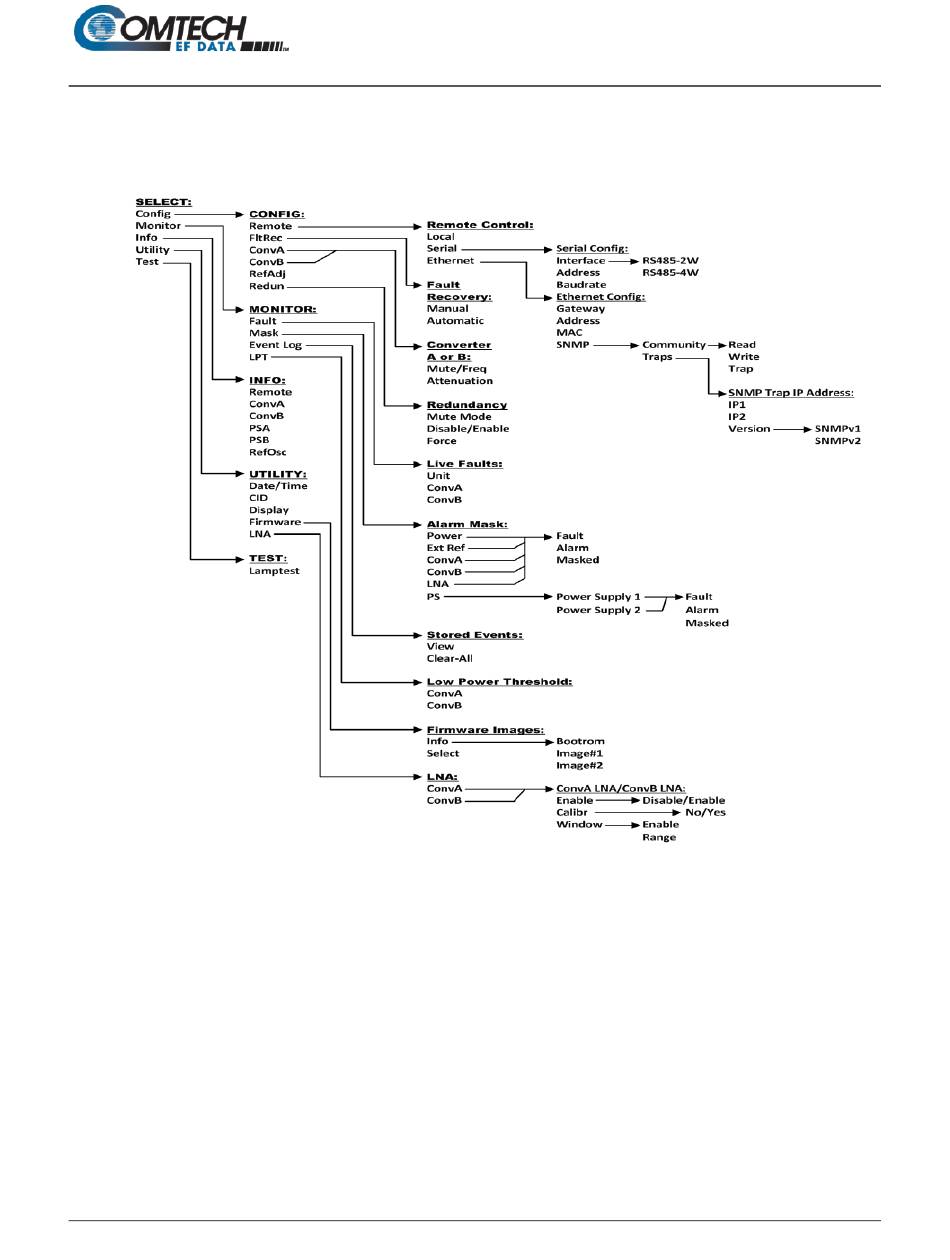

Figure 5-2. MBT-5000A Front Panel Menu Tree (Firmware Ver. 1.1.1)
Front Panel Operation
MBT-5000A L-Band Up/Down Converter System
5–6
Revision 1
MN-MBT-5000A
