The types of coaxial cables used by CEFD are 'BNC', 'TNC', 'N', 'F', and 'SMA'. Coaxial cables
(plugs) and their mating connectors (jacks/sockets) are available in two coupling styles –
Bayonet or Threaded:
•
Bayonet Coupling Style: The jack has a pair of guide posts that accommodate the
plug's lockdown slots. This lockdown design provides secure assembly without over-
tightening the connection.
•
Threaded Coupling Style: The jack features external threads. The plug shell features
internal threads, and has either a knurled outer surface to permit hand-tightening of the
connection, or hex flats to accommodate torqued installation.
Connection Instructions:
•
Bayonet Coupling Connections: Use the plug slots to guide, then slide the plug onto
the jack posts. Then, turn the plug clockwise until the jack posts are fully seated within
the plug slot.
•
Threaded Coupling Connections: Engage the plug onto the jack threads, and then turn
the plug clockwise until it is fully threaded onto the jack. Do not over-tighten the
connection.

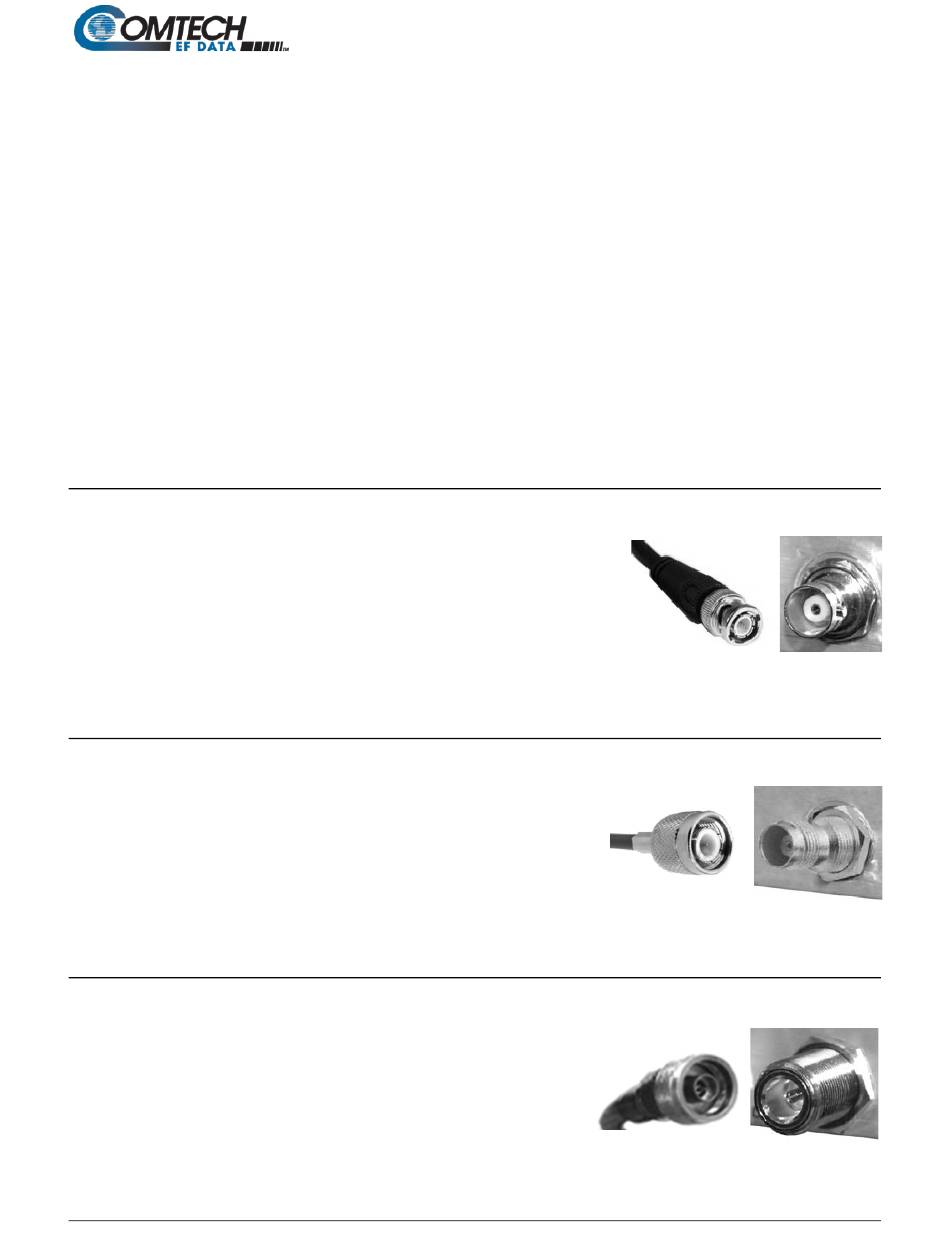

3.1.1.1

Type 'BNC'

BNC plugs and jacks feature a Bayonet Coupling design.
3.1.1.2

Type 'TNC'

TNC plugs and jacks feature a Threaded Coupling design
similar to Type 'N', Type 'F,' and Type 'SMA' connectors.
3.1.1.3

Type 'N'

Type 'N' connectors feature a Threaded Coupling
design similar to Type 'TNC', Type 'F', and Type 'SMA'
connectors.
