Step Task

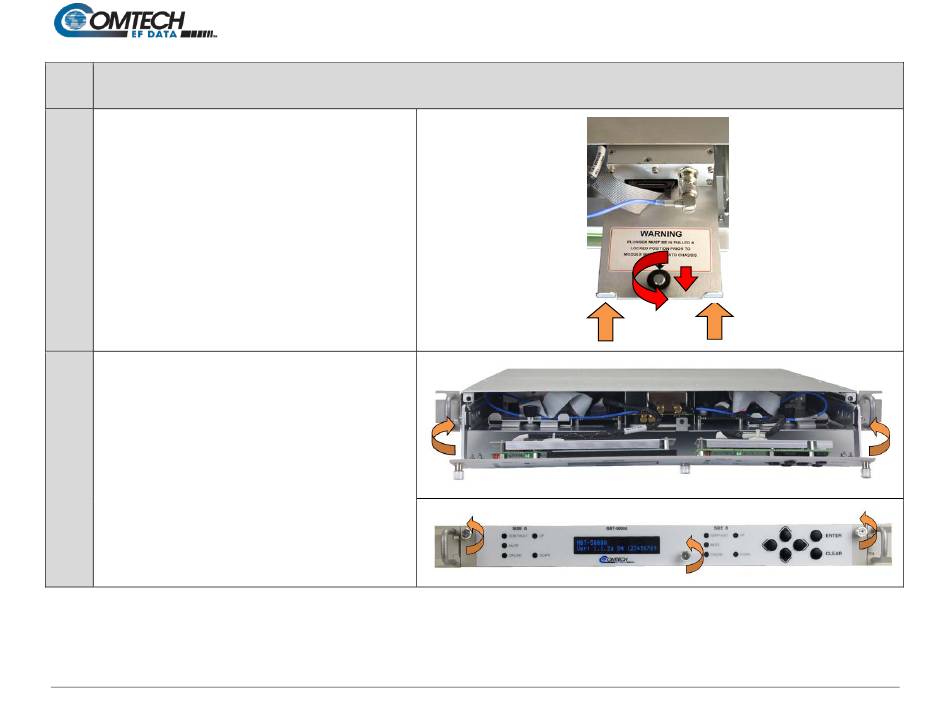

4 Use the front thumb tabs on the module to slide the
module the remainder of the way into the internal
housing.
Once the module is fully engaged within the internal
housing, turn the plunger knob counterclockwise to
drop the pin into the locked position.
5 Swing the front panel back into operating position
and finger-tighten the three thumbscrews.
The module installation has been completed and the MBT-5000A L-Band Up/Down Converter System is ready to be connected to other equipment.
See Chapter 3. REAR PANEL CONNECTIONS for further information.
