Status Pages
The hyperlinks available under the 'Status' tab provide you with access to event logging, operational
statistics, and status windows. Click the Events or Status hyperlink to continue.
6.5.5.4.1 Status | Events
Use this page to review pertinent information about stored events, and to define the MBT-5000A
alarm parameters that determine how those events are triggered.
Current Faults (Display only the highest)
This read-only section displays the running tally of stored events log for the entire MBT-5000A
unit (i.e., Base Unit and Converters A and B).
Unread Stored Events
This section features a read-only scrollable window that displays the unread stored events log in
sequential, date-stamped format. A running tally of the number of unread stored events is
displayed in the window header. The unit returns and displays the five oldest stored events in the
alarm log. All events that are read from the log are also automatically removed from the log.
Ethernet-based Remote Product Management
MBT-5000A L-Band Up/Down Converter System

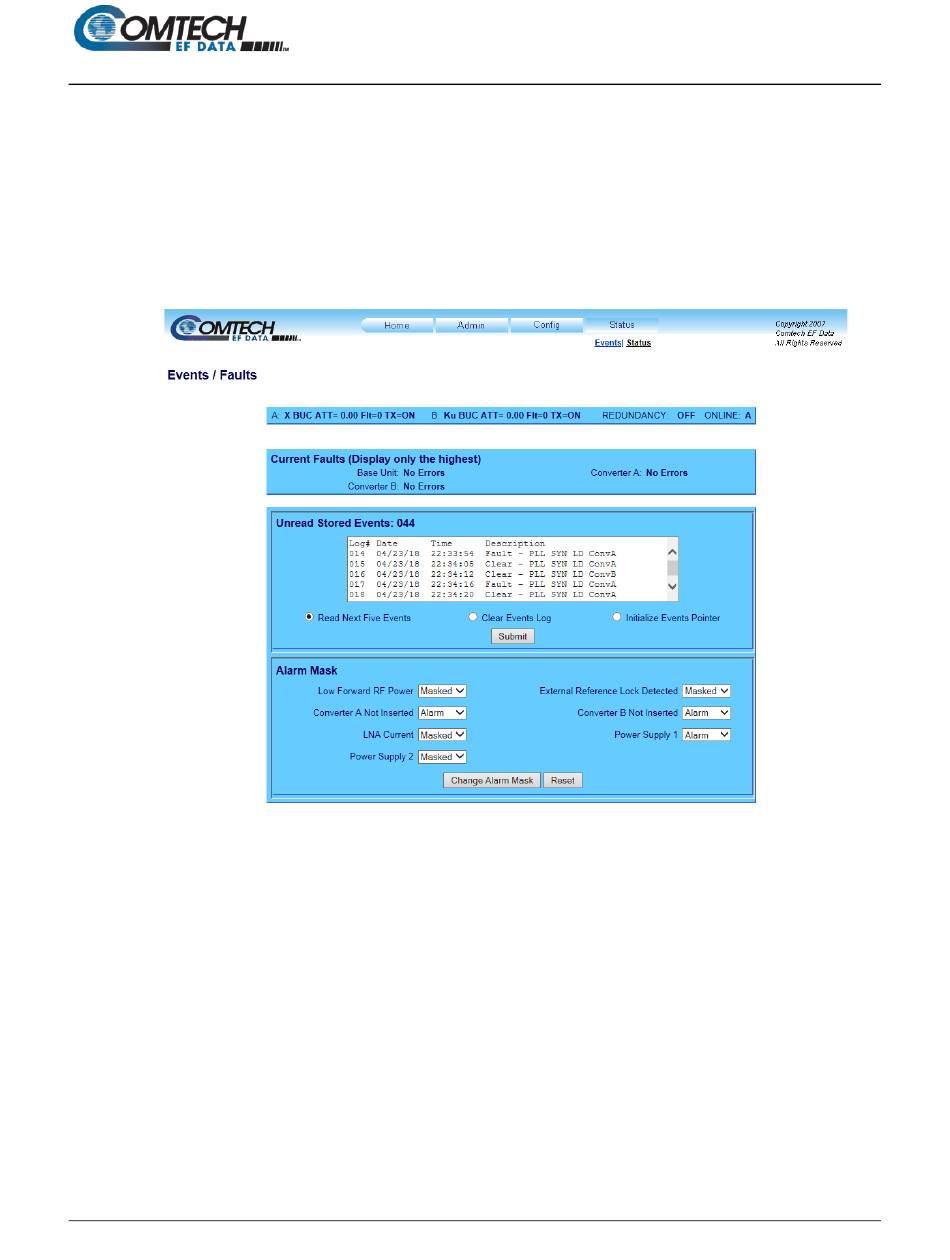

Figure 6-9. Status | Events Page
6–23
Revision 1
MN-MBT-5000A
