Programmed Scan And Fine Programmed Scan; Dprogrammed Scan Operation - Icom IC-705 Advanced Manual

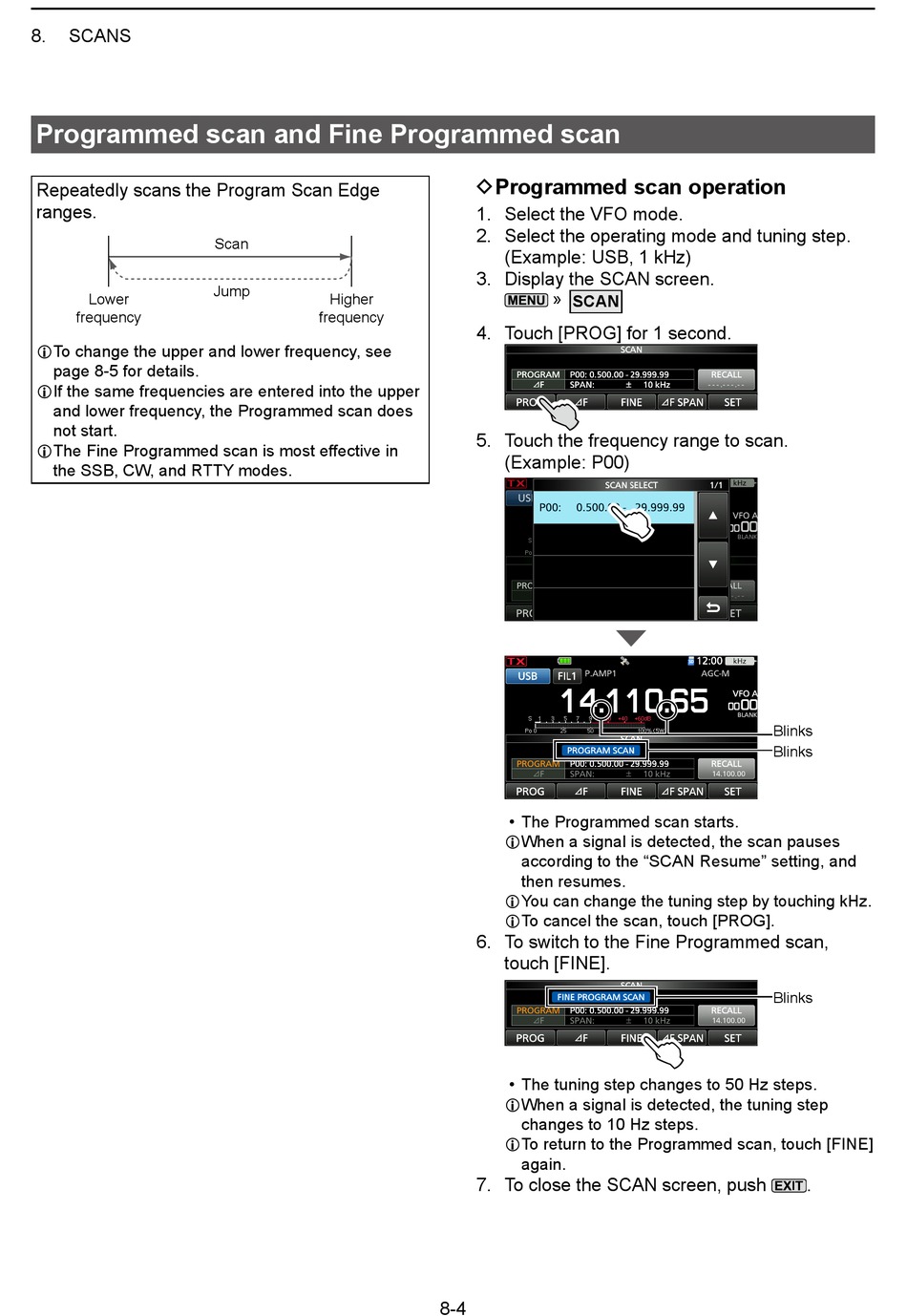

8. SCANS

Programmed scan and Fine Programmed scan

Repeatedly scans the Program Scan Edge
ranges.
Lower
frequency
LTo change the upper and lower frequency, see
page 8-5 for details.
LIf the same frequencies are entered into the upper
and lower frequency, the Programmed scan does
not start.
LThe Fine Programmed scan is most effective in
the SSB, CW, and RTTY modes.
Scan
Jump
Higher
frequency

DProgrammed scan operation

1. Select the VFO mode.
2. Select the operating mode and tuning step.
(Example: USB, 1 kHz)
3. Display the SCAN screen.
» SCAN
4. Touch [PROG] for 1 second.
5. Touch the frequency range to scan.
(Example: P00)
• The Programmed scan starts.
LWhen a signal is detected, the scan pauses
according to the "SCAN Resume" setting, and
then resumes.
LYou can change the tuning step by touching kHz.
LTo cancel the scan, touch [PROG].
6. To switch to the Fine Programmed scan,
touch [FINE].
• The tuning step changes to 50 Hz steps.
LWhen a signal is detected, the tuning step
changes to 10 Hz steps.
LTo return to the Programmed scan, touch [FINE]
again.
7. To close the SCAN screen, push
8-4
Blinks
Blinks
Blinks
.
