ICOM IC-705 MAT-705 Tuner Tray Installation

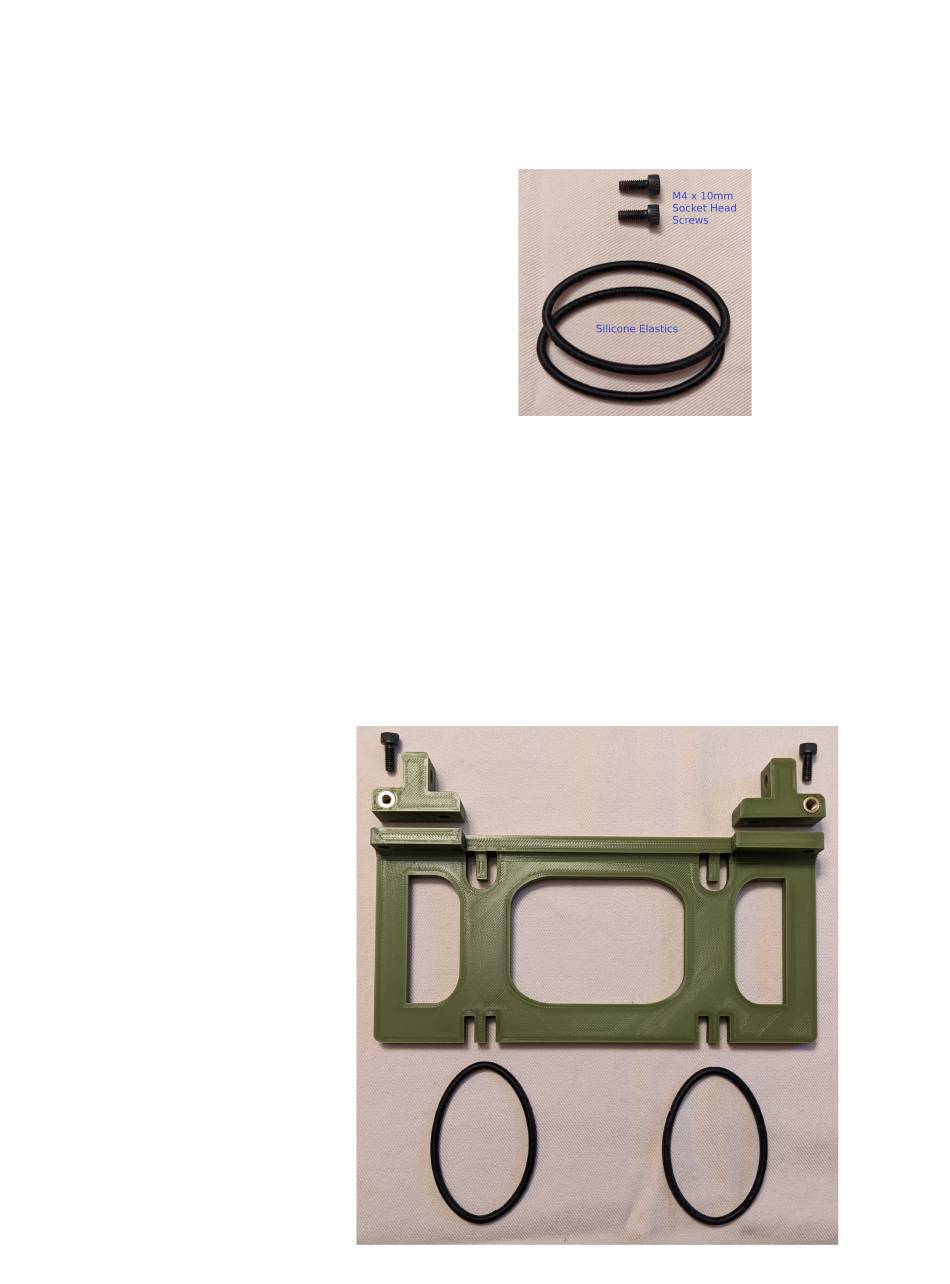

Hardware Supplied

2 Socket head screws M4 x 10mm, black finish

2 Silicone elastic bands, black

Your hardware packet will contain one spare of each type of hardware, in case the cat knocks

something off the workbench and it rolls under the bookshelf.

Tools Needed (not included.)

2.5mm and 3mm hex keys

Small adjustable wrench for lock nuts.

Tray Parts

2 Replacement handle brackets

1 Tray

Need help?

Do you have a question about the IC-705 and is the answer not in the manual?

Questions and answers

Summary of Contents for Icom IC-705

Page 1 ICOM IC-705 MAT-705 Tuner Tray Installation Copyright 2023 Michael Aiello N2HTT, all rights reserved. Rev A 25-Feb-2023 Hardware Supplied 2 Socket head screws M4 x 10mm, black finish 2 Silicone elastic bands, black Your hardware packet will contain one spare of each type of hardware, in case the cat knocks something off the workbench and it rolls under the bookshelf.
Page 2 Assembly Instructions Please read and review all of the instructions before starting the the installation of the tray on your IC- 705 frame. 1. Loosen and completely remove the two nylon insert nuts that secure the handle to the frame. Put these aside, we will use them again when we re-attach the handle.
Page 3 3. Remove the original handle brackets. You may wish to save these should you ever decide to remove the tray from your frame. Put the two M4 x 12 screws aside, we will use them again reassembling the frame. 4. Now let’s preassemble the tray. Attach the tray to the replacement handle brackets using two M4 x 10mm screws, but do not tighten the screws more than finger tight at this time.
Page 4 6. Attach the brackets holding the tray to the frame, using the screws you put aside in step 3. Line the brackets up flush with the front of the frame, and tighten securely. Then you can fully tighten the socket head screws holding the tray to the brackets. 7.
Page 5 You can also use the elastics to manage the cables connecting the tuner to the IC-705. And the tray can be used for other items if desired, such as a small battery, or trail snacks.
