Programmed Scan And Fine Programmed Scan; D Programmed Scan Operation - Icom IC-905 Advanced Manual

7
SCANS

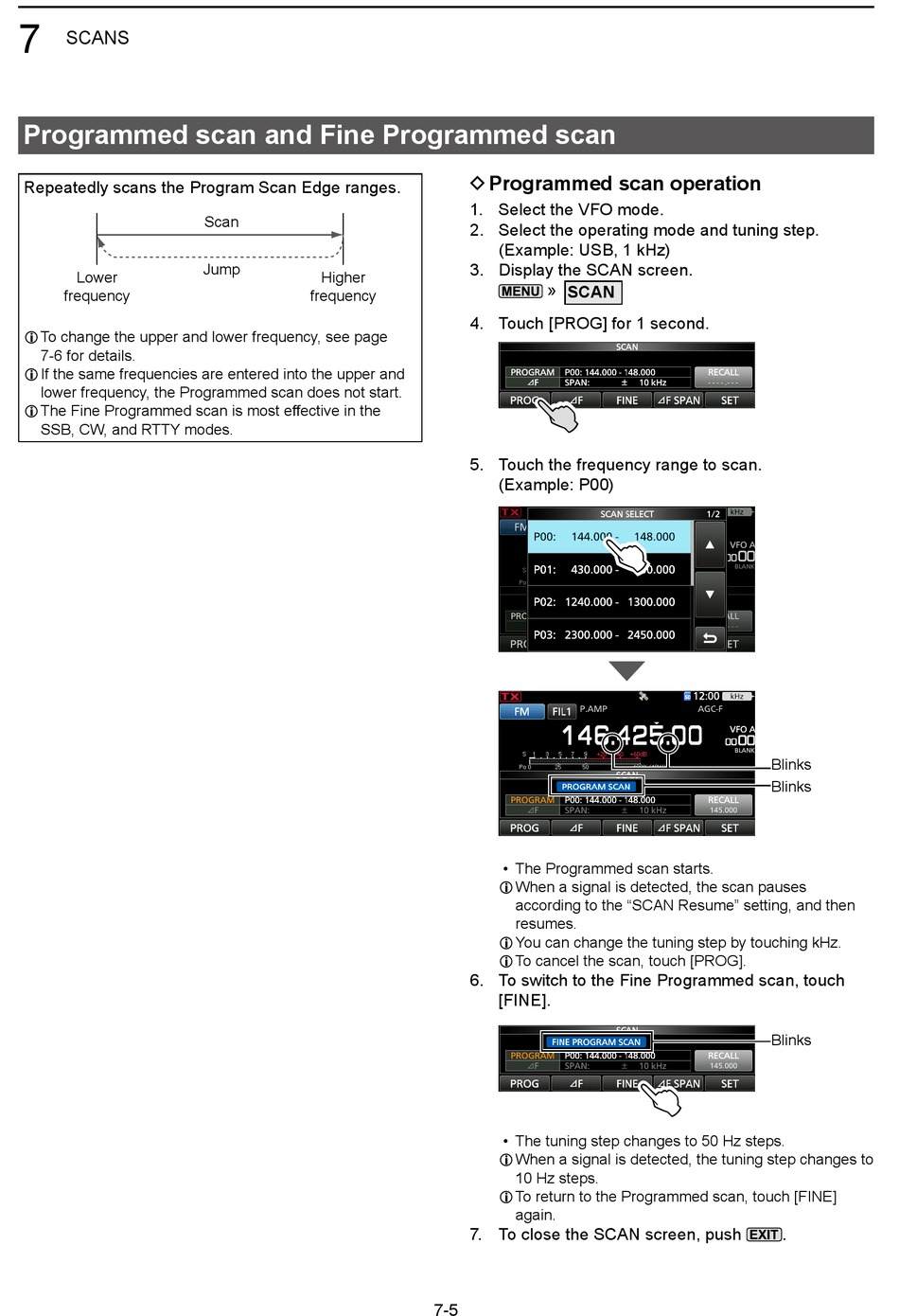

Programmed scan and Fine Programmed scan

Repeatedly scans the Program Scan Edge ranges�
Lower
frequency
L To change the upper and lower frequency, see page
7-6 for details�
L If the same frequencies are entered into the upper and
lower frequency, the Programmed scan does not start�
L The Fine Programmed scan is most effective in the
SSB, CW, and RTTY modes�
Scan
Jump
Higher
frequency

D Programmed scan operation

1� Select the VFO mode�
2� Select the operating mode and tuning step�
(Example: USB, 1 kHz)
3� Display the SCAN screen�
» SCAN
4� Touch [PROG] for 1 second�
5� Touch the frequency range to scan�
(Example: P00)
• The Programmed scan starts�
L When a signal is detected, the scan pauses
according to the "SCAN Resume" setting, and then
resumes�
L You can change the tuning step by touching kHz�
L To cancel the scan, touch [PROG]�
6� To switch to the Fine Programmed scan, touch
[FINE]�
• The tuning step changes to 50 Hz steps�
L When a signal is detected, the tuning step changes to
10 Hz steps�
L To return to the Programmed scan, touch [FINE]
again�
7� To close the SCAN screen, push
7-5
Blinks
Blinks
Blinks
�
