ICOM IC-705 Protective Frame Installation
Copyright 2021 Michael Aiello N2HTT, all rights reserved. Rev D 7-Feb-2021

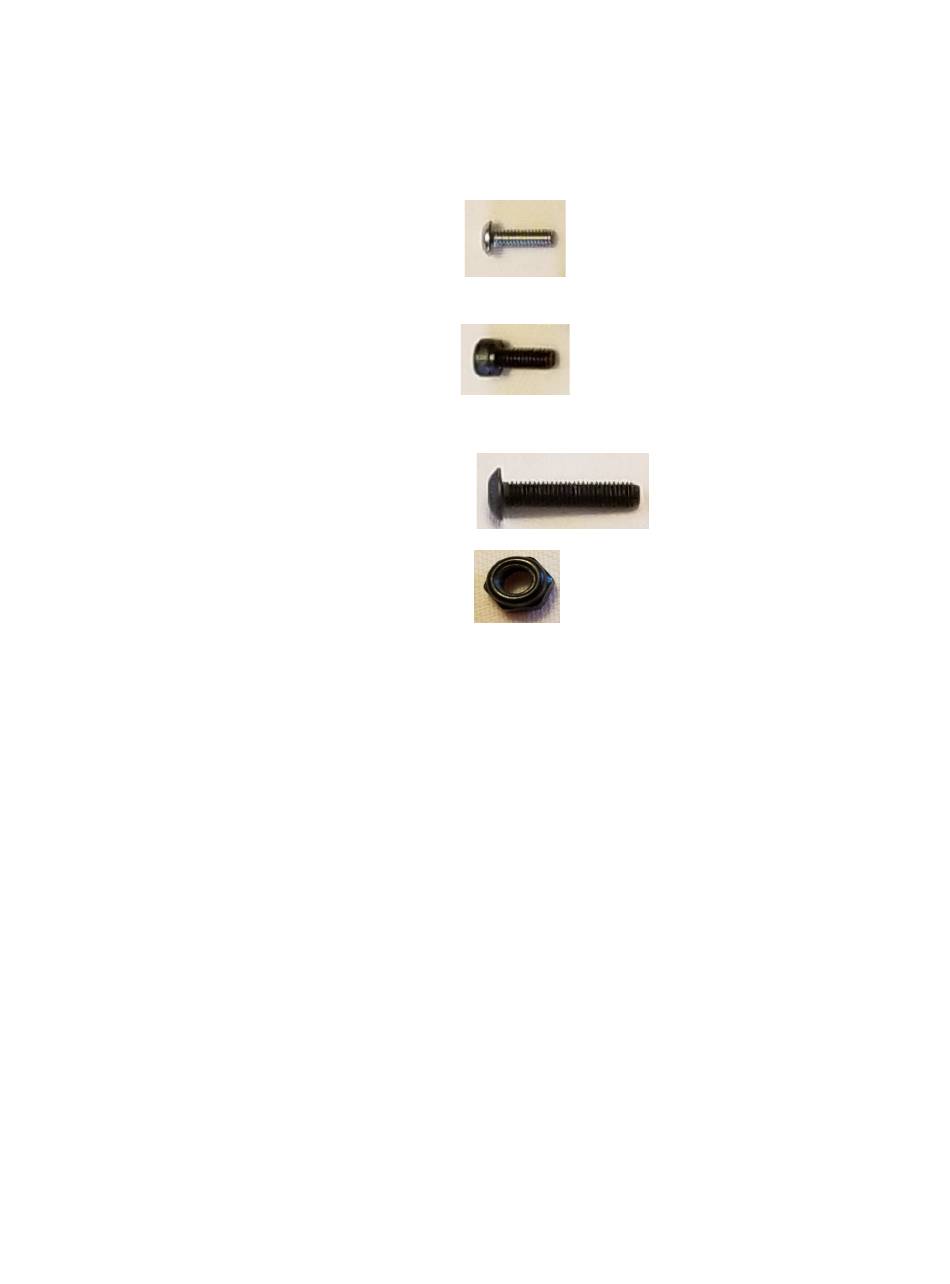

Hardware Supplied
4 Button head screws M4 x 16mm, stainless steel
10 Socket head screws M4 x 10mm, black finish
2 Socket head screws M5 x 25mm, black finish
2 Nylon Insert Hex Lock Nuts M5 , black finish
Your hardware packet will contain one spare of each type of hardware, in case the cat knocks
something off the workbench and it rolls under the bookshelf.
Tools Needed (not included.)
2.5mm and 3mm hex keys
Small adjustable wrench for lock nuts.

Advertisement

loading
Need help?

Need help?

Do you have a question about the IC-705 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Icom IC-705

  • Page 1 ICOM IC-705 Protective Frame Installation Copyright 2021 Michael Aiello N2HTT, all rights reserved. Rev D 7-Feb-2021 Hardware Supplied 4 Button head screws M4 x 16mm, stainless steel 10 Socket head screws M4 x 10mm, black finish 2 Socket head screws M5 x 25mm, black finish...
  • Page 2 Assembly Instructions Please read and review all of the instructions before starting the assembly of your frame. 1. Assemble the side rails onto the frame, using 4 M4 x 10mm socket head screws. The inside edge of the side rails should line up with the inside edge of the frame. Tighten these screws securely.
  • Page 3 3. Now mount the handle and bracket assembly onto the frame. You will notice that one side of the brackets is smoother than the other. The brackets should be attached with the smooth side facing the front of the frame. 4.
  • Page 4 5. Start attaching the frame to the bottom bracket using 2 M4 x 10mm socket head screws, but do not tighten these screws at this time. They should only be screwed in far enough to remain in the holes. We will tighten them in a later step.
  • Page 5 6. With the frame around the radio, attach the backstays to the top of the frame. Note that they each will only fit one way, with the hook hanging down over the back of the radio. If installed properly, the side of the backstay will line up with the outside of the frame.
  • Page 6 Tighten the screws firmly, making sure that the body of the backstay lines up with the top of the frame. 7. Now that the backstays are secured, you can tighten the screws holding the frame to the bottom bracket. Tighten these screws securely.
