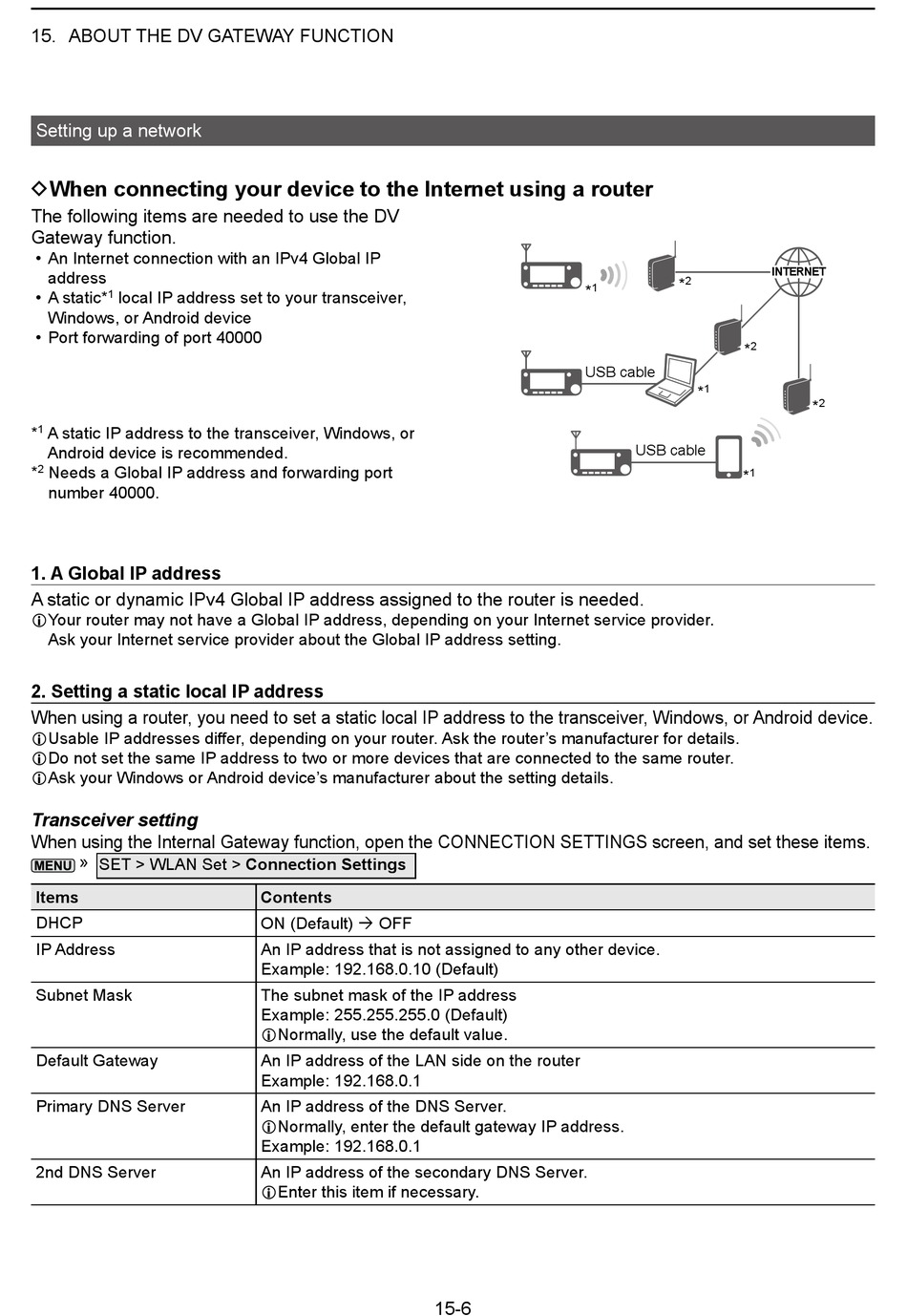

15. ABOUT THE DV GATEWAY FUNCTION
Setting up a network

DWhen connecting your device to the Internet using a router

The following items are needed to use the DV
Gateway function.
• An Internet connection with an IPv4 Global IP
address
• A static* 1 local IP address set to your transceiver,
Windows, or Android device
• Port forwarding of port 40000
* 1 A static IP address to the transceiver, Windows, or
Android device is recommended.
* Needs a Global IP address and forwarding port
2
number 40000.
1� A Global IP address
A static or dynamic IPv4 Global IP address assigned to the router is needed.
LYour router may not have a Global IP address, depending on your Internet service provider.
Ask your Internet service provider about the Global IP address setting.
2� Setting a static local IP address
When using a router, you need to set a static local IP address to the transceiver, Windows, or Android device.
LUsable IP addresses differ, depending on your router. Ask the router's manufacturer for details.
LDo not set the same IP address to two or more devices that are connected to the same router.
LAsk your Windows or Android device's manufacturer about the setting details.
Transceiver setting
When using the Internal Gateway function, open the CONNECTION SETTINGS screen, and set these items.
» SET > WLAN Set > Connection Settings
Items
DHCP
IP Address
Subnet Mask
Default Gateway
Primary DNS Server
2nd DNS Server
Contents
ON (Default)  OFF
An IP address that is not assigned to any other device.
Example: 192.168.0.10 (Default)
The subnet mask of the IP address
Example: 255.255.255.0 (Default)
LNormally, use the default value.
An IP address of the LAN side on the router
Example: 192.168.0.1
An IP address of the DNS Server.
LNormally, enter the default gateway IP address.
Example: 192.168.0.1
An IP address of the secondary DNS Server.
LEnter this item if necessary.
* 1
USB cable
15-6
