12. GPS OPERATION (ADVANCED)
Transmitting D-PRS data

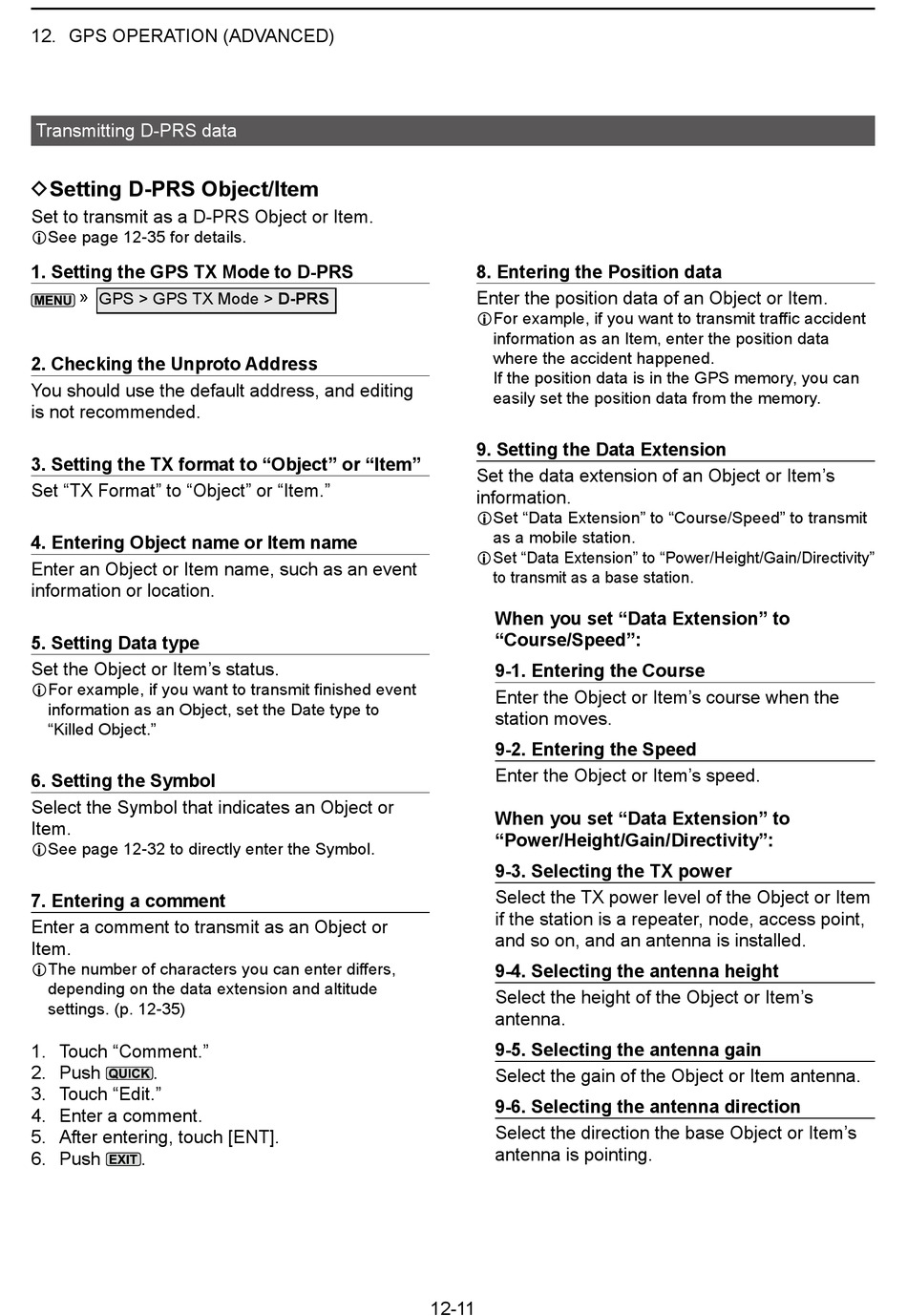

DSetting D-PRS Object/Item

Set to transmit as a D-PRS Object or Item.
LSee page 12-35 for details.
1� Setting the GPS TX Mode to D-PRS
» GPS > GPS TX Mode > D-PRS
2� Checking the Unproto Address
You should use the default address, and editing
is not recommended.
3� Setting the TX format to "Object" or "Item"
Set "TX Format" to "Object" or "Item."
4� Entering Object name or Item name
Enter an Object or Item name, such as an event
information or location.
5� Setting Data type
Set the Object or Item's status.
LFor example, if you want to transmit finished event
information as an Object, set the Date type to
"Killed Object."
6� Setting the Symbol
Select the Symbol that indicates an Object or
Item.
LSee page 12-32 to directly enter the Symbol.
7� Entering a comment
Enter a comment to transmit as an Object or
Item.
LThe number of characters you can enter differs,
depending on the data extension and altitude
settings. (p. 12-35)
1. Touch "Comment."
2. Push .
3. Touch "Edit."
4. Enter a comment.
5. After entering, touch [ENT].
6. Push .
8� Entering the Position data
Enter the position data of an Object or Item.
LFor example, if you want to transmit traffic accident
information as an Item, enter the position data
where the accident happened.
If the position data is in the GPS memory, you can
easily set the position data from the memory.
9� Setting the Data Extension
Set the data extension of an Object or Item's
information.
LSet "Data Extension" to "Course/Speed" to transmit
as a mobile station.
LSet "Data Extension" to "Power/Height/Gain/Directivity"
to transmit as a base station.
When you set "Data Extension" to
"Course/Speed":
9-1� Entering the Course
Enter the Object or Item's course when the
station moves.
9-2� Entering the Speed
Enter the Object or Item's speed.
When you set "Data Extension" to
"Power/Height/Gain/Directivity":
9-3� Selecting the TX power
Select the TX power level of the Object or Item
if the station is a repeater, node, access point,
and so on, and an antenna is installed.
9-4� Selecting the antenna height
Select the height of the Object or Item's
antenna.
9-5� Selecting the antenna gain
Select the gain of the Object or Item antenna.
9-6� Selecting the antenna direction
Select the direction the base Object or Item's
antenna is pointing.
12-11
