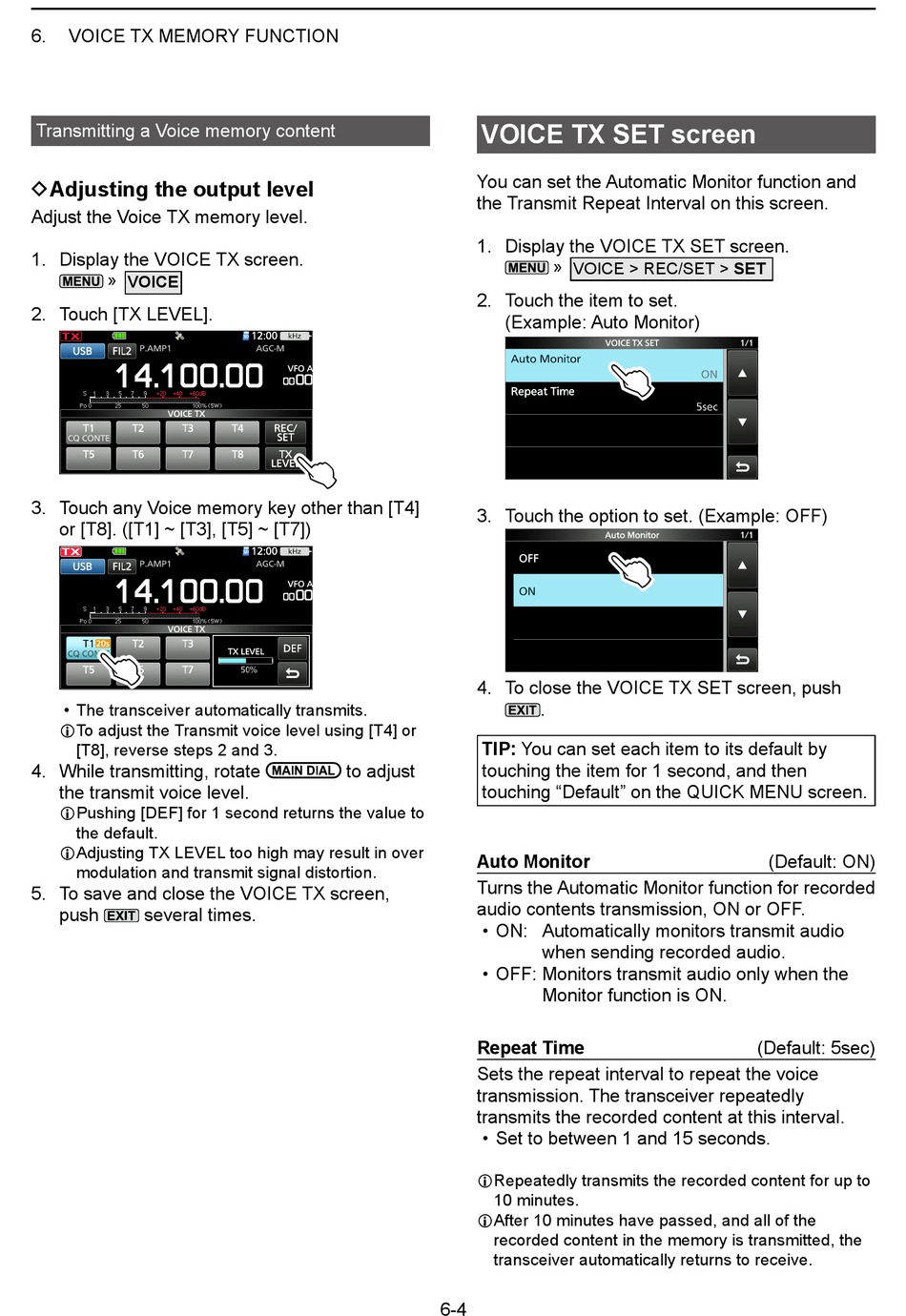

Dadjusting The Output Level; Voice Tx Set Screen - Icom IC-705 Advanced Manual

6. VOICE TX MEMORY FUNCTION
Transmitting a Voice memory content

DAdjusting the output level

Adjust the Voice TX memory level.
1. Display the VOICE TX screen.
» VOICE
2. Touch [TX LEVEL].
3. Touch any Voice memory key other than [T4]
or [T8]. ([T1] ~ [T3], [T5] ~ [T7])
• The transceiver automatically transmits.
LTo adjust the Transmit voice level using [T4] or
[T8], reverse steps 2 and 3.
4. While transmitting, rotate
the transmit voice level.
LPushing [DEF] for 1 second returns the value to
the default.
LAdjusting TX LEVEL too high may result in over
modulation and transmit signal distortion.
5. To save and close the VOICE TX screen,
push several times.

VOICE TX SET screen

You can set the Automatic Monitor function and
the Transmit Repeat Interval on this screen.
1. Display the VOICE TX SET screen.
2. Touch the item to set.
(Example: Auto Monitor)
3. Touch the option to set. (Example: OFF)
4. To close the VOICE TX SET screen, push
TIP: You can set each item to its default by
touching the item for 1 second, and then
to adjust
touching "Default" on the QUICK MENU screen.
Auto Monitor
Turns the Automatic Monitor function for recorded
audio contents transmission, ON or OFF.
• ON: Automatically monitors transmit audio
• OFF: Monitors transmit audio only when the
Repeat Time
Sets the repeat interval to repeat the voice
transmission. The transceiver repeatedly
transmits the recorded content at this interval.
• Set to between 1 and 15 seconds.
LRepeatedly transmits the recorded content for up to
10 minutes.
LAfter 10 minutes have passed, and all of the
recorded content in the memory is transmitted, the
transceiver automatically returns to receive.
6-4
» VOICE > REC/SET > SET
.
when sending recorded audio.
Monitor function is ON.
(Default: ON)
(Default: 5sec)
