15. ABOUT THE DV GATEWAY FUNCTION

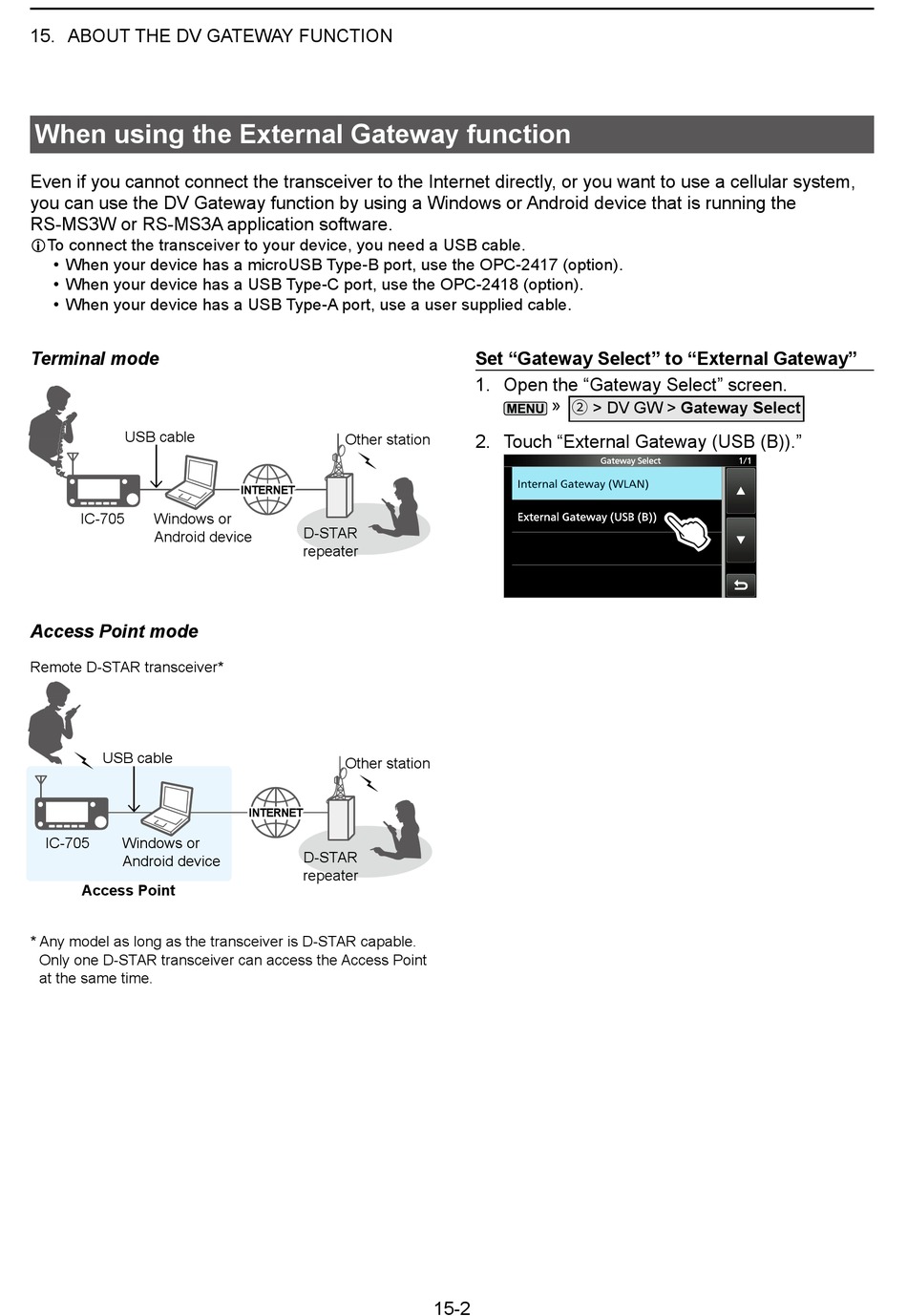

When using the External Gateway function

Even if you cannot connect the transceiver to the Internet directly, or you want to use a cellular system,
you can use the DV Gateway function by using a Windows or Android device that is running the
RS-MS3W or RS-MS3A application software.
LTo connect the transceiver to your device, you need a USB cable.
• When your device has a microUSB Type-B port, use the OPC-2417 (option).
• When your device has a USB Type-C port, use the OPC-2418 (option).
• When your device has a USB Type-A port, use a user supplied cable.
Terminal mode
USB cable
IC-705 Windows or
Android device
Access Point mode
Remote D-STAR transceiver*
USB cable
IC-705 Windows or
Android device
Access Point
* Any model as long as the transceiver is D-STAR capable.
Only one D-STAR transceiver can access the Access Point
at the same time.
Other station
INTERNET INTERNET
D-STAR
repeater
Other station
INTERNET INTERNET
D-STAR
repeater
Set "Gateway Select" to "External Gateway"
1. Open the "Gateway Select" screen.
» 2 > DV GW > Gateway Select
2. Touch "External Gateway (USB (B))."
15-2
