11
SCANS

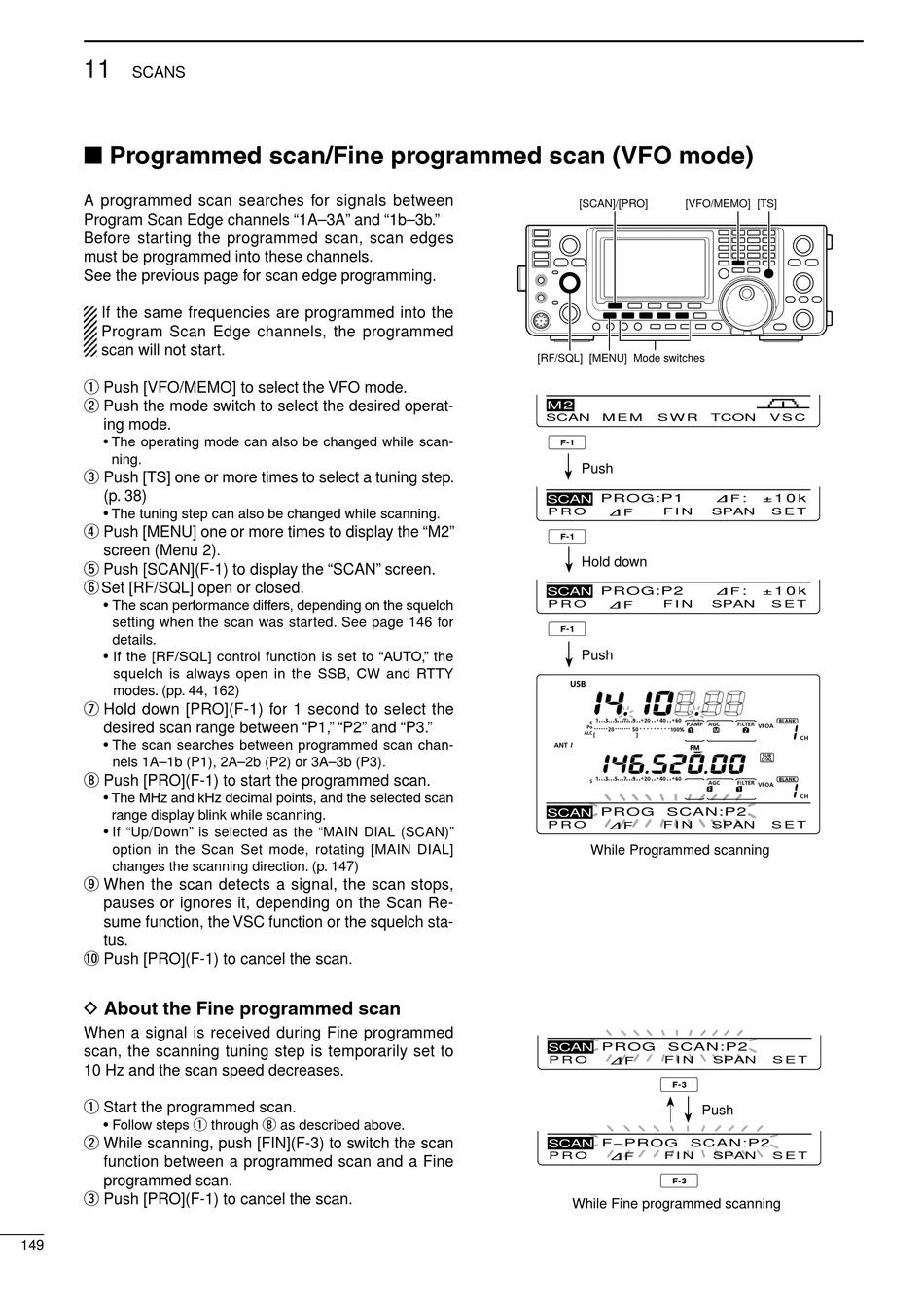

■ Programmed scan/Fine programmed scan (VFO mode)

A programmed scan searches for signals between
Program Scan Edge channels "1A–3A" and "1b–3b."
Before starting the programmed scan, scan edges
must be programmed into these channels.
See the previous page for scan edge programming.
If the same frequencies are programmed into the
Program Scan Edge channels, the programmed
scan will not start.
q Push [VFO/MEMO] to select the VFO mode.
w Push the mode switch to select the desired operat-
ing mode.
• The operating mode can also be changed while scan-
ning.
e Push [TS] one or more times to select a tuning step.
(p. 38)
• The tuning step can also be changed while scanning.
r Push [MENU] one or more times to display the "M2"
screen (Menu 2).
t Push [SCAN](F-1) to display the "SCAN" screen.
y Set [RF/SQL] open or closed.
• The scan performance differs, depending on the squelch
setting when the scan was started. See page 146 for
details.
• If the [RF/SQL] control function is set to "AUTO," the
squelch is always open in the SSB, CW and RTTY
modes. (pp. 44, 162)
u Hold down [PRO](F-1) for 1 second to select the
desired scan range between "P1," "P2" and "P3."
• The scan searches between programmed scan chan-
nels 1A–1b (P1), 2A–2b (P2) or 3A–3b (P3).
i Push [PRO](F-1) to start the programmed scan.
• The MHz and kHz decimal points, and the selected scan
range display blink while scanning.
• If "Up/Down" is selected as the "MAIN DIAL (SCAN)"
option in the Scan Set mode, rotating [MAIN DIAL]
changes the scanning direction. (p. 147)
o When the scan detects a signal, the scan stops,
pauses or ignores it, depending on the Scan Re-
sume function, the VSC function or the squelch sta-
tus.
!0 Push [PRO](F-1) to cancel the scan.

D About the Fine programmed scan

When a signal is received during Fine programmed
scan, the scanning tuning step is temporarily set to
10 Hz and the scan speed decreases.
q Start the programmed scan.
• Follow steps q through i as described above.
w While scanning, push [FIN](F-3) to switch the scan
function between a programmed scan and a Fine
programmed scan.
e Push [PRO](F-1) to cancel the scan.
149
[SCAN]/[PRO] [VFO/MEMO] [TS]
[RF/SQL] [MENU] Mode switches
M2
SCAN M E M S W R TCON
Push
PROG:P1
SCAN
∂ F
P R O F I N SPAN
Hold down
PROG:P2
SCAN
∂ F
P R O F I N SPAN
Push
PROG SCAN:P2
SCAN
∂ F
P R O F I N SPAN
While Programmed scanning
PROG SCAN:P2
SCAN
∂ F
P R O F I N
Push
F−PROG SCAN:P2
SCAN
∂ F
P R O F I N
While Fine programmed scanning
V S C
∂ F ±
: 1 0 k
S E T
∂ F ±
: 1 0 k
S E T
S E T
SPAN S E T
SPAN S E T
