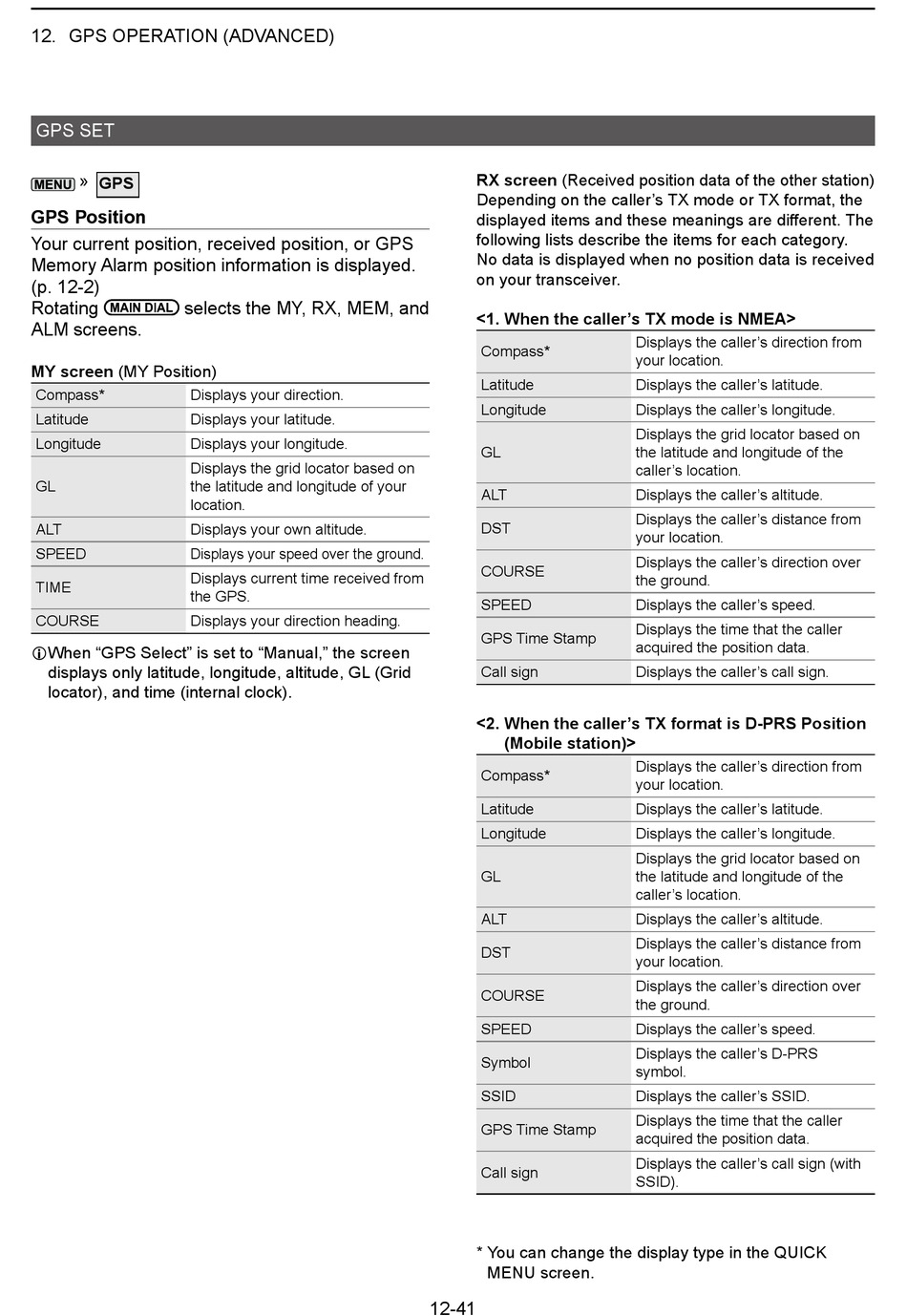

12. GPS OPERATION (ADVANCED)
GPS SET
» GPS
GPS Position
Your current position, received position, or GPS
Memory Alarm position information is displayed.
(p. 12-2)
Rotating selects the MY, RX, MEM, and
ALM screens.
MY screen (MY Position)
Compass* Displays your direction.
Latitude Displays your latitude.
Longitude Displays your longitude.
Displays the grid locator based on
GL the latitude and longitude of your
location.
ALT Displays your own altitude.
SPEED Displays your speed over the ground.
Displays current time received from
TIME
the GPS.
COURSE Displays your direction heading.
LWhen "GPS Select" is set to "Manual," the screen
displays only latitude, longitude, altitude, GL (Grid
locator), and time (internal clock).
RX screen (Received position data of the other station)
Depending on the caller's TX mode or TX format, the
displayed items and these meanings are different. The
following lists describe the items for each category.
No data is displayed when no position data is received
on your transceiver.
<1� When the caller's TX mode is NMEA>
Compass*
Latitude
Longitude
GL
ALT
DST
COURSE
SPEED
GPS Time Stamp
Call sign
<2� When the caller's TX format is D-PRS Position
(Mobile station)>
Compass*
Latitude
Longitude
GL
ALT
DST
COURSE
SPEED
Symbol
SSID
GPS Time Stamp
Call sign
* You can change the display type in the QUICK
MENU screen.
12-41
Displays the caller's direction from
your location.
Displays the caller's latitude.
Displays the caller's longitude.
Displays the grid locator based on
the latitude and longitude of the
caller's location.
Displays the caller's altitude.
Displays the caller's distance from
your location.
Displays the caller's direction over
the ground.
Displays the caller's speed.
Displays the time that the caller
acquired the position data.
Displays the caller's call sign.
Displays the caller's direction from
your location.
Displays the caller's latitude.
Displays the caller's longitude.
Displays the grid locator based on
the latitude and longitude of the
caller's location.
Displays the caller's altitude.
Displays the caller's distance from
your location.
Displays the caller's direction over
the ground.
Displays the caller's speed.
Displays the caller's D-PRS
symbol.
Displays the caller's SSID.
Displays the time that the caller
acquired the position data.
Displays the caller's call sign (with
SSID).
