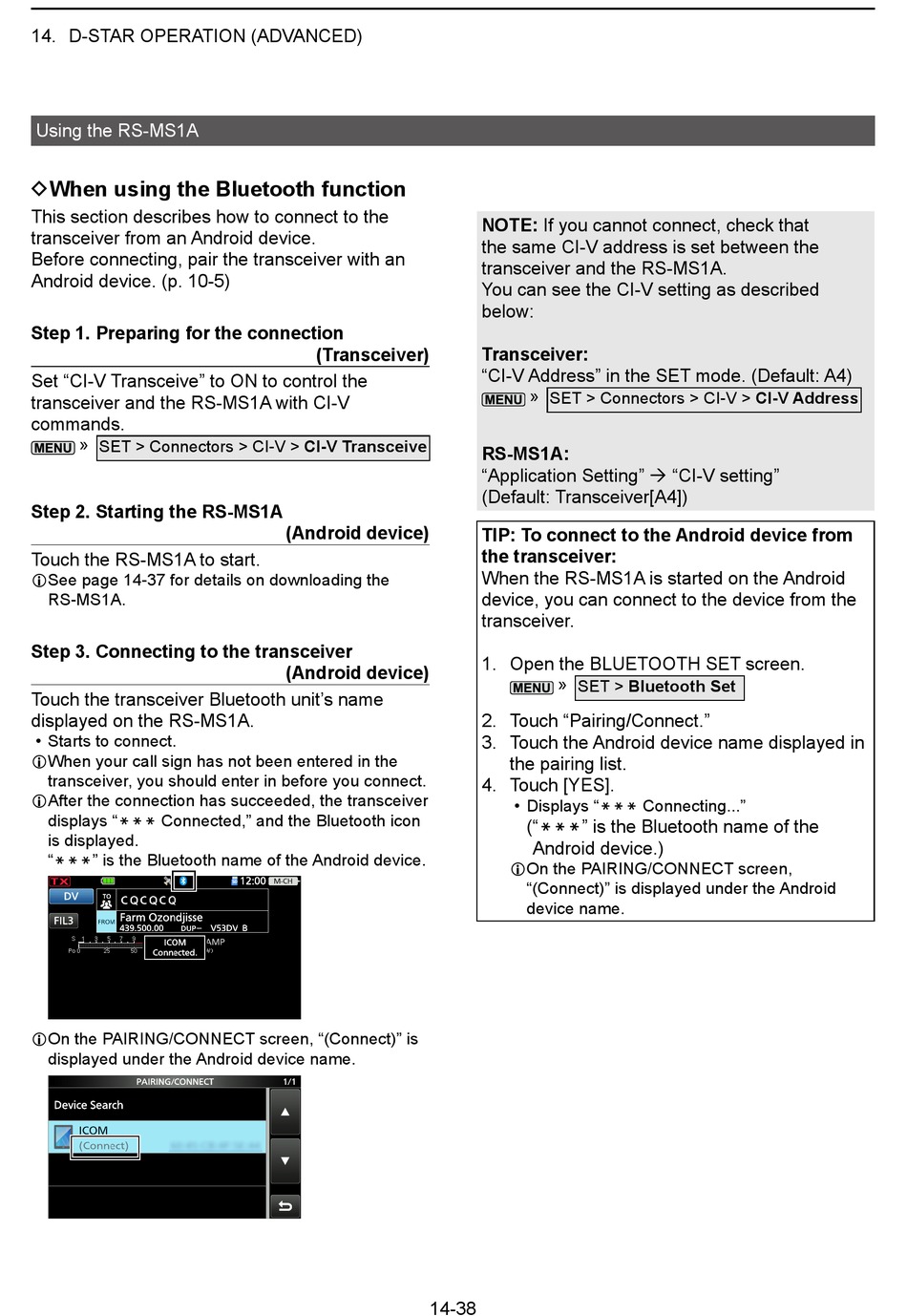

Dwhen Using The Bluetooth Function - Icom IC-705 Advanced Manual

14. D-STAR OPERATION (ADVANCED)
Using the RS-MS1A

DWhen using the Bluetooth function

This section describes how to connect to the
transceiver from an Android device.
Before connecting, pair the transceiver with an
Android device. (p. 10-5)
Step 1� Preparing for the connection
Set "CI-V Transceive" to ON to control the
transceiver and the RS-MS1A with CI-V
commands.
» SET > Connectors > CI-V > CI-V Transceive
Step 2� Starting the RS-MS1A
Touch the RS-MS1A to start.
LSee page 14-37 for details on downloading the
RS-MS1A.
Step 3� Connecting to the transceiver
Touch the transceiver Bluetooth unit's name
displayed on the RS-MS1A.
• Starts to connect.
LWhen your call sign has not been entered in the
transceiver, you should enter in before you connect.
LAfter the connection has succeeded, the transceiver
displays "MMM Connected," and the Bluetooth icon
is displayed.
"MMM" is the Bluetooth name of the Android device.
LOn the PAIRING/CONNECT screen, "(Connect)" is
displayed under the Android device name.
(Transceiver)
(Android device)
(Android device)
14-38
NOTE: If you cannot connect, check that
the same CI-V address is set between the
transceiver and the RS-MS1A.
You can see the CI-V setting as described
below:
Transceiver:
"CI-V Address" in the SET mode. (Default: A4)
» SET > Connectors > CI-V > CI-V Address
RS-MS1A:
"Application Setting"  "CI-V setting"
(Default: Transceiver[A4])
TIP: To connect to the Android device from
the transceiver:
When the RS-MS1A is started on the Android
device, you can connect to the device from the
transceiver.
1. Open the BLUETOOTH SET screen.
» SET > Bluetooth Set
2. Touch "Pairing/Connect."
3. Touch the Android device name displayed in
the pairing list.
4. Touch [YES].
• Displays "MMM Connecting..."
( "MMM" is the Bluetooth name of the
Android device.)
LOn the PAIRING/CONNECT screen,
"(Connect)" is displayed under the Android
device name.
