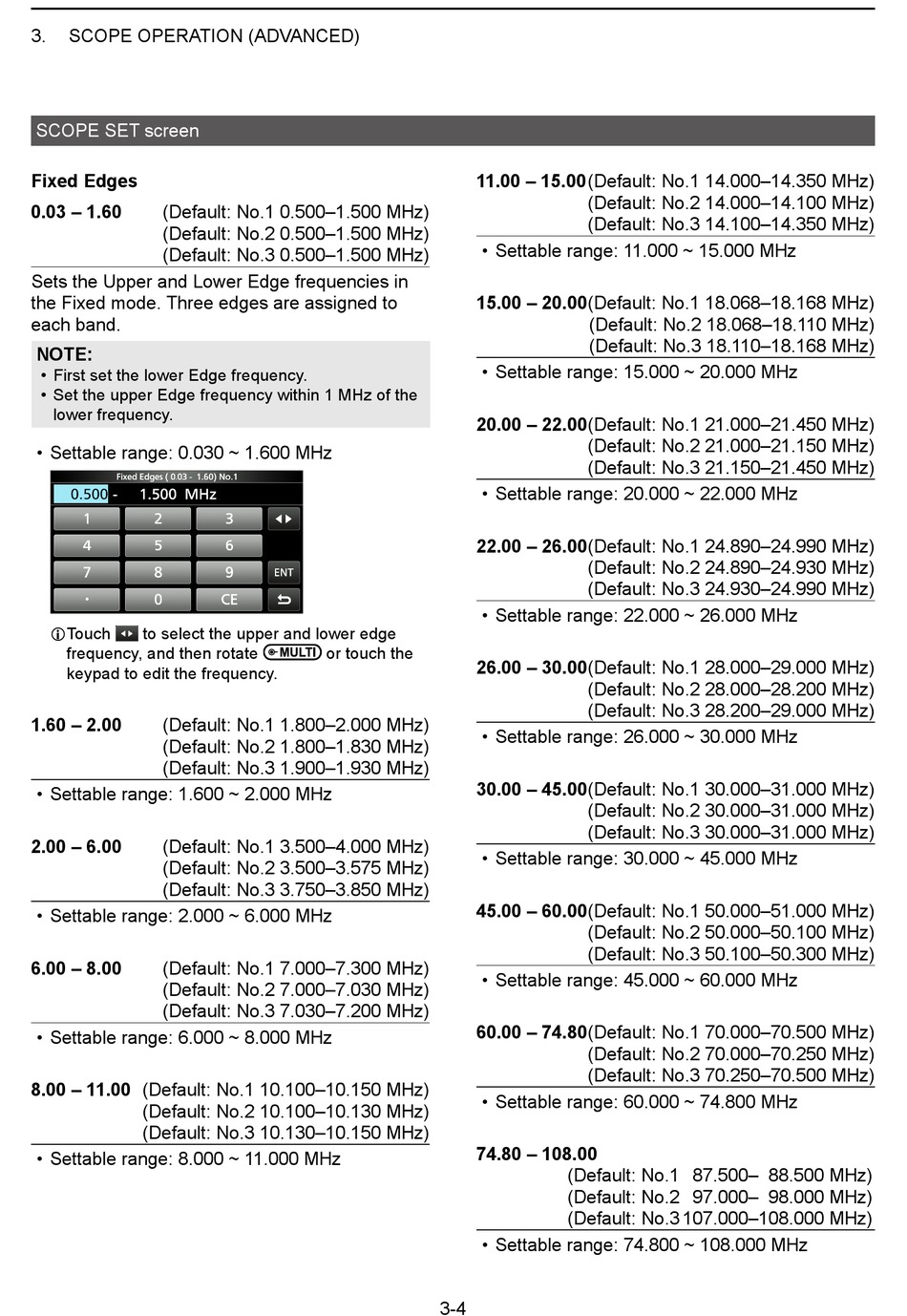

Icom IC-705 Advanced Manual page 34

3. SCOPE OPERATION (ADVANCED)
SCOPE SET screen
Fixed Edges
0�03 – 1�60 (Default: No.1 0.500–1.500 MHz)
(Default: No.2 0.500–1.500 MHz)
(Default: No.3 0.500–1.500 MHz)
Sets the Upper and Lower Edge frequencies in
the Fixed mode. Three edges are assigned to
each band.
NOTE:
• First set the lower Edge frequency.
• Set the upper Edge frequency within 1 MHz of the
lower frequency.
• Settable range: 0.030 ~ 1.600 MHz
to select the upper and lower edge
LTouch
frequency, and then rotate
keypad to edit the frequency.
1�60 – 2�00 (Default: No.1 1.800–2.000 MHz)
(Default: No.2 1.800–1.830 MHz)
(Default: No.3 1.900–1.930 MHz)
• Settable range: 1.600 ~ 2.000 MHz
2�00 – 6�00 (Default: No.1 3.500–4.000 MHz)
(Default: No.2 3.500–3.575 MHz)
(Default: No.3 3.750–3.850 MHz)
• Settable range: 2.000 ~ 6.000 MHz
6�00 – 8�00 (Default: No.1 7.000–7.300 MHz)
(Default: No.2 7.000–7.030 MHz)
(Default: No.3 7.030–7.200 MHz)
• Settable range: 6.000 ~ 8.000 MHz
8�00 – 11�00 (Default: No.1 10.100–10.150 MHz)
(Default: No.2 10.100–10.130 MHz)
(Default: No.3 10.130–10.150 MHz)
• Settable range: 8.000 ~ 11.000 MHz
11�00 – 15�00 (Default: No.1 14.000–14.350 MHz)
• Settable range: 11.000 ~ 15.000 MHz
15�00 – 20�00 (Default: No.1 18.068–18.168 MHz)
• Settable range: 15.000 ~ 20.000 MHz
20�00 – 22�00 (Default: No.1 21.000–21.450 MHz)
• Settable range: 20.000 ~ 22.000 MHz
22�00 – 26�00 (Default: No.1 24.890–24.990 MHz)
• Settable range: 22.000 ~ 26.000 MHz
or touch the
26�00 – 30�00 (Default: No.1 28.000–29.000 MHz)
• Settable range: 26.000 ~ 30.000 MHz
30�00 – 45�00 (Default: No.1 30.000–31.000 MHz)
• Settable range: 30.000 ~ 45.000 MHz
45�00 – 60�00 (Default: No.1 50.000–51.000 MHz)
• Settable range: 45.000 ~ 60.000 MHz
60�00 – 74�80 (Default: No.1 70.000–70.500 MHz)
• Settable range: 60.000 ~ 74.800 MHz
74�80 – 108�00
• Settable range: 74.800 ~ 108.000 MHz
3-4
(Default: No.2 14.000–14.100 MHz)
(Default: No.3 14.100–14.350 MHz)
(Default: No.2 18.068–18.110 MHz)
(Default: No.3 18.110–18.168 MHz)
(Default: No.2 21.000–21.150 MHz)
(Default: No.3 21.150–21.450 MHz)
(Default: No.2 24.890–24.930 MHz)
(Default: No.3 24.930–24.990 MHz)
(Default: No.2 28.000–28.200 MHz)
(Default: No.3 28.200–29.000 MHz)
(Default: No.2 30.000–31.000 MHz)
(Default: No.3 30.000–31.000 MHz)
(Default: No.2 50.000–50.100 MHz)
(Default: No.3 50.100–50.300 MHz)
(Default: No.2 70.000–70.250 MHz)
(Default: No.3 70.250–70.500 MHz)
(Default: No.1 87.500– 88.500 MHz)
(Default: No.2 97.000– 98.000 MHz)
(Default: No.3 107.000– 108.000 MHz)
